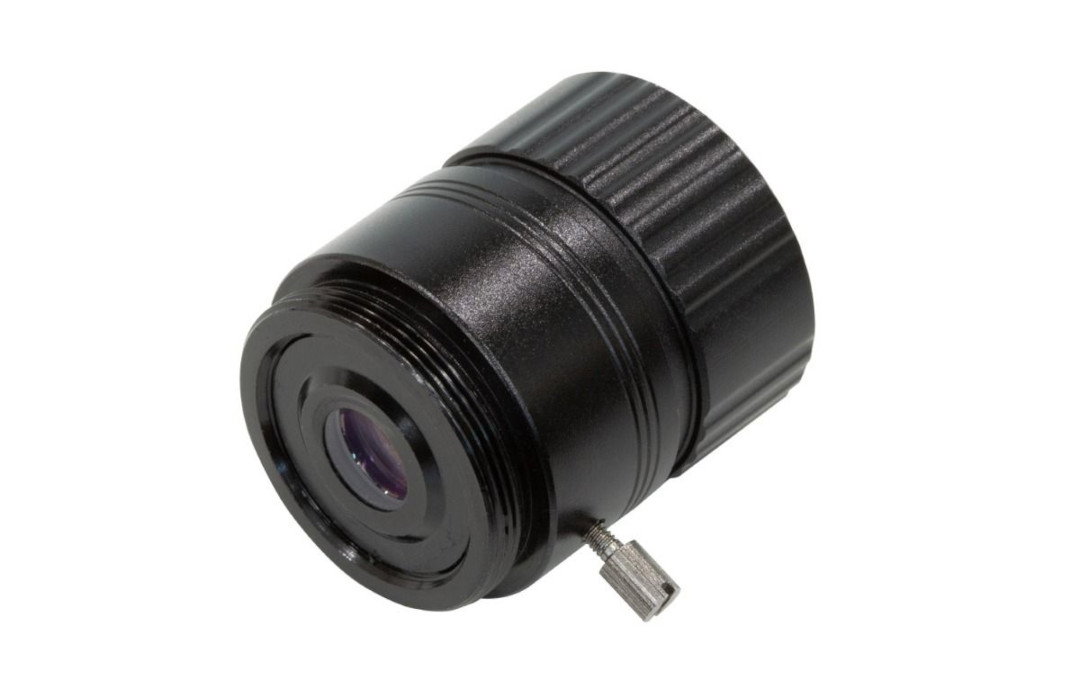

Product description: CS-Mount 6mm lens - ArduCam LN029
ArduCam lens designed to work with high quality Raspberry Pi HQ camera. It features a 6mm focal length and a CS-Mount type mounting method by which it connects to the camera. The lens has an aperture of F1.4. The viewing angle of the lens is 65° with 1/2.3" format Raspberry Pi HQ camera and 37° with Raspberry Pi V1 / V2 camera.
Lens with a focal length of 6 mm.
Lens with CS-Mount type.Main features of the lens
- Works with Raspberry Pi HQ 12 Mpx camera. A lens with decent image quality, no shadows or dark corners.
- Focal length of 6mm and manual focus configuration.
- It has a CS-Mount type mounting method.
Lens specification
- Model: CS1806ZM06
- Optical Format: 1/2.3"
- Focal length: 6 mm
- Aperture: F1.4
- Viewing angle: 65° on 1/2.3" format Raspberry Pi HQ camera and 37° on Raspberry Pi V1 / V2 camera
- Focus type: manual
- Rear focal length: 8.03 mm
- Mounting: C-Mount
- Minimum distance to the object: 0.3 m
- Dimensions: Φ28 x 28.5 mm
- Weight: 47g

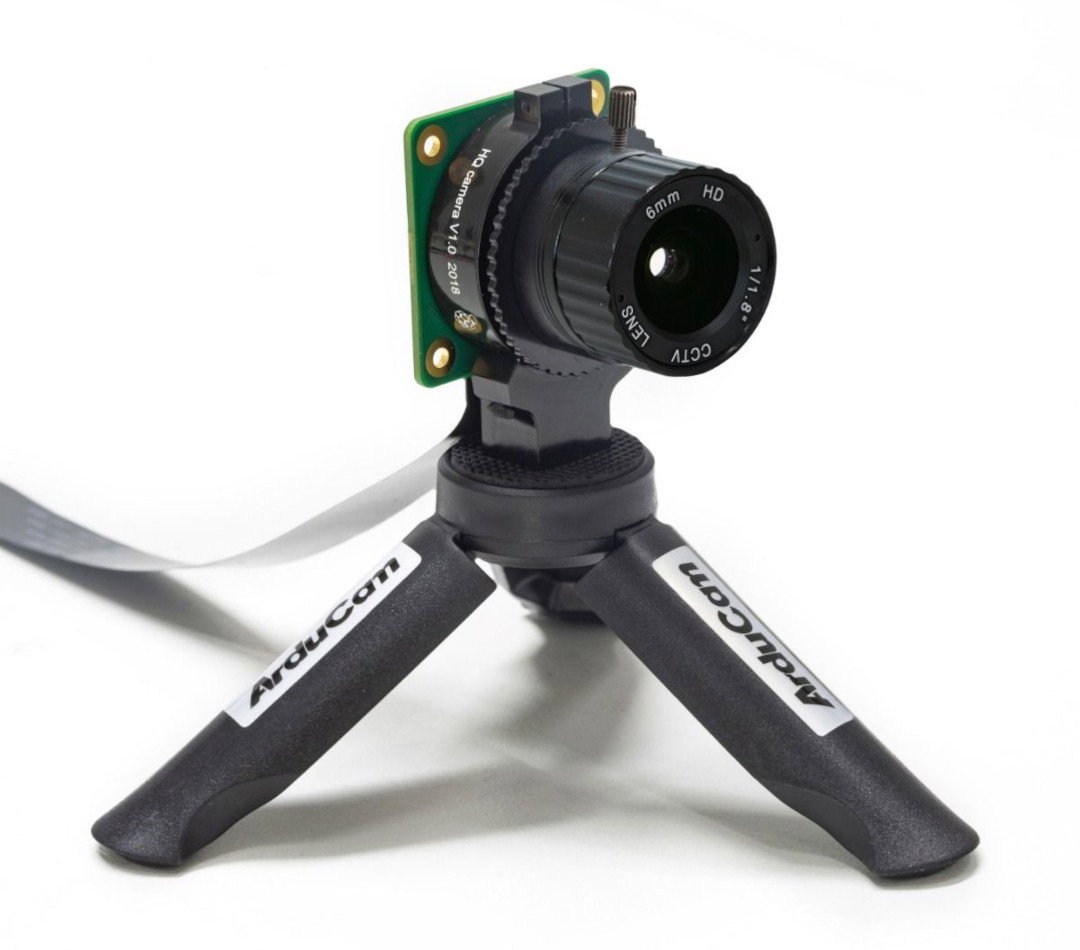

Lens with 6mm focal length designed for Raspberry Pi HQ and Raspberry Pi V1 / V2 camera. Official HQ camera and Raspberry Pi minicomputer can be purchased separately.
