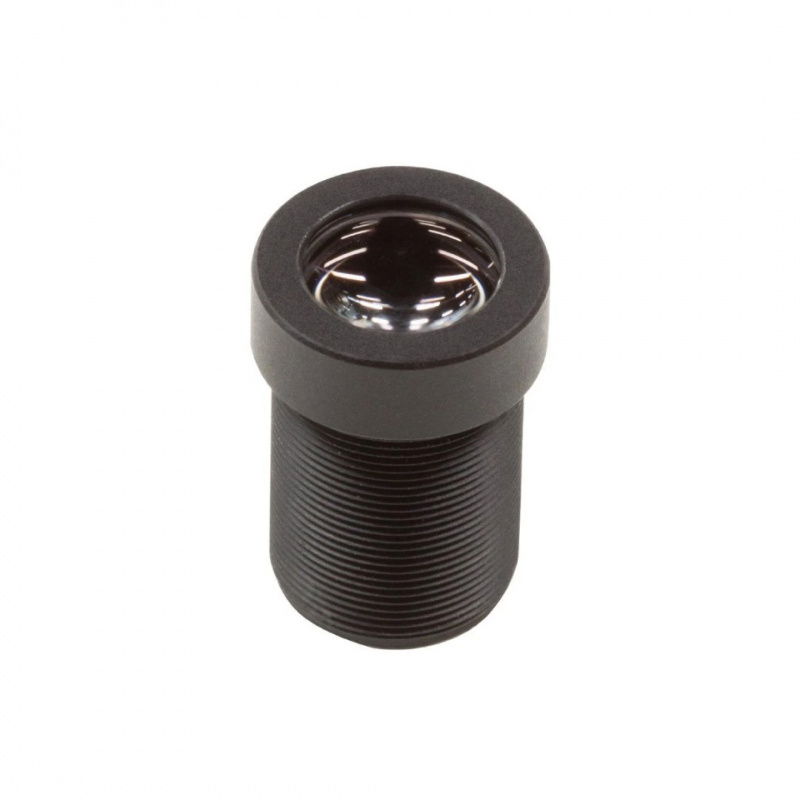

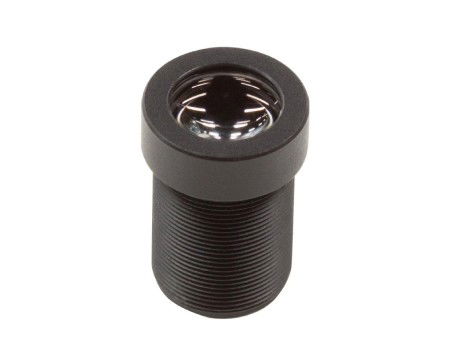

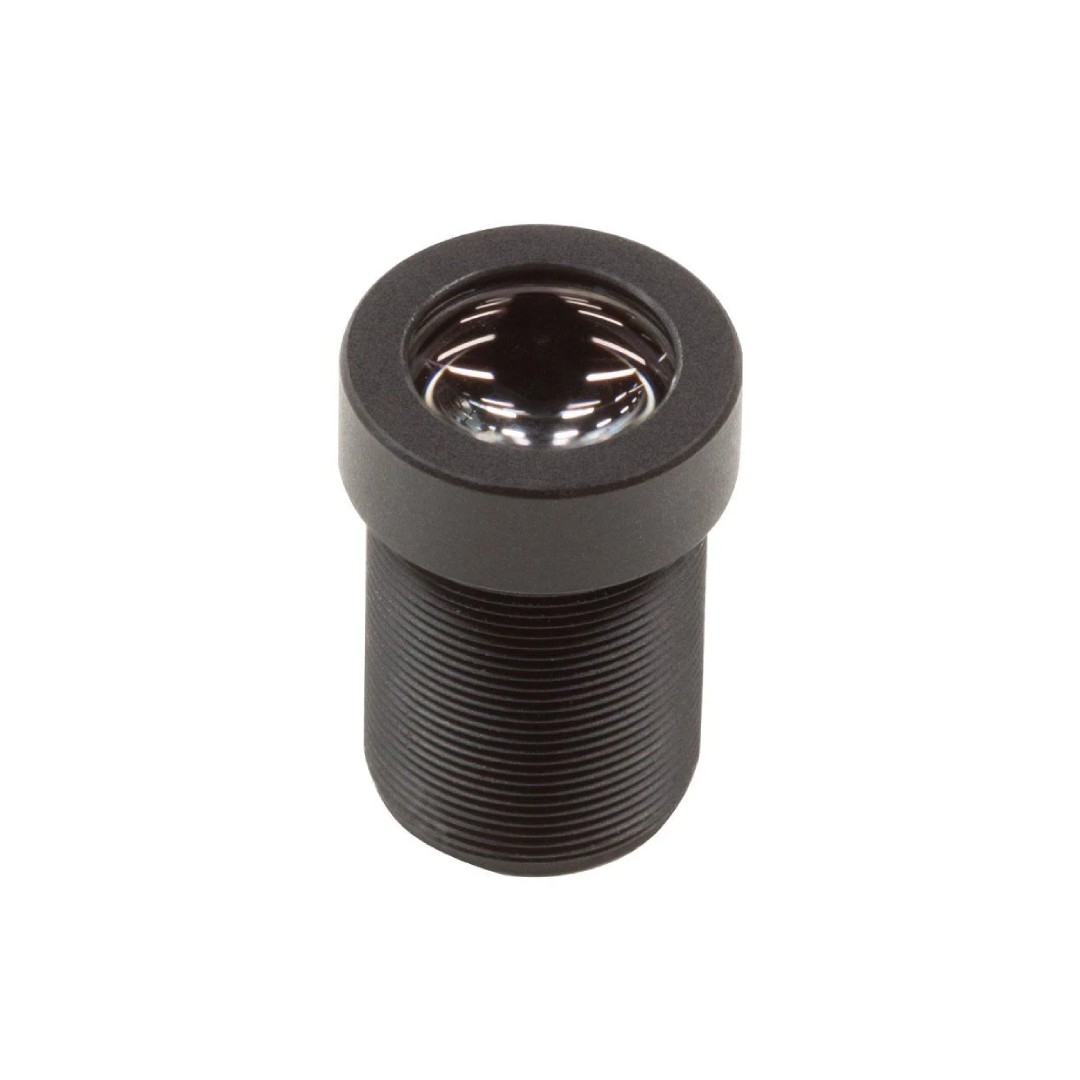

Product description: M1825ZH02S M12 25mm 1/1.8'' Low Distortion Lens - for ArduCam Cameras - ArduCam LN075
The M1825ZH02S from ArduCam is a precision-engineered M12 lens that offers exceptional image quality and minimal distortion (< -0.05%). Its design has been optimized to work with large optical format image sensors , making it ideal for high-resolution applications such as 4K cameras and surveillance systems. The lens provides a viewing angle of 15° on a 1/1.8'' sensor and 14° on a 1/2.3'' sensor . With a minimum focusing distance (MOD) of 0.1 m , it is possible to obtain sharp images even from very close distances. The lens is also resistant to infrared light thanks to the use of a 650 nm IR filter .
M1825ZH02S M12 25mm 1/1.8'' Low Distortion Lens - for ArduCam Cameras - ArduCam LN075.
The lens is ideal for 4K cameras with large optical format sensors.
Main features of the lens
- High Resolution : Supports 8MPx and higher image sensors
- Low distortion : < -0.05% image distortion
- Wide field of view : 14° on 1/2.3'' sensor and 15° on 1/1.8'' sensor
- High quality optics : 25 mm focal length with F2.8 aperture
- Minimum Focus Distance (MOD) : 0.1 m
- IR-resistant design : 650nm IR filters provide immunity to infrared light
- M12 mount : compatible with a wide range of cameras with M12 x P0.5 thread
Practical applications
The M1825ZH02S lens from ArduCam is an ideal solution for many applications that require high image quality. It works great in monitoring systems, image recognition, robotics and wherever precise image quality is important. It works perfectly with 4K cameras and other recording devices.
Technical specifications of the lens
- Model: M1825ZH02S
- Resolution: 8 MPx and more
- Optical format: approx. 9 mm image circle (up to 1/1.8'')
- TV Distortion: < -0.05%
- Effective focal length: 25 mm
- Back focal length: 11.36 mm
- Field of View (HFOV): 15° at 1/1.8'', 14° at 1/2.3''
- IR Filter: 650nm
- Construction: 4G5E+IR
- Aperture: F2.8
- Minimum Focus Distance (MOD): 0.1 m
- Mounting: M12 x P0.5
- Dimensions: 14 x 20.25 mm
- Weight: 6.5 g
Kit Contents
- 1x M1825ZH02S Lens
- 1x M12 Mount Adapter

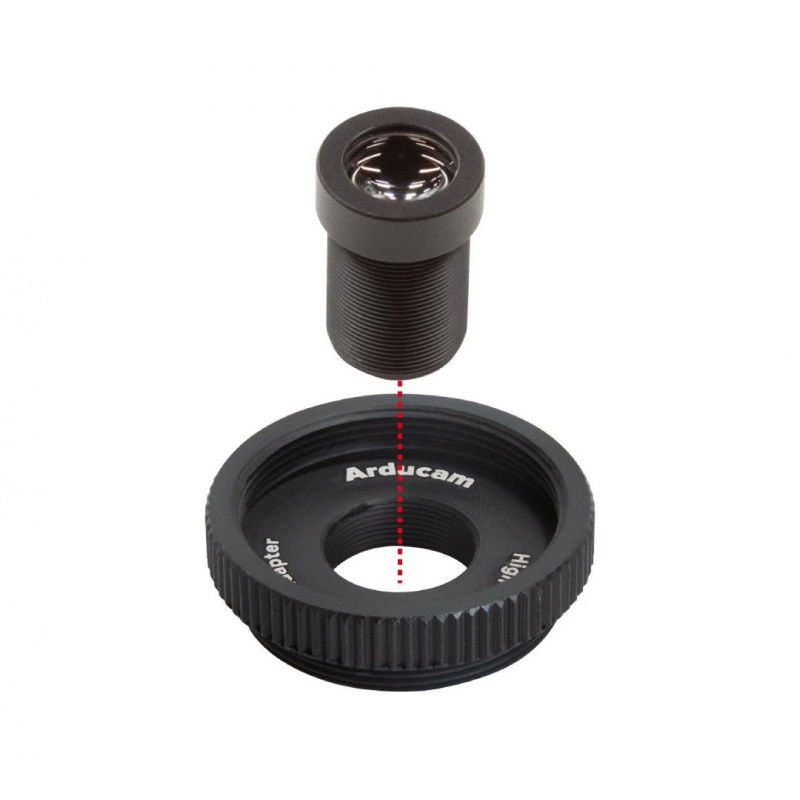

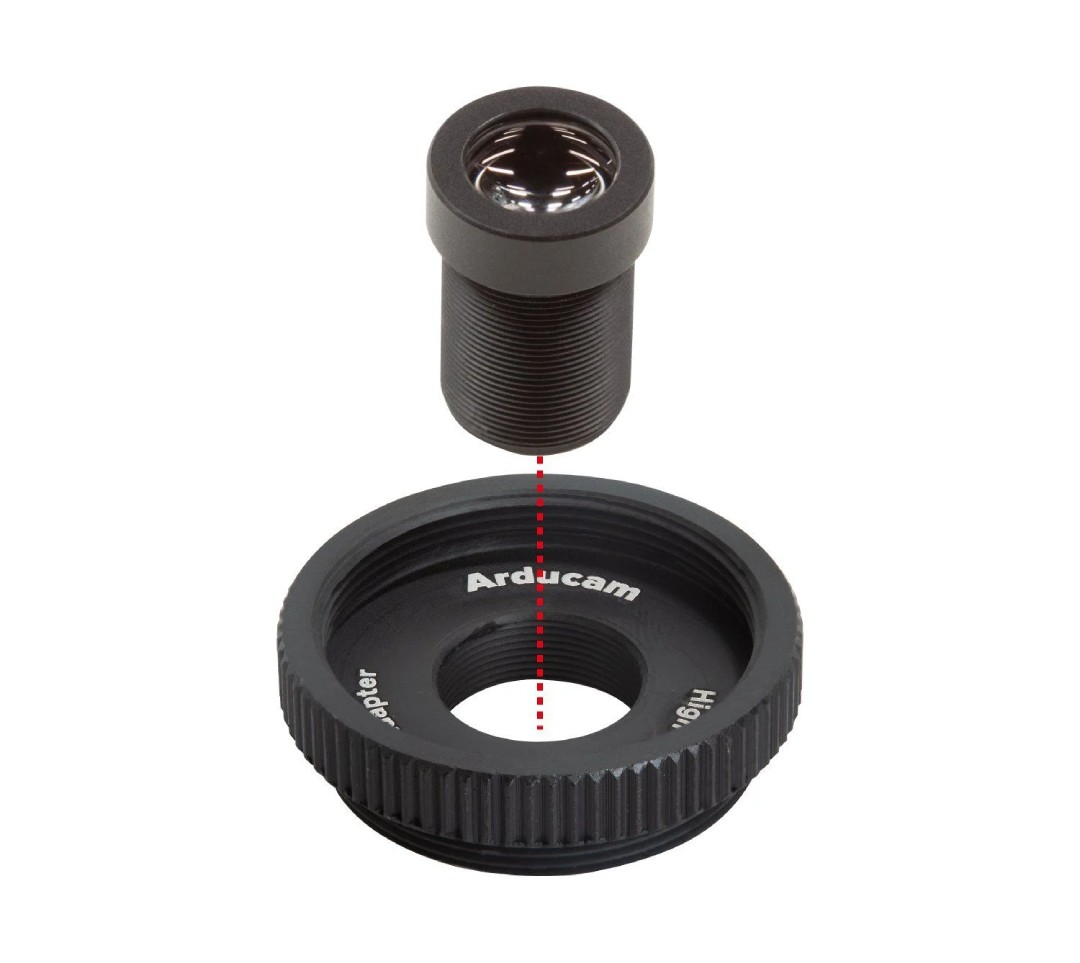

The set includes an adapter for mounting the lens.
