Description: Lens M3020225H10 M12 mount - for ArduCam cameras - ArduCam LN017.
M30225H10 lens for ArduCamcameraswithM12mounting. It has2.3 mmfocal length, 1/3" format. The viewing angle for 1/3" sensor is 170° / 120° / 80°, whereas for Raspberry Pi 1/4" camera it is 105° with 2.3 mm focal length.
Lens specifications
- Model:M30225H10
- Focal length: 2.3 mm
- Focal length in 35 mm format: 14 mm
- Viewing angle for 1/3" sensor format:170° / 120° / 80°
- Viewing angle for Raspberry Pi 1/4" camera format: 105°
- Installation: M12
- Handle length: 13 mm
- M.O.D (minimum distance from object): 0,2 m
- Dimensions: 14 x 14 mm
- Weight: 3 g

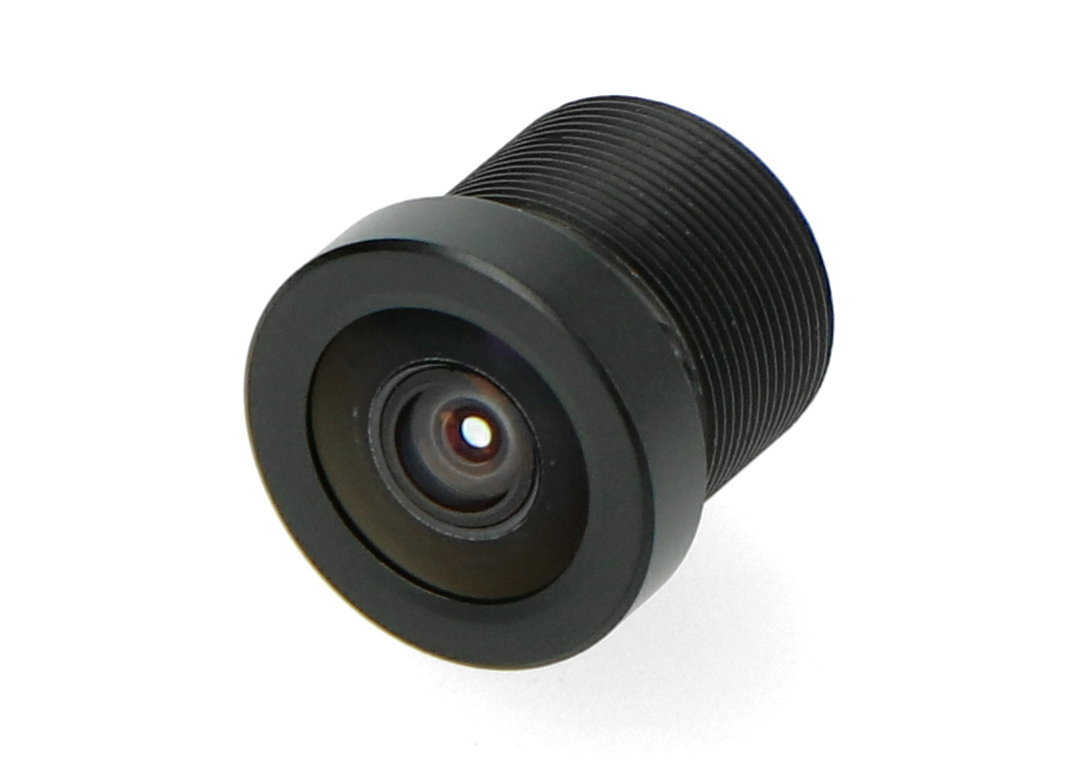

ArduCam M30225H10 lens.
