Description
Sensor that uses IR to measure temperature. It works in the range from -70 °C to 380 °C for object temperature or -40 °C to 85 °C for sensor temperature. It communicates via the I2C bus. The supply voltage ranges from 3.0 V to 5 V.
Pins

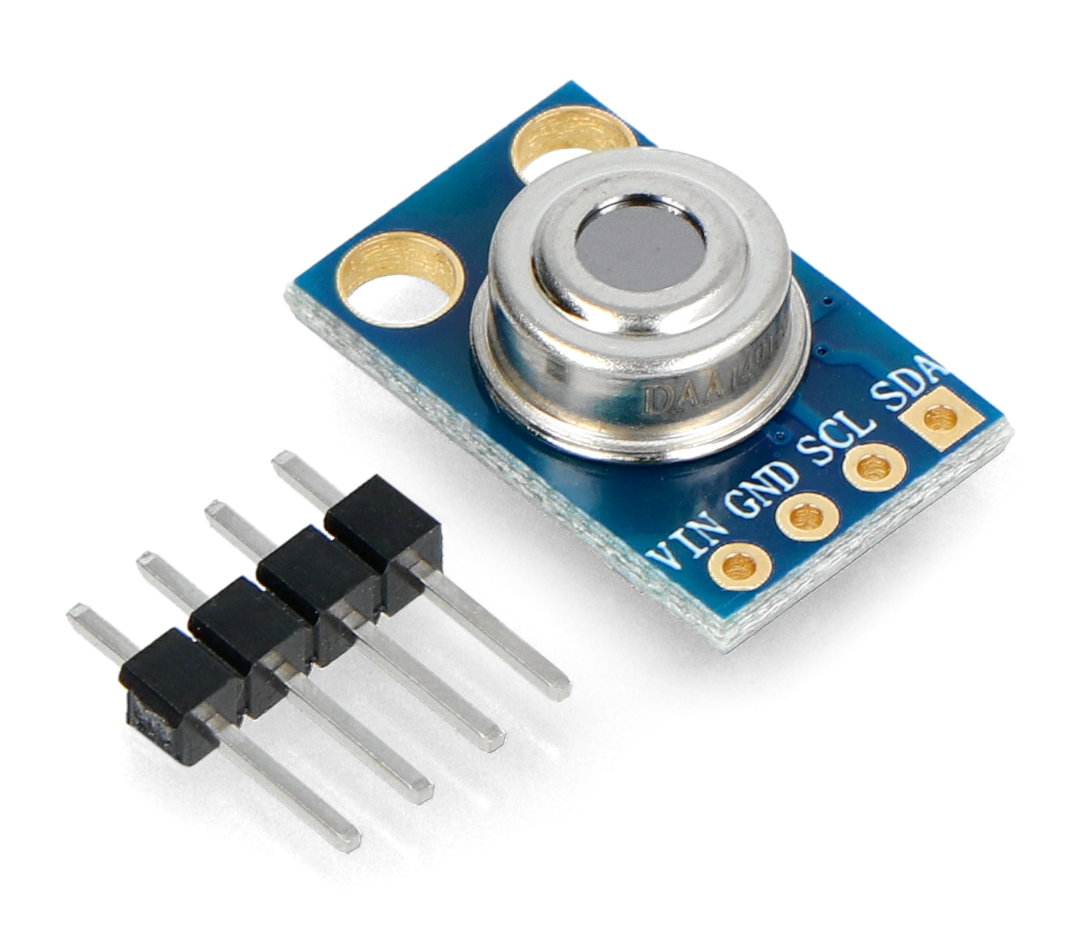

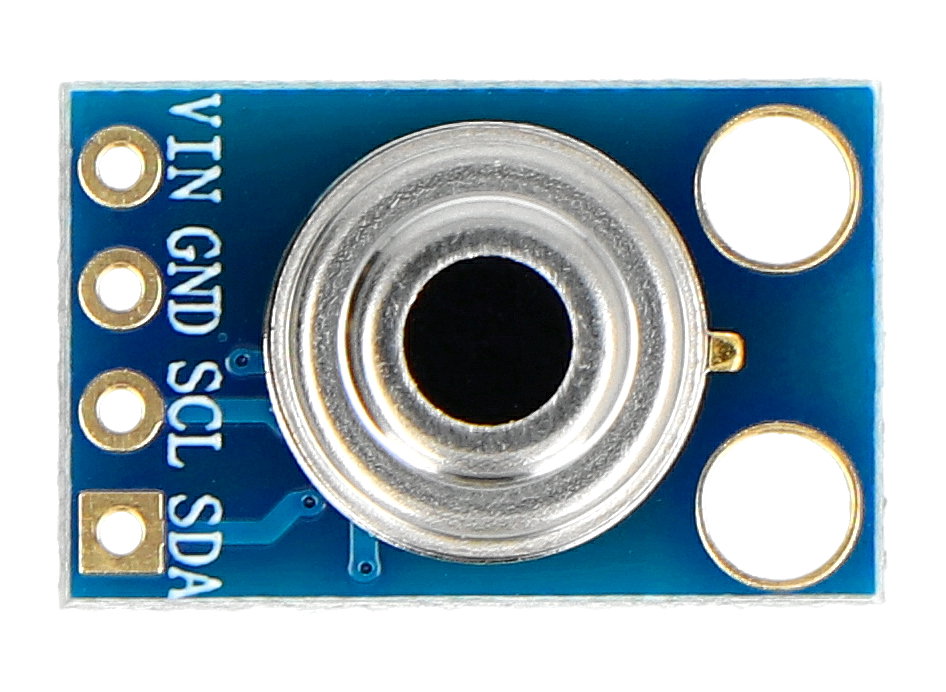

The sensor has four main pins for the installation of connectors of goldpin type - pitch of 2.54 mm (strap included in the set for self-assembly).
| Name | Description |
|---|---|
| VIN | Supply voltage from 3.0 V to 5.0 V. |
| GND | The ground of the system. |
| SCL | Clock line of the I2C bus (TWI). |
| SDA | The data line of the I2C bus (TWI). |
The differences between the individual models of the thermometers from MLX90614 series, can be found inthe array.
|
The product is compatible with Arduino On the bildr.org, you can find a sample project with the program forArduino. |
Settings
- Version: MLX90614ESF-BAA-000-TU-ND
- Supply voltage from 3.0 to 5 V
- Measuring range:
- from -70 °C to 380 °C for object temperature
- from -40 °C to 85 °C for sensor temperature
- Resolution:
- 0,02 °C for I2C, SMBus, TWI interface
- 0,14 °C for PWM interface
- Communication: PWM or I2C (SMBus, TWI)
- Accuracy: up to 0.5 °C in the range from 0 to 50 °C
