Product description: Holding electromagnet 12 V 1 W 3 kgf
A holding electromagnet, which, when given avoltagepulseof 12 V, maintains a mass of3 kg(at standard ground acceleration of 9.8 m/s2). The device takes about 170 mA, its rated power is 2 W. The magnet has a mounting hole with M4 thread. Product dimensions are 20 x 8 x 15 mm.The electromagnethas two cables of about 30 cm length, with the insulation removed at the ends. The electromagnet is very often used as an executive element, controlled by one of the popular microcontrollers (e.g.Arduino). It should be remembered, however, that due to too high power consumption it should not be connected directly to the controller pins. It may lead to damage of the system. For proper operation one of the following elements should be used:relay,optoisolatorortransistor amplifier

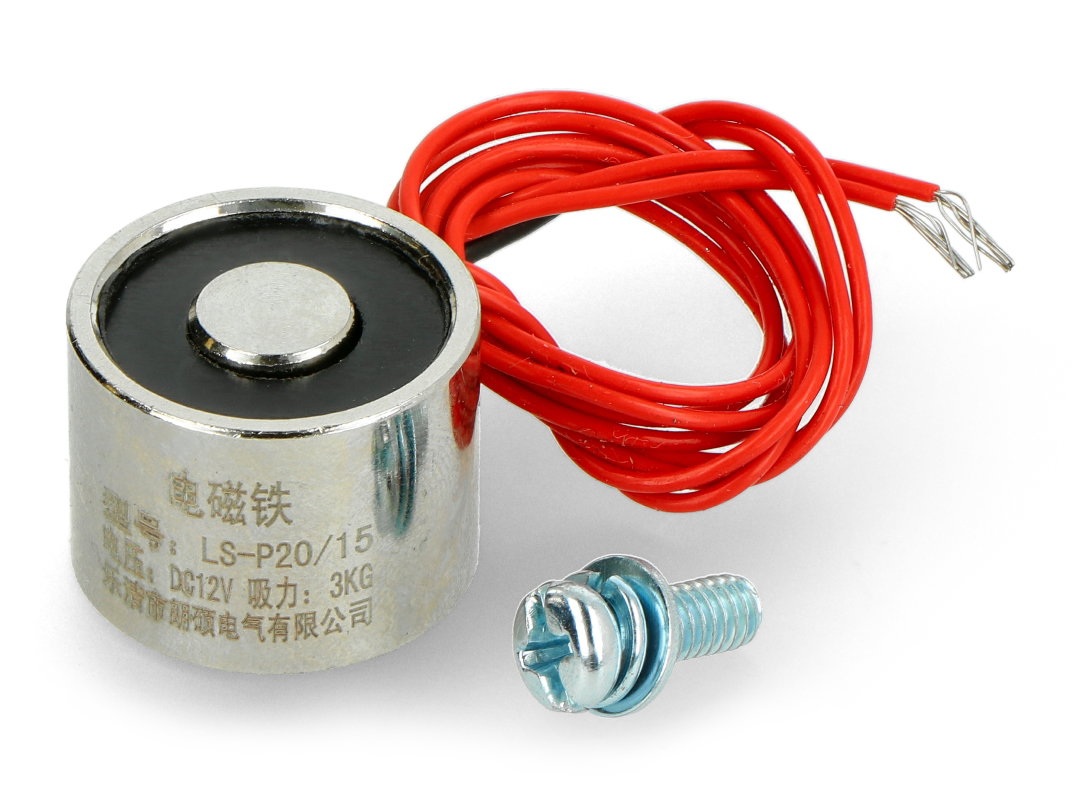

Holding solenoid 12 V 1 W 3 kgf.
Holding electromagnetwith load.
Specifications of 12 V holding electromagnet
- Power supply voltage: 12 V
- Power: 2 W
- Current consumption: approx. 170 mA
- Load capacity: 3 kgf (holds 3 kg for 9.8 m/s2 earth acceleration)
- Cables with removed insulation at the ends, approx. 30 cm long
- Mounting hole with M4 thread (screw included)
- Dimensions: 20 x 8 x 15 mm
- Weight: 25 g
|
Attention! The manufacturer recommends maintaining good heat dissipation from the enclosure, because as the coil temperature increases, the holding force decreases. |
