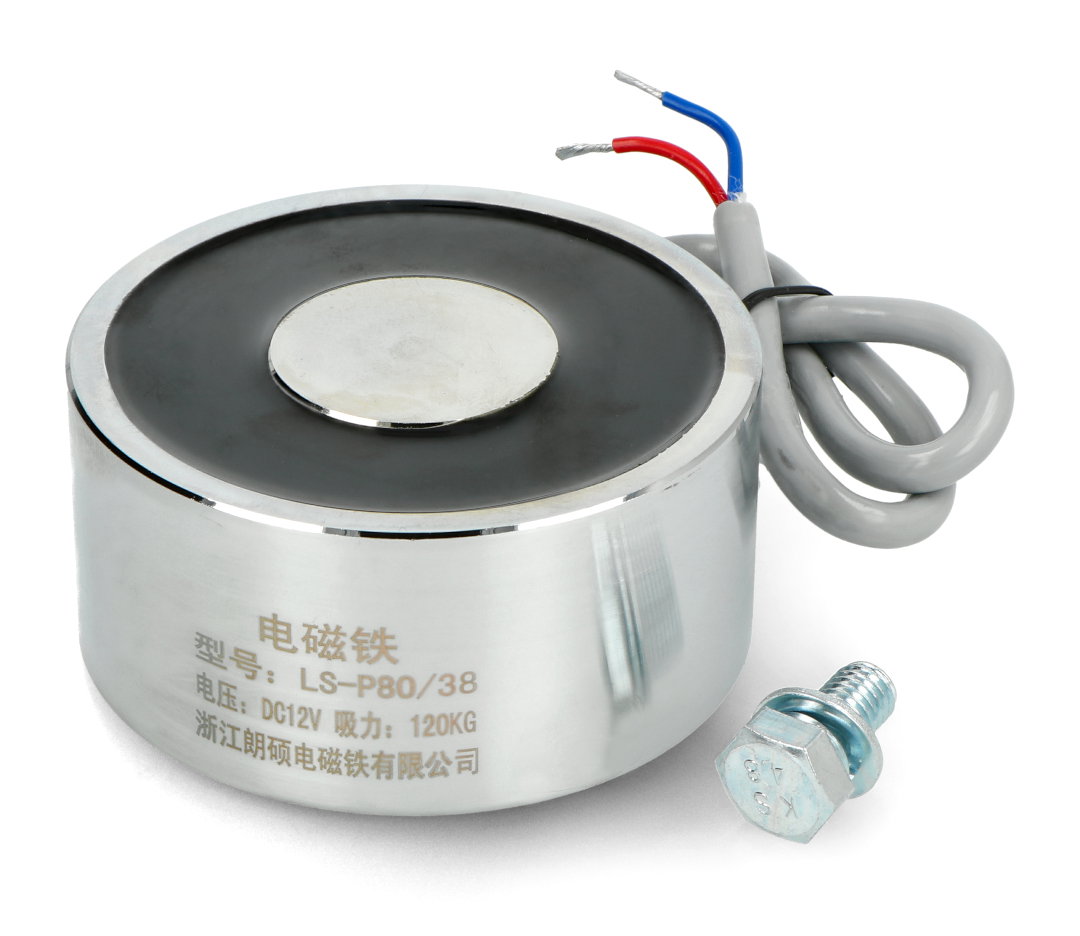

Electromagnet holding 12V 13W 120kgf

Index: DNG-17582 EAN: 5903351245234

Powered by 12 V holding electromagnet, with a maximum load capacity of 120 kg (at standard gravitational acceleration of 9.8 m/s 2 ). The device consumes approximately 1.1 A during operation. The rated power is 13 W. The product has dimensions: 80 x 38 mm. The housing has a mounting hole with an M8 thread, and the set also includes an appropriate screw. The cables that come out are approximately 30 cm long.

Electromagnet holding 12V 13W 120kgf
€36.90
€30.00 tax excl.
Goods pending acceptance - available within a few days
Waiting for delivery
PayPal payment
Manufacturer: OEM

Product Description: Holding electromagnet 12V 13W 120 kgf

Powered by 12 V holding electromagnet , with a maximum load capacity of 120 kg (at standard gravitational acceleration of 9.8 m/s 2 ). The device consumes approximately 1.1 A during operation. The rated power is 13 W. The product has dimensions: 80 x 38 mm. The housing has a mounting hole with an M8 thread, and the set also includes an appropriate screw. The cables that come out are approximately 30 cm long. The electromagnet can be used as an Arduino actuator. Due to the excessive power consumed by the magnet, it should not be connected directly to the microcontroller pins. To avoid damaging the system, use a relay , optocoupler or transistor amplifier .

Holding electromagnet 12V 13W 120kgf Holding electromagnet 12V 13W 120kgf .

Holding electromagnet 12V 6W 60kgf Electromagnet holding a load .

12V Holding Solenoid Specification

  • Supply voltage: 12V
  • Power: 13 W
  • Current consumption: approx. 1.1 A
  • Load capacity: 120 kgf (holds a mass of 120 kg for a gravitational acceleration of 9.8 m/s 2 )
  • Cables with stripped insulation at the ends, approx. 30 cm long
  • Mounting hole with M8 thread (screw included)
  • Dimensions: 80 x 38 mm
  • Weight: 1.1 kg

Attention !

The manufacturer recommends maintaining good heat dissipation from the housing, because as the coil temperature increases, the holding force decreases.

Package width 10.5 cm
Package height 5 cm
Package depth 8.5 cm
Package weight 1.119 kg
