Electromagnet holding 12V 1W 80mA 1kgf
Holding electromagnet, powered by 12 V. With standard acceleration due to gravity (9.82 m/s 2 ) it maintains a mass of 1 kg . Current consumption is approx. 80 mA, rated power of the device is 1 W. Product dimensions are: 13 x 27 mm. The housing has a mounting hole with an M3 thread (the set also includes an appropriate screw). The two lead wires with the insulation removed from the terminal are approximately 30 cm long.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product Description: Holding electromagnet 12V 1W 80mA 1kgf
Holding electromagnet , powered by 12 V. With standard acceleration due to gravity (9.82 m/s 2 ) it maintains a mass of 1 kg . Current consumption is approx. 80 mA, rated power of the device is 1 W. Product dimensions are: 13 x 27 mm. The housing has a mounting hole with an M3 thread (the set also includes an appropriate screw). The two lead wires with the insulation removed from the terminal are approximately 30 cm long. The electromagnet can be used as an actuator controlled by a microcontroller, e.g. Arduino . However, do not connect it directly to the controller pins. For this purpose, a relay , optocoupler or transistor amplifier should be used.

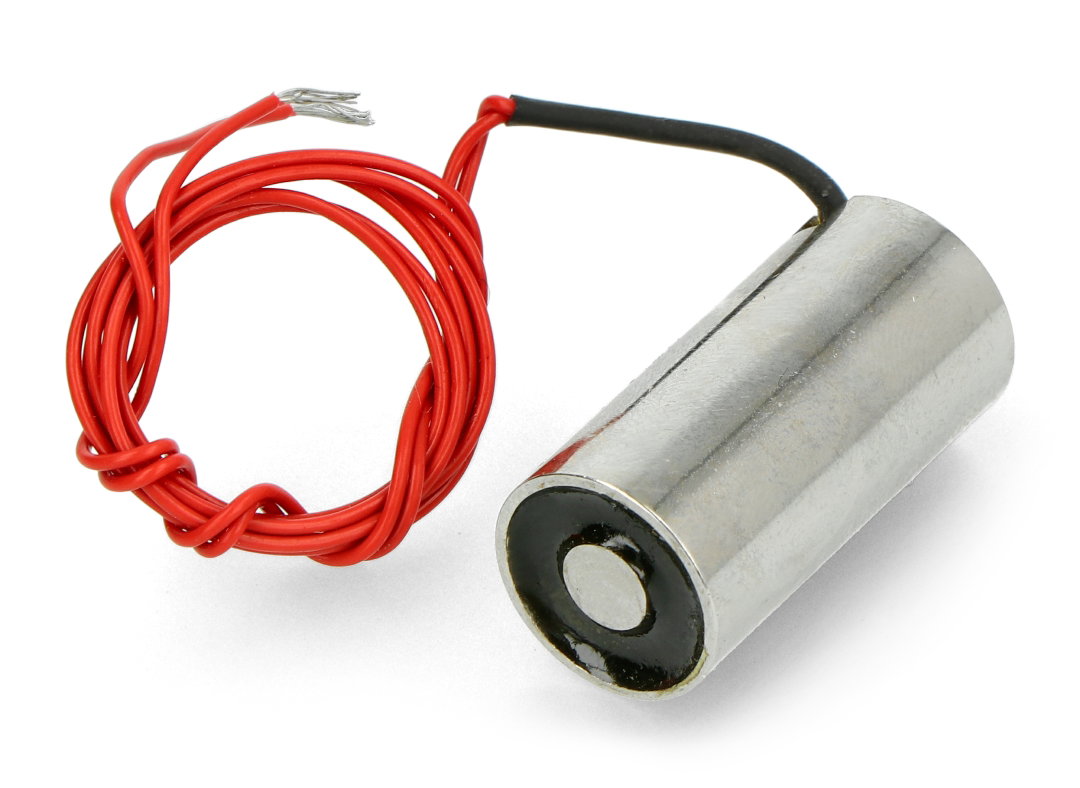

Holding electromagnet 12V 1W 1kgf .
Electromagnet holding a load .
12V Holding Solenoid Specification
- Supply voltage: 12V
- Power: 1W
- Current consumption: approx. 80 mA
- Load capacity: 1 kgf (holds a mass of 1 kg for a gravitational acceleration of 9.8 m/s 2 )
- Cables with stripped insulation at the ends, approx. 30 cm long
- Mounting hole with M3 thread (screw included)
- Dimensions: 13 x 27 mm
- Weight: 20 g
Attention ! The manufacturer recommends maintaining good heat dissipation from the housing, because as the coil temperature increases, the holding force decreases. |
Useful links
| Name | Value |
|---|---|
| Width | 6 cm |
| Height | 1 cm |
| Depth | 8 cm |
| Weight | 0.018 kg |
