Product Description: Holding electromagnet 12V 10W 80kgf
A holding electromagnet which, after applying a voltage pulse of 12 V , holds a mass of 80 kg (with a standard acceleration due to gravity of 9.8 m/s 2 ). The current consumption during operation of the device is approximately 850 mA. The rated power is 10 W. The product has a mounting hole with an M8 thread, the set also includes an appropriate screw and washer. The device has dimensions: 65 x 26 x 30 mm. The length of the cables is approximately 30 cm. It is possible to control the electromagnet using, among others: Arduino . However, do not connect it directly to the microcontroller pins. The power consumed by the magnet is too high, which may damage the system. An appropriate solution will be to use a relay , optocoupler or transistor amplifier .

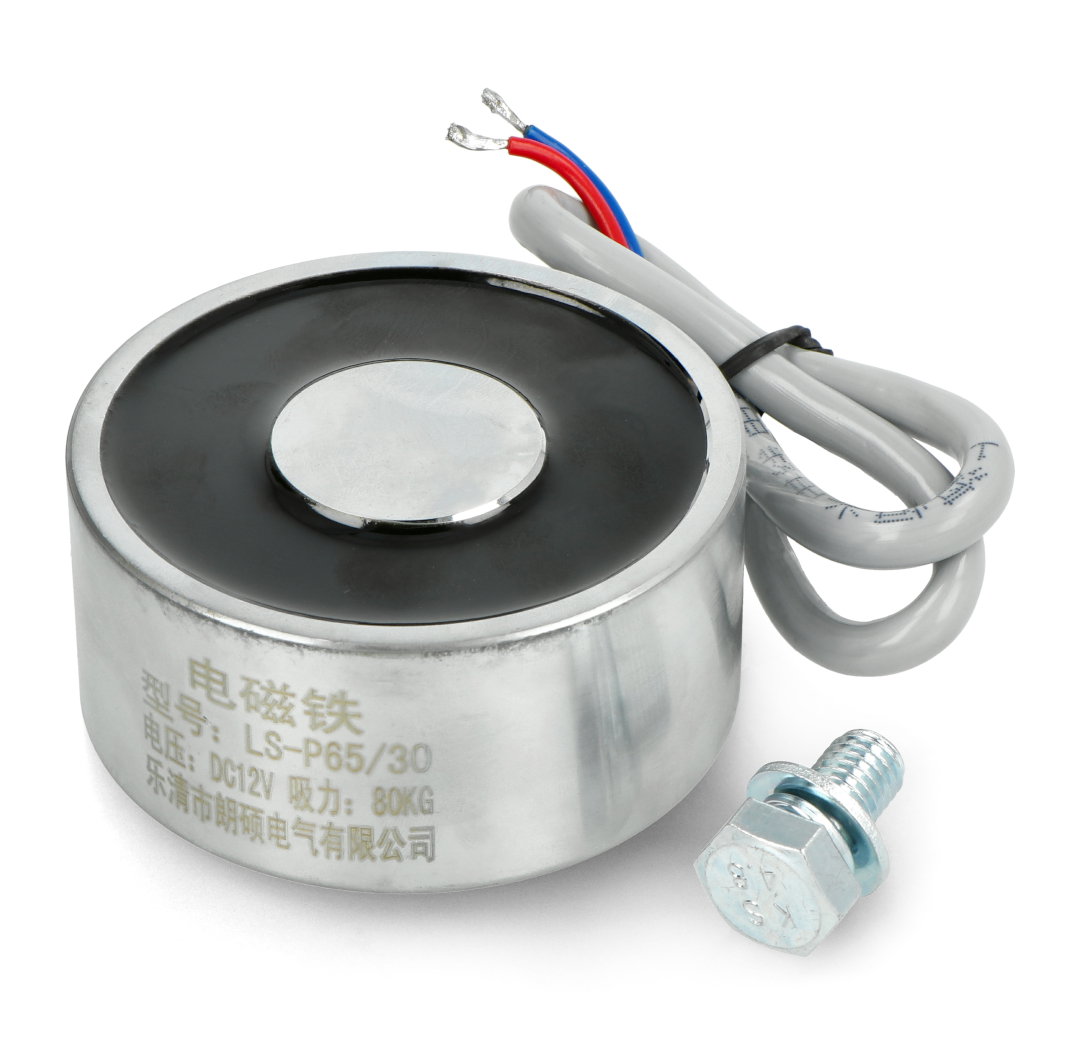

Holding electromagnet 12V 10W 80kgf .
Electromagnet holding a load .
12V Holding Solenoid Specification
- Supply voltage: 12V
- Power: 10W
- Current consumption: approx. 850 mA
- Load capacity: 80 kgf (holds a mass of 80 kg for a gravitational acceleration of 9.8 m/s 2 )
- Cables with stripped insulation at the ends, approx. 30 cm long
- Mounting hole with M8 thread (screw included)
- Dimensions: 65 x 26 x 30 mm
- Weight: 538 g
Attention ! The manufacturer recommends maintaining good heat dissipation from the housing, because as the coil temperature increases, the holding force decreases. |
