Product description: Pulling solenoid 12 V 24 W 6,5 kg
Theelectromagnetis equipped with a20 mmlong bolt, which after receiving a12 Vvoltage signal carries out a linear pulling motion. During operation, the device consumes a current of about2 A. The maximum load capacity is approx. 6.5 kg. There are mounting holes in the casing of the electromagnet. The set includes screws and washers. The net weight of the product is 352 g. The supply cable is 25 cm long.
A wide range ofelectromagnetsis available in our shop- checkit out.

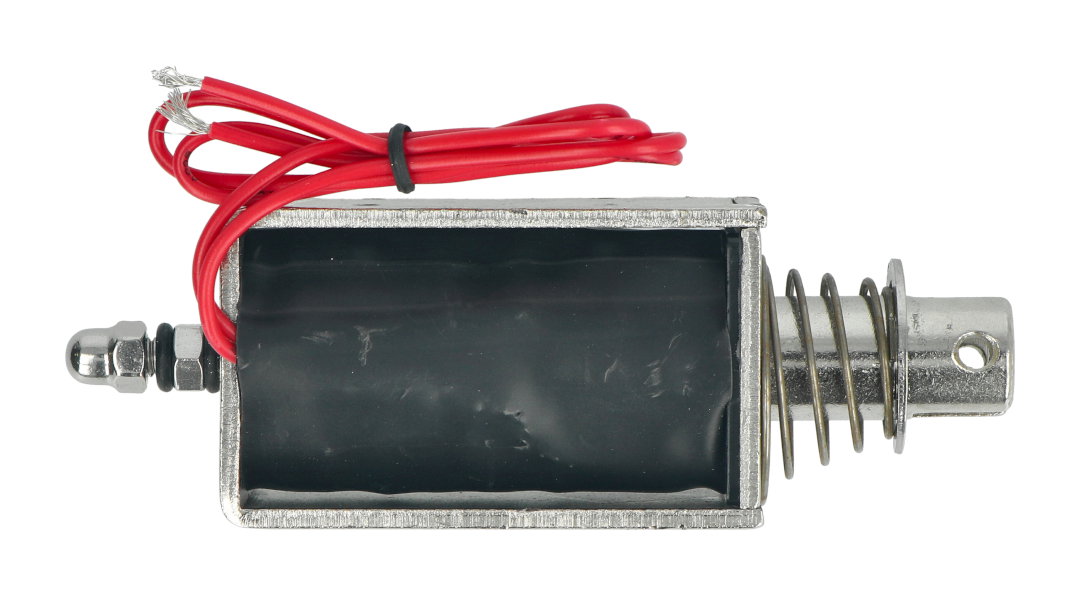

Pulling electromagnet 12 V 24 W 6,5 kg.

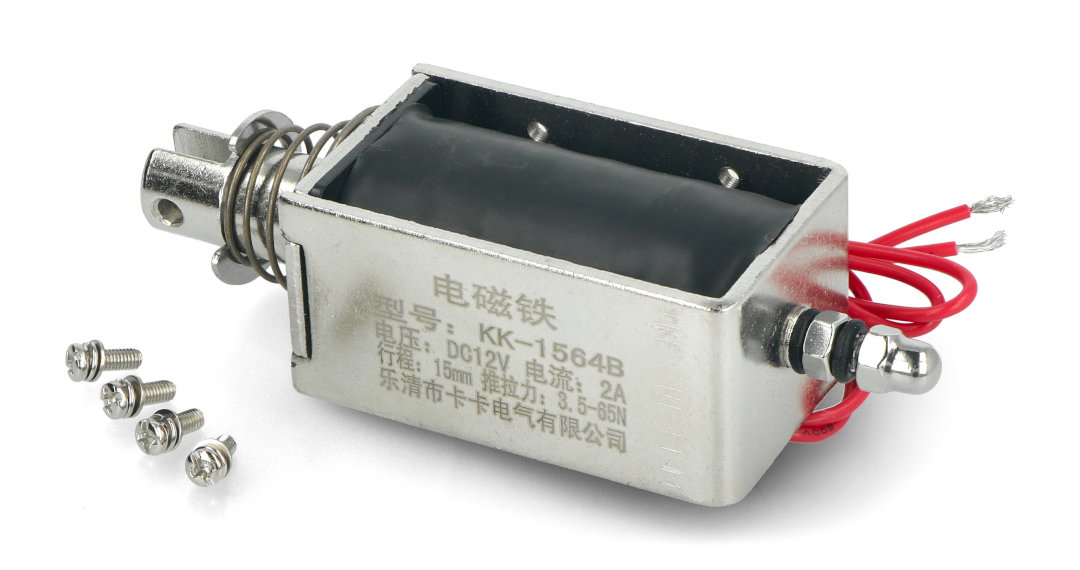

Electromagnet with assembly elements.
Specifications of the pulling electromagnet
- Model: KK-1564B
- Design: pull version
- Supply voltage: 12 V
- Consumed current: 2 A
- Maximum power: 24 W
- Locking range: 20 mm
- Pulling force: 6.5 kgf (attracts a mass of 6.5 kg for an earth acceleration of 9.8 m/s2)
- Electromagnet dimensions: 115 x 38 x 30 mm
- The enclosure has mounting holes with a diameter of 2 mm
- Supply cable length: 0.25 m
- Weight: 352 g
Set contents
- Pulling electromagnet
- 4 x mounting screws
Attention!
Solenoid draws relatively high current, so connecting it directly to the microcontroller leads will cause permanent damage to the circuit.
