Product Description: Holding electromagnet 12V 4W 30kgf
Powered by 12 V , the holding electromagnet holds a mass of 30 kg at a standard acceleration due to gravity of 9.8 m/s 2 . The rated power of the device is 4 W and the current consumption is approximately 340 mA. The magnet in the housing has a mounting hole with an M5 thread (the set includes an appropriate screw). Product dimensions are: 40 x 25 mm. The electromagnet can be used as an actuator of a microcontroller, e.g. Arduino . Due to the excessive power it consumes during operation, it cannot be connected directly to the controller pins. For such a connection, one of the following elements should be used: a relay , an optocoupler or a transistor amplifier .

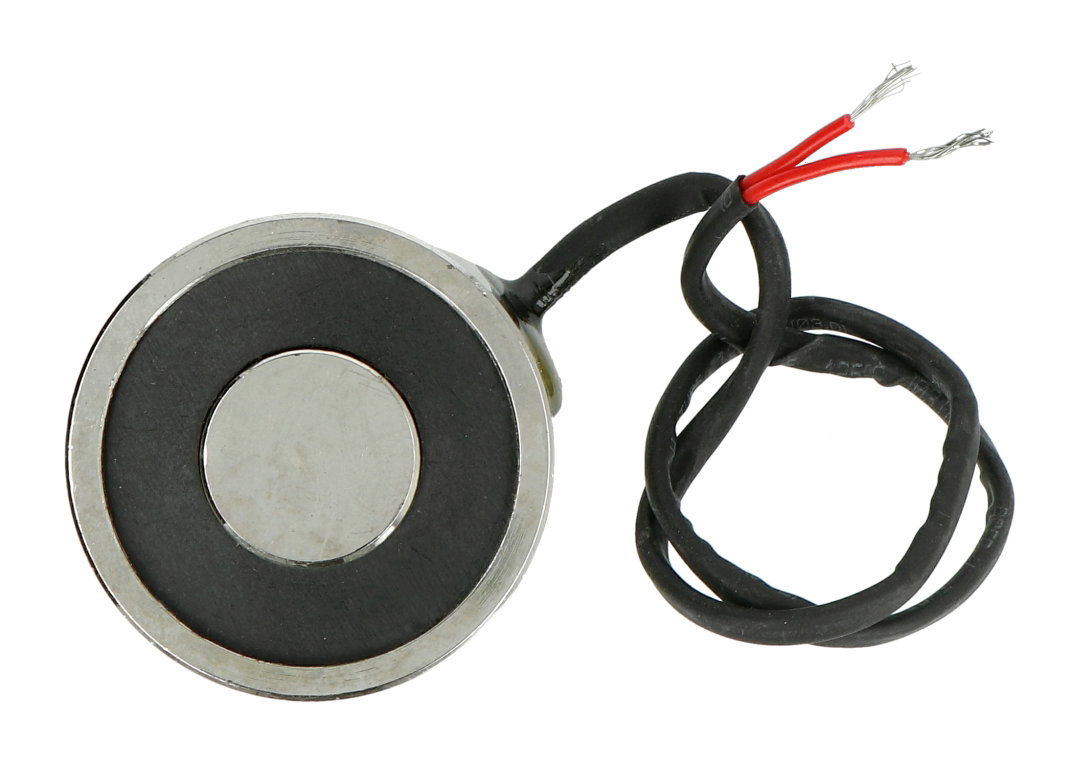

Holding electromagnet 12V 4W 30kgf .
Electromagnet holding a load .
12V Holding Solenoid Specification
- Supply voltage: 12V
- Power: 4W
- Current consumption: approx. 340 mA
- Load capacity: 30 kgf (holds a mass of 30 kg for a gravitational acceleration of 9.8 m/s 2 )
- Cables with stripped insulation at the ends, approx. 30 cm long.
- Mounting hole with M5 thread (screw included)
- Dimensions: 40 x 25 mm
- Weight: 175 g
|
Attention ! The manufacturer recommends maintaining good heat dissipation from the housing, because as the coil temperature increases, the holding force decreases. |
