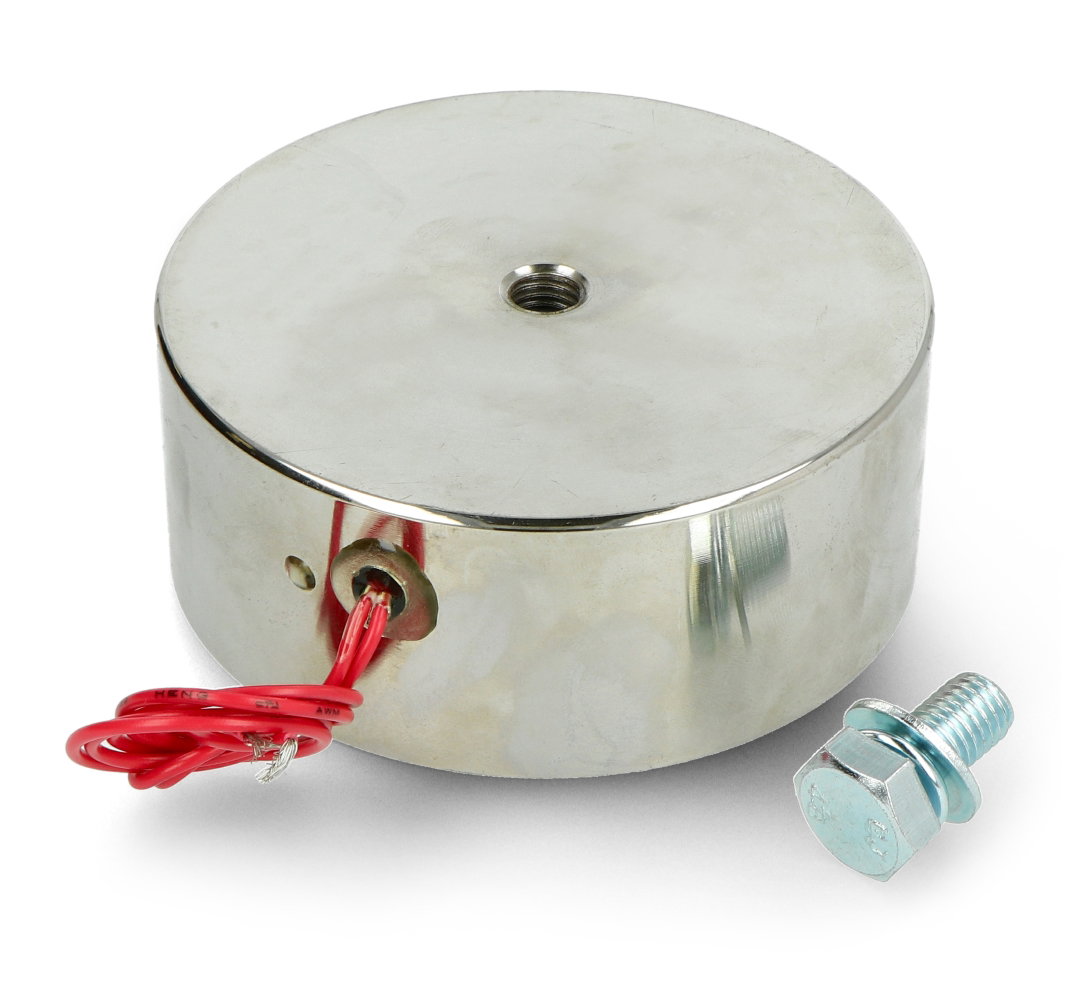

Electromagnet holding 12V 15W 240kgf
Holding electromagnet with a maximum load capacity of 240 kg (at standard gravitational acceleration of 9.8 m/s 2 ). Powered by 12 V. Current consumption is approximately 1.25 A. Rated power is 15 W. The product has an M10 threaded mounting hole, the set also includes an appropriate screw and washer. The device has dimensions: 100 x 40 mm. The length of the cables is approximately 30 cm.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product Description: Holding electromagnet 12V 15W 240kgf
Holding electromagnet with a maximum load capacity of 240 kg (at standard gravitational acceleration of 9.8 m/s 2 ). Powered by 12 V. Current consumption is approximately 1.25 A. Rated power is 15 W. The product has an M10 threaded mounting hole, the set also includes an appropriate screw and washer. The device has dimensions: 100 x 40 mm. The length of the cables is approximately 30 cm. An electromagnet is very often used as an actuator controlled by a microcontroller, such as the very popular Arduino . However, remember not to connect the magnet directly to the controller pins. In such a situation, the following electronic components should be used: a relay , an opto-isolator or a transistor amplifier .
Holding electromagnet 12V 15W 240kgf .
Electromagnet holding a load .
12V Holding Solenoid Specification
- Supply voltage: 12V
- Power: 15W
- Current consumption: approx. 1.25 A
- Load capacity: 240 kgf (holds a mass of 240 kg for a gravitational acceleration of 9.8 m/s 2 )
- Cables with stripped insulation at the ends, approx. 30 cm long
- Mounting hole with M10 thread (screw included)
- Dimensions: 100 x 40 mm
- Weight: 1.85 kg
Attention ! The manufacturer recommends maintaining good heat dissipation from the housing, because as the coil temperature increases, the holding force decreases. |
Useful links
| Name | Value |
|---|---|
| Width | 13 cm |
| Height | 5 cm |
| Depth | 10.5 cm |
| Weight | 2 kg |
