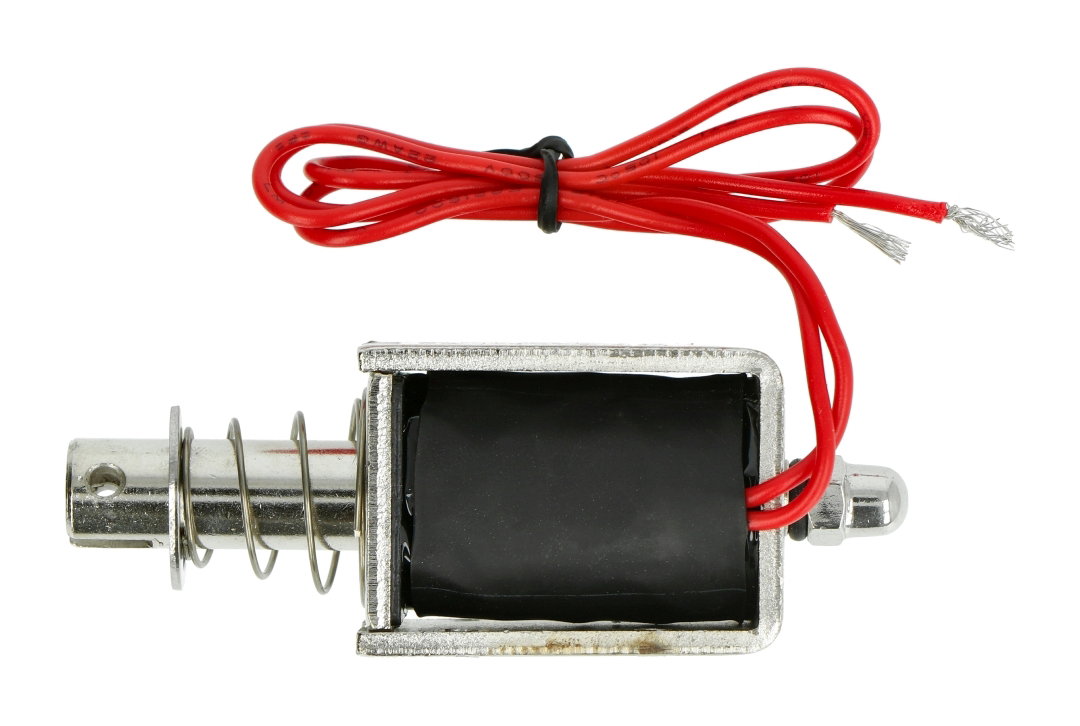

Product description: Tractive electromagnet 12 V 3.5 kg
Tractivesolenoid, which requires a voltage of12 Vto operate correctly on the coil. The device, performing linear motion, draws about1.2 Acurrent. The range of the pin is12 mmand the maximum load capacity is 3.5 kg. Mounting holes are made in the magnet housing. The screws and washers are included.
Pulling electromagnet 12 V 3,5 kg.
Specifications of the towing electromagnet
- Power supply voltage: 12 V
- The power's drawn: 1,2 A
- Maximum power: 14.4 W
- Range of the pin: 12 mm
- Load capacity: 3.5 kg
- Body dimensions: 40 x 24 x 29 mm
- There are mounting holes in the enclosure
- Weight: 140 g
|
Attention! Solenoid consumes a relatively high current, so connecting directly to the microcontroller's outputs will lead to permanent damage to the system. |
