Product Description: Holding electromagnet 12V 2W 8 kgf
The holding electromagnet is powered by 12 V and has a rated power of 2 W. The maximum load capacity of the magnet is 8 kg with a standard gravitational acceleration of 9.8 m/s 2 . The product measures 25 x 20 mm and has a mounting hole with an M4 thread. The device can be used as an executive element of any microcontroller, e.g. Arduino . However, the solenoid draws too much power and should not be connected directly to the controller pin. A relay , optocoupler or transistor amplifier should be used.

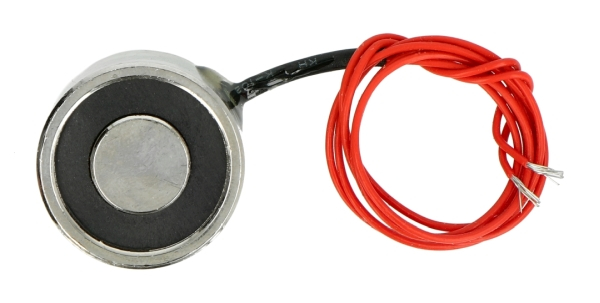

Holding electromagnet 12V 2W 8kgf .
Electromagnet holding a load .
12V Holding Solenoid Specification
- Supply voltage: 12V
- Power: 2.5 W
- Current consumption: approx. 170 mA
- Load capacity: 8 kgf (holds a mass of 8 kg for a gravitational acceleration of 9.8 m/s 2 )
- Cables with stripped insulation at the ends, approx. 30 cm long
- Mounting hole with M4 thread (screw included)
- Dimensions: 25 x 20 mm
- Weight: 55 g
|
Attention ! The manufacturer recommends maintaining good heat dissipation from the housing, because as the coil temperature increases, the holding force decreases. |
