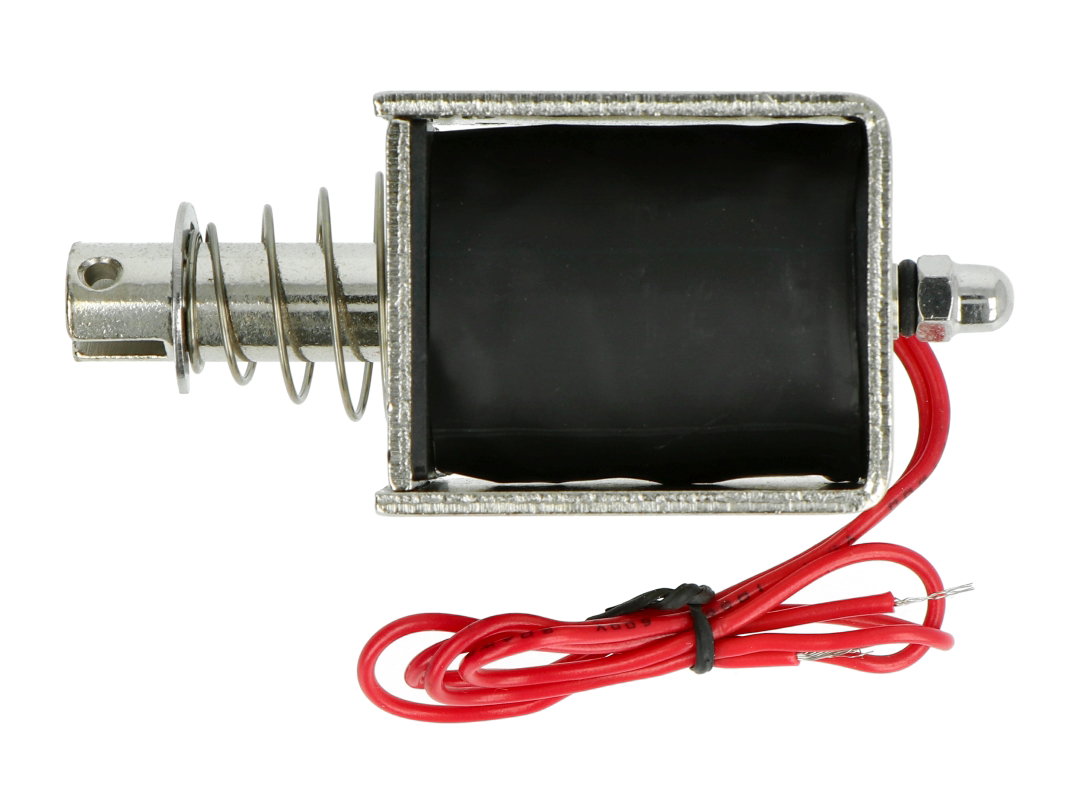

Product description: Tractive solenoid 12 V 5 kg
The electromagnetis equipped with a15 mmlong pin, which after receiving a12 Vvoltage signal makes a linear - pulling motion. The device draws a current of approx.1.8 Aduring operation. The maximum load capacity is about 5 kg. There are mounting holes in the electromagnet housing.
Pulling solenoid 12 V 5 kg.
Specification of the towing electromagnet
- Power supply voltage: 12 V
- The power's drawn: 1,8 A
- Maximum power: 21.6 W
- Range of the pin: 15 mm
- Load capacity: 5 kg
- Body dimensions: 50 x 37 x 41 mm
- There are mounting holes in the enclosure
- Weight: 325 g
|
Attention! Solenoid consumes a relatively high current, so connecting directly to the microcontroller's outputs will lead to permanent damage to the system. |
