Electromagnet holding 12V 3,5W 25kgf
Holding electromagnet, powered by 12 V. With a standard acceleration due to gravity of 9.8 m/s 2 it supports a mass of 25 kg . The device's current consumption is 300 mA, the nominal power is approx. 3.5 W. The product has dimensions: 34 x 25 mm. The housing has a mounting hole with an M5 thread, and the set also includes an appropriate screw. The cables with the insulation removed at the ends are approximately 30 cm long.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product Description: Holding electromagnet 12V 3.5W 25kgf
Holding electromagnet , powered by 12 V. With a standard acceleration due to gravity of 9.8 m/s 2 it supports a mass of 25 kg . The device's current consumption is 300 mA, the nominal power is approx. 3.5 W. The product has dimensions: 34 x 25 mm. The housing has a mounting hole with an M5 thread, and the set also includes an appropriate screw. The cables with the insulation removed at the ends are approximately 30 cm long. It is possible to control the electromagnet using, among others: Arduino . However, do not connect it directly to the microcontroller pins. The power consumed by the magnet is too high, which may damage the system. An appropriate solution will be to use a relay , optocoupler or transistor amplifier .

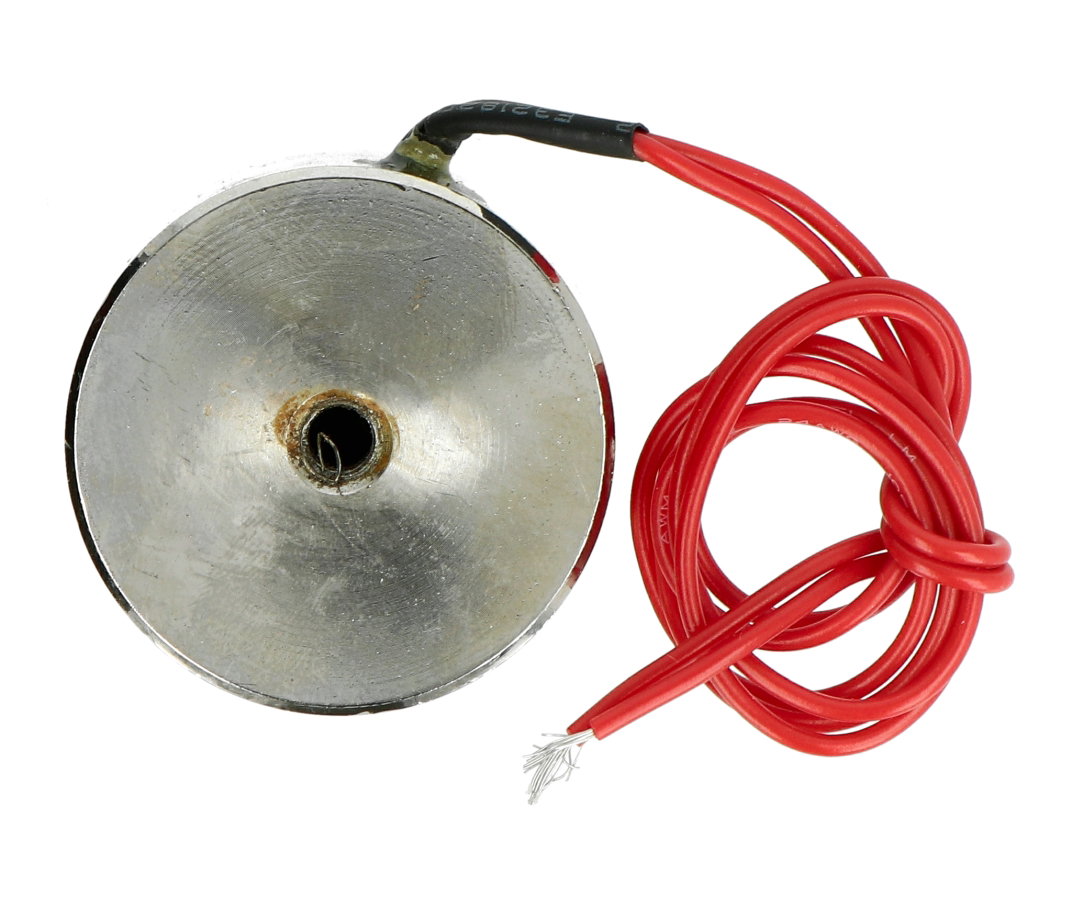

Holding electromagnet 12V 3.5W 25kgf .
Electromagnet holding a load .
12V Holding Solenoid Specification
- Supply voltage: 12V
- Power: 3.5 W
- Current consumption: approx. 300 mA
- Load capacity: 25 kgf (holds a mass of 25 kg for a gravitational acceleration of 9.8 m/s 2)
- Cables with stripped insulation at the ends, approx. 30 cm long
- Mounting hole with M5 thread (screw included)
- Dimensions: 34 x 25 mm
- Weight: 130 g
Attention ! The manufacturer recommends maintaining good heat dissipation from the housing, because as the coil temperature increases, the holding force decreases. |
Useful links
| Name | Value |
|---|---|
| Width | 7 cm |
| Height | 9 cm |
| Depth | 3 cm |
| Weight | 0.129 kg |
