Electromagnet holding 12V 6W 55kgf

Index: DNG-17578 EAN: 5904422327941

Holding electromagnet with a rated power of 6 W. Powered by 12 V. Current consumption is approximately 500 mA. The device maintains a mass of 55 kg under standard acceleration due to gravity. The electromagnet has a mounting hole with an M6 thread. The cables that come out are approximately 30 cm long. The dimensions of the product are 50 x 23 x 27 mm.

Electromagnet holding 12V 6W 55kgf
€17.90
€14.55 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: OEM

Product Description: Holding electromagnet 12V 6W 55kgf

Holding electromagnet with a rated power of 6 W. Powered by 12 V. Current consumption is approximately 500 mA. The device maintains a mass of 55 kg under standard acceleration due to gravity. The electromagnet has a mounting hole with an M6 thread. The cables that come out are approximately 30 cm long. The dimensions of the product are 50 x 23 x 27 mm. The device can be used as an actuator controlled by Arduino . Because the electromagnet draws too much power, it cannot be connected directly to the pins of the microcontroller. One of the following solutions should be used: relay , optocoupler or transistor amplifier .

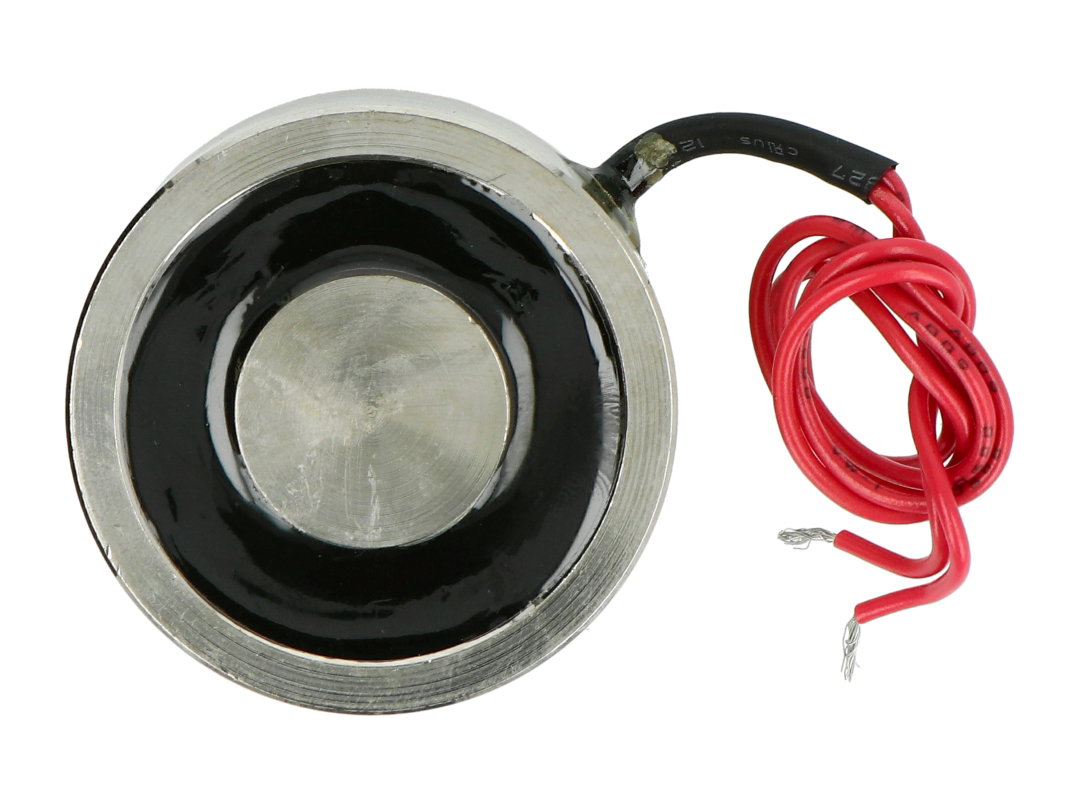

Holding electromagnet 12V 6W 55kgf

Holding electromagnet 12V 6W 55kgf .

Electromagnet holding the load

Electromagnet holding a load .

12V Holding Solenoid Specification

  • Supply voltage: 12V
  • Power: 6W
  • Current consumption: approx. 500 mA
  • Load capacity: 55 kgf (holds a mass of 55 kg for a gravitational acceleration of 9.8 m/s 2 )
  • Cables with stripped insulation at the ends, approx. 30 cm long
  • Mounting hole with M6 thread (screw included)
  • Dimensions: 50 x 23 x 27 mm
  • Weight: 290 g

Attention !

The manufacturer recommends maintaining good heat dissipation from the housing, because as the coil temperature increases, the holding force decreases.

Package width 9 cm
Package height 3 cm
Package depth 12 cm
Package weight 0.32 kg
