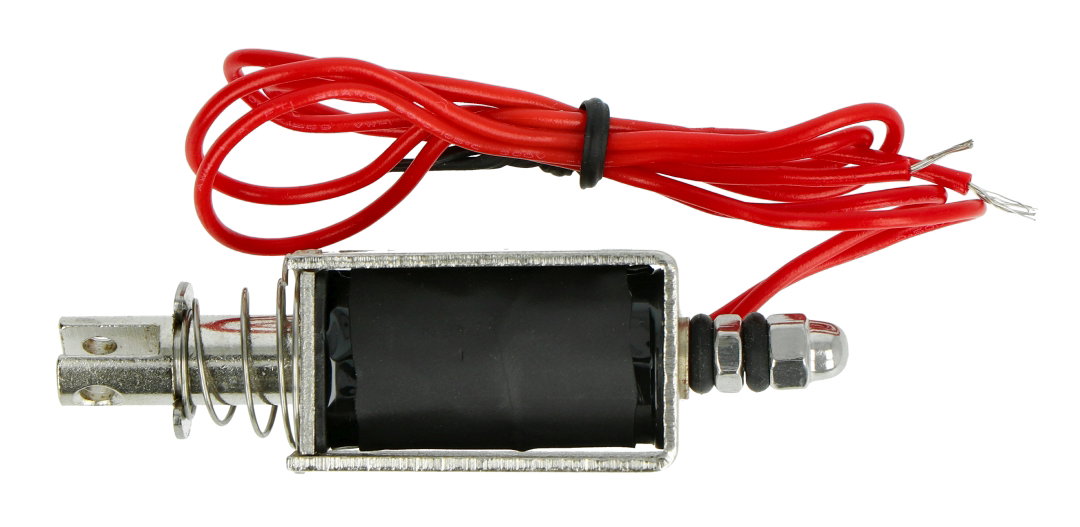

Product description: Tractive electromagnet 12 V 7.2 W 0.8 kg
An electromagnetwhich, under the influence of supplying a voltage of 12 V to the coil, performsa linear- pullingmotion. The device draws about 0.6 A current. The range of the pin is 41 mm. There areholesin the housingfor easy assembly. The appropriate screws are also included.
Pulling solenoid 12 V 0,8 kg.
Pulling electromagnet specifications
- Power supply voltage: 12 V
- Current drawn: 0,6 A
- Maximum power: 7.2 W
- Range of the pin: 41 mm
- Load capacity: 0.8 kg
- Body dimensions: 30 x 17 x 14 mm
- There are mounting holes in the enclosure
- Weight: 38 g
|
Attention! Solenoid consumes a relatively high current, so connecting directly to the microcontroller's outputs will lead to permanent damage to the system. |
