Product Description: Push Solenoid 12 V 2 kg 25 mm
The pushelectromagnetis powered by12 V, it can push a mass of2 kgwith a standard earth acceleration of 9.8 m/s2. The housing diameter is 25 mm and the bolt length is9 mm. The version of the electromagnet has a safety nut on the bolt. The electromagnet is equipped with two supply cables 25 cm long with stripped insulation at the ends. The device can be used in electrical machines, industry, medicine, loudspeakers, etc. The set includes a retracting spring.

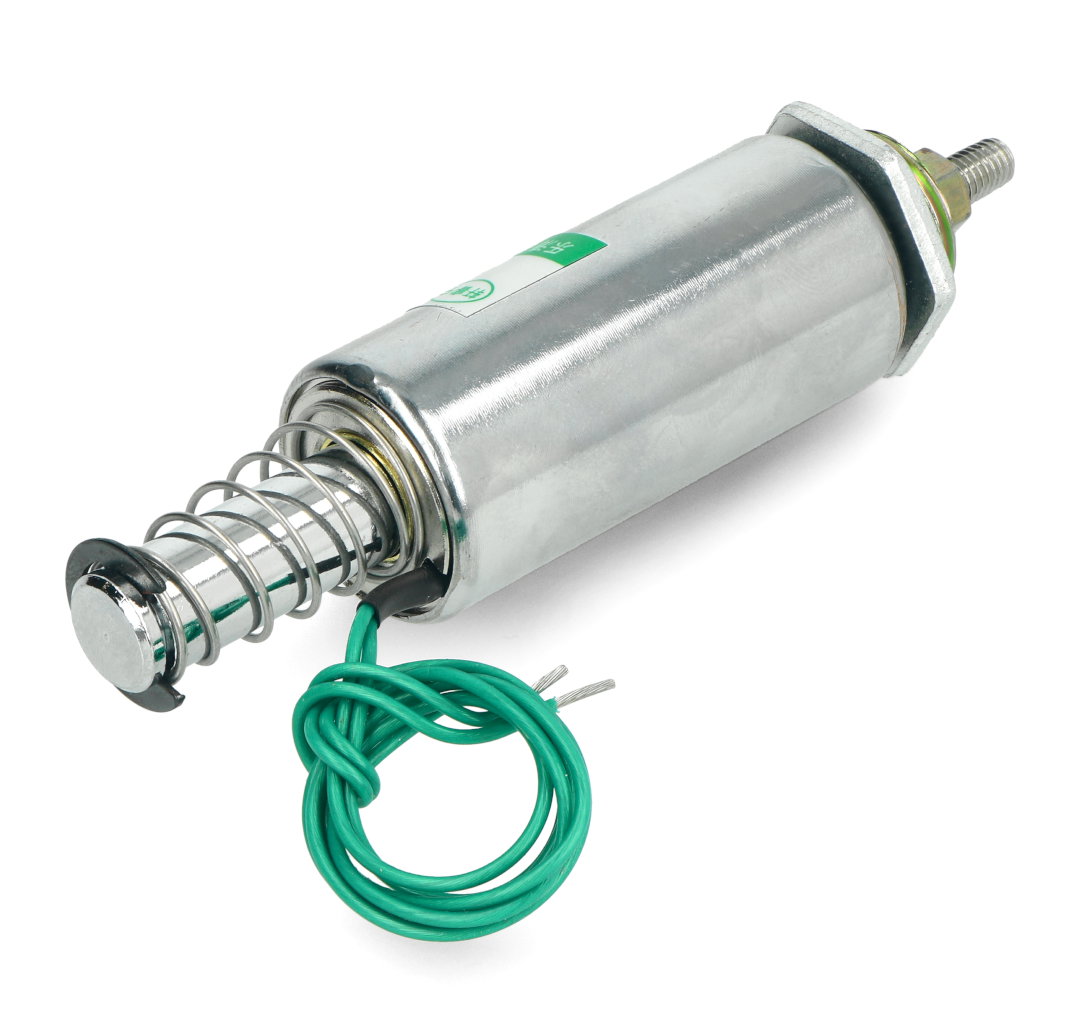

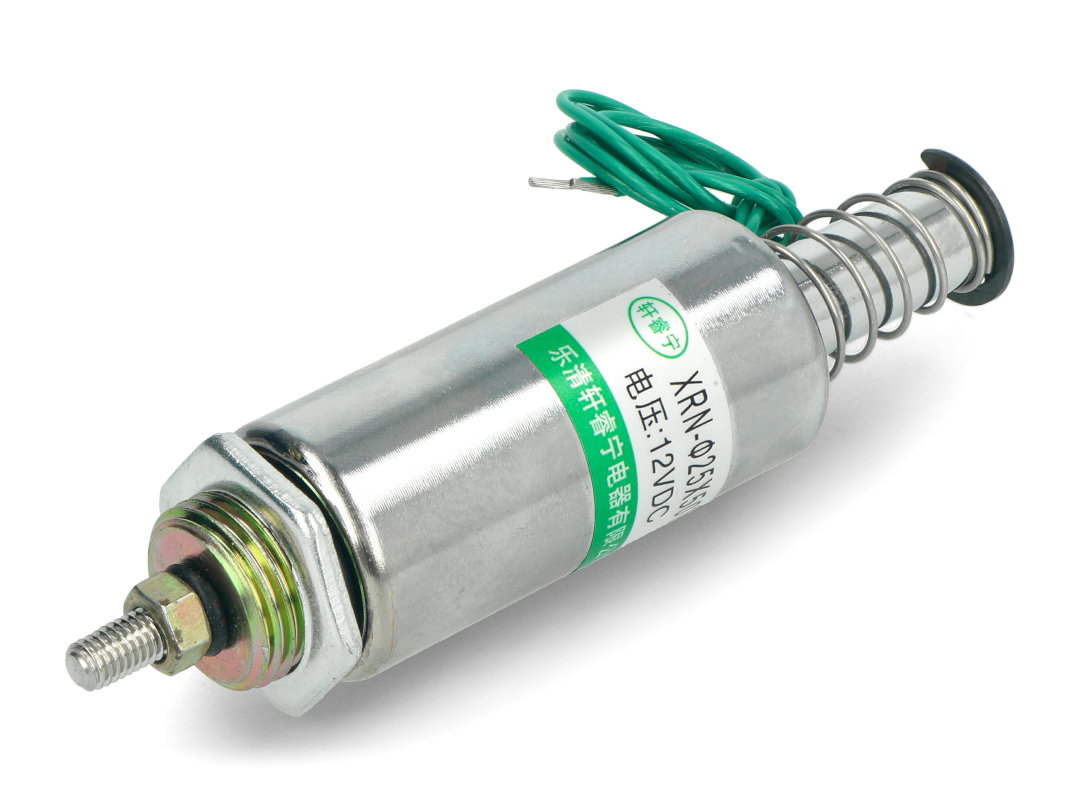

Push magnet 12 V 2 kg 25 mm.
Pushing solenoid with safety nut on the bolt.
Specification of the electromagnet
- Design: push version
- Supply voltage 12 V
- Pushing force: 2 kgf (pushes a mass of 2 kg for an earth acceleration of 9.8 m/s2)
- Bolt stroke: 10 mm
- Bolt length: 9 mm
- Housing diameter: 25 mm
- Housing length: 65 mm
- Mounting hole: 18 mm
- Length of power cables: 25 cm
- Wires with stripped insulation at the ends
