Product Description: 12V 3W 15kgf holding electromagnet
Powered by 12 V , a holding electromagnet that holds a mass of 15 kg under standard acceleration due to gravity (9.8 m/s 2 ). Current consumption during operation is approximately 250 mA. The rated power of the device is 3 W. The electromagnet has dimensions: 30 x 14 x 22 mm. It has terminals in the form of two wires, approximately 30 cm long, with the insulation removed at the ends. The housing has an installation hole with an M4 thread. The kit also includes the appropriate screw. The device is used as an actuator controlled by Arduino . Due to the high power consumed by the electromagnet, it should not be connected directly to the microcontroller pins. This may result in damage to the system. In such connections, an additional element should be used: a relay , opto-isolator or transistor amplifier .

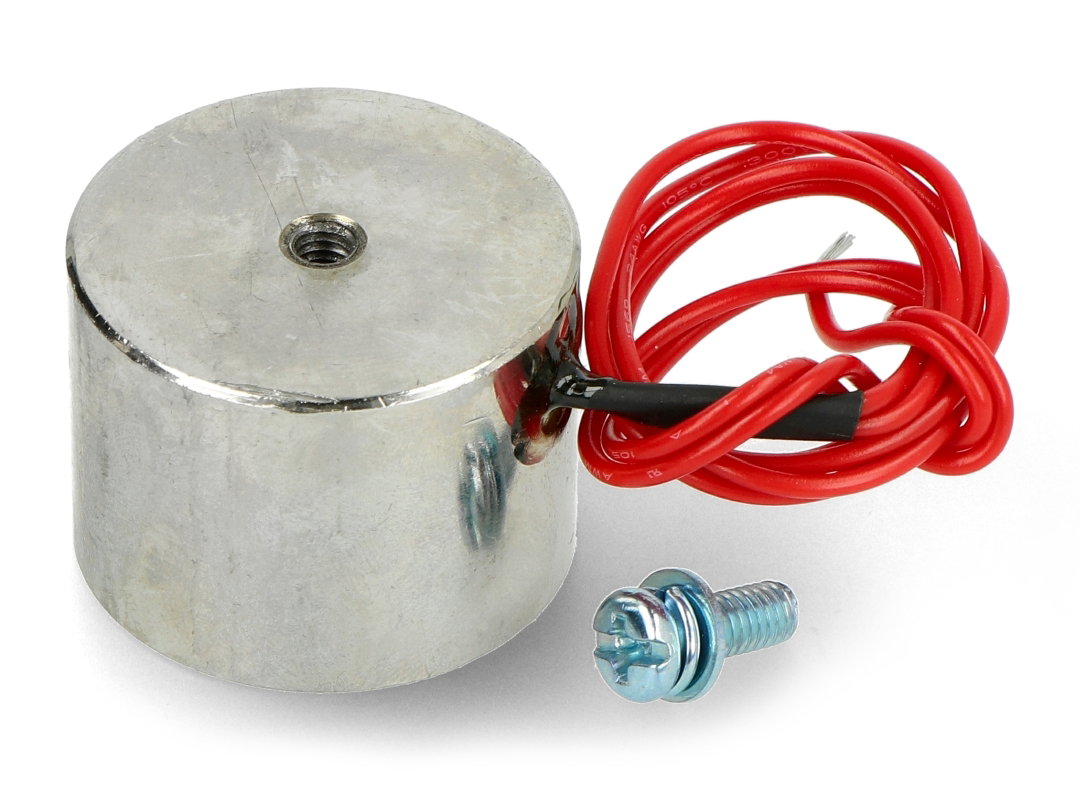

Holding electromagnet 12V 3W 15kgf .
Electromagnet holding a load .
12V Holding Solenoid Specification
- Supply voltage: 12V
- Power: 3W
- Current consumption: approx. 250 mA
- Load capacity: 15 kgf (holds a mass of 15 kg for a gravitational acceleration of 9.8 m/s 2 )
- Cables with stripped insulation at the ends, approx. 30 cm long
- Mounting hole with M4 thread (screw included)
- Dimensions: 30 x 14 x 22 mm
- Weight: 85 g
Attention ! The manufacturer recommends maintaining good heat dissipation from the housing, because as the coil temperature increases, the holding force decreases. |
