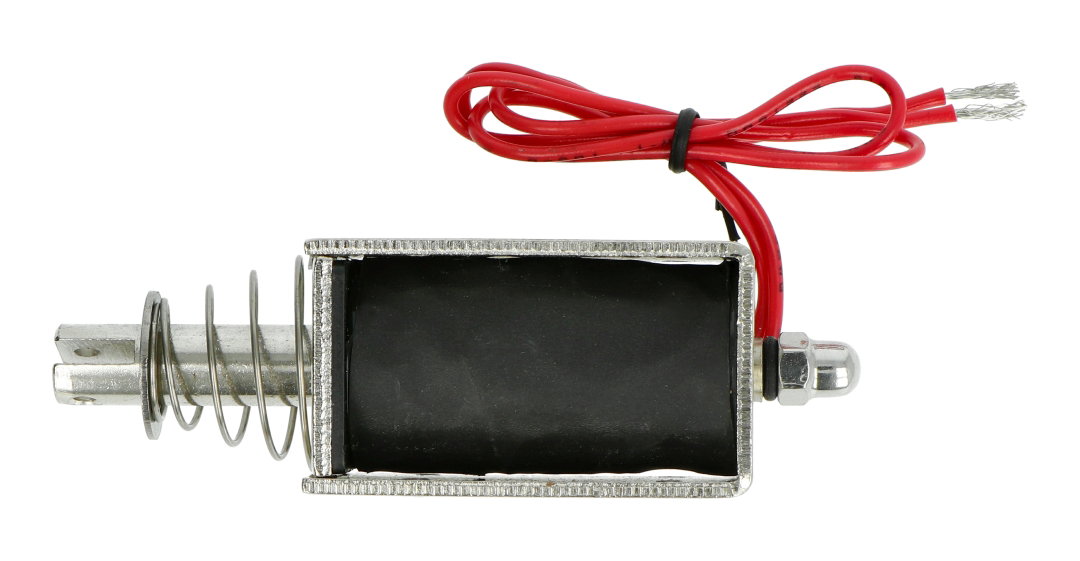

Product description: Tractive electromagnet 12 V 4.5 kg
An electromagnetwhich, under the influence of providing a12-voltsignal pulse, performs a continuous rectilinear movement. The device draws a current of approx.2 Aduring operation. The length of the pin is15 mm. The maximum load capacity is4.5 kg. There are mounting holes in the electromagnet housing. The set includes screws and washers.
Tractive solenoid 12 V 4.5 kg.
Tractive electromagnet specifications
- Power supply voltage: 12 V
- The power's drawn: 2 A
- Maximum power: 24 W
- Range of the pin: 15 mm
- Load capacity: 4.5 kg
- Body dimensions: 53 x 27 x 30 mm
- There are mounting holes in the enclosure
- Weight: 206 g
|
Attention! Solenoid consumes a relatively high current, so connecting directly to the microcontroller's outputs will lead to permanent damage to the system. |
