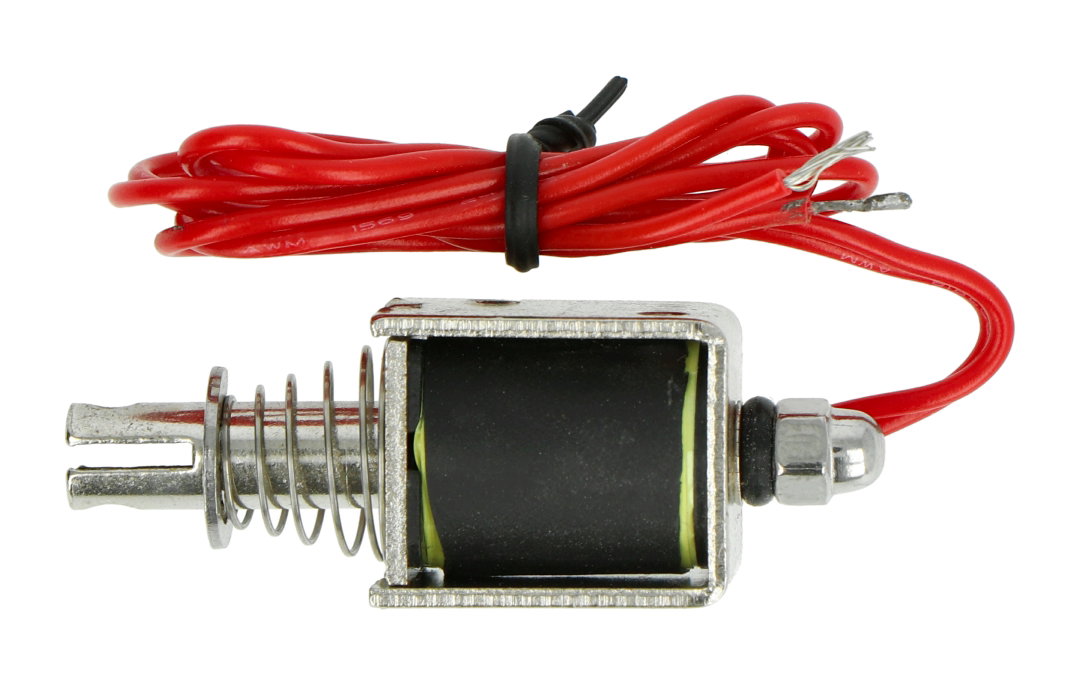

Pulling electromagnet 12V 0,5kg

Index: DNG-17757 EAN: 5903351245173

A device whose task is to perform linear motion - pulling, after giving a 12 V voltage signal. The electromagnet draws about 0.6 A current. The range of the pin is 5 mm. There are mounting holes in the housing. The kit also includes suitable screws.

Pulling electromagnet 12V 0,5kg
€4.00
€3.25 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: OEM

Product description: Tractive electromagnet 12 V 0.5 kg

A device whose task is to performlinear motion- pulling, after giving a 12 V voltage signal.The electromagnetdraws about 0.6 A current. The range of the pin is 5 mm. There aremounting holesin the housing. Two suitable screws with washers are also included.

Elektromagnes ciągnący 12 V 0,5 kg

Pulling solenoid 12 V 0.5 kg.

Tractive electromagnet specifications

  • Power supply voltage: 12 V
  • Current drawn: 0,6 A
  • Maximum power: 7.2 W
  • Range of the pin: 5 mm
  • Load capacity: 0.5 kg
  • Body dimensions: 20 x 13 x 15.5 mm
  • There are mounting holes in the enclosure
  • Weight: 23 g

Attention!

Solenoid consumes a relatively high current, so connecting directly to the microcontroller's outputs will lead to permanent damage to the system.

Package width 6 cm
Package height 2 cm
Package depth 8 cm
Package weight 0.025 kg
