Description

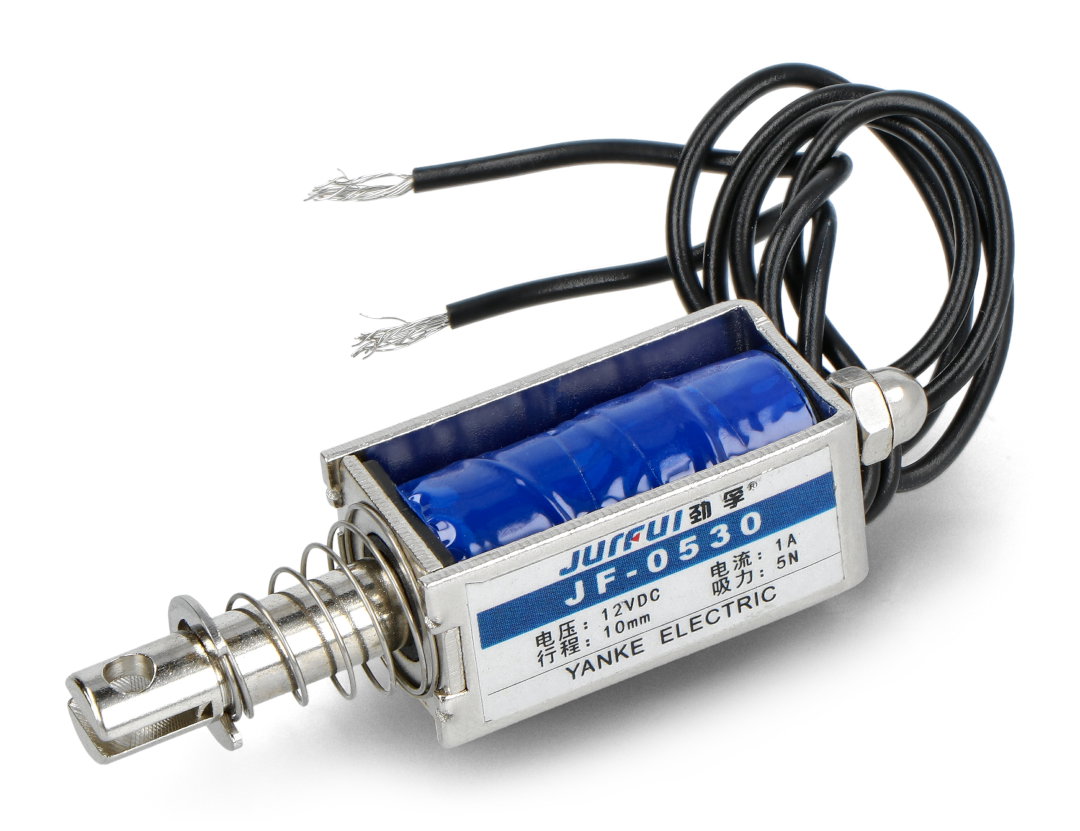

The solenoid allows to perform a linear - pulling motion with a voltage signal of 12 V. The range of the bolt is approximately 10 mm. The device has a mounting hole with a diameter of 2.5 mm. Powering wires with insulation removed at the ends, have a length of approx. 20 cm
|
Attention! The Solenoid consumes a relatively large current so connecting it directly to the pins of the microcontroller will lead to irreversible damage to the system. |
Specification
- Supply voltage: 12 V
- Current consumption: approx. 0.9 A
- Power: 11 W
- Wires: 20 cm without connector
- The range of bolt: 10 mm
- Load capacity: 0.1 kg
- Mounting holes with the diameter of 2,5 mm: 15 mm spacing
- Case dimensions: 30 x 15 x 13 mm
- Weight: 30 g
