Electromagnet 24V 2,5W 3kgf
The holding electromagnet is powered by 24 V with a power of 2.5 W. It holds a mass of 3 kg at a standard acceleration due to gravity of 9.8 m/s 2 . The body diameter is 20 mm and its height is 15 mm, an M4 threaded hole is used for installation.
We could not load the price.
The promotional price does not combine with quantity discounts.

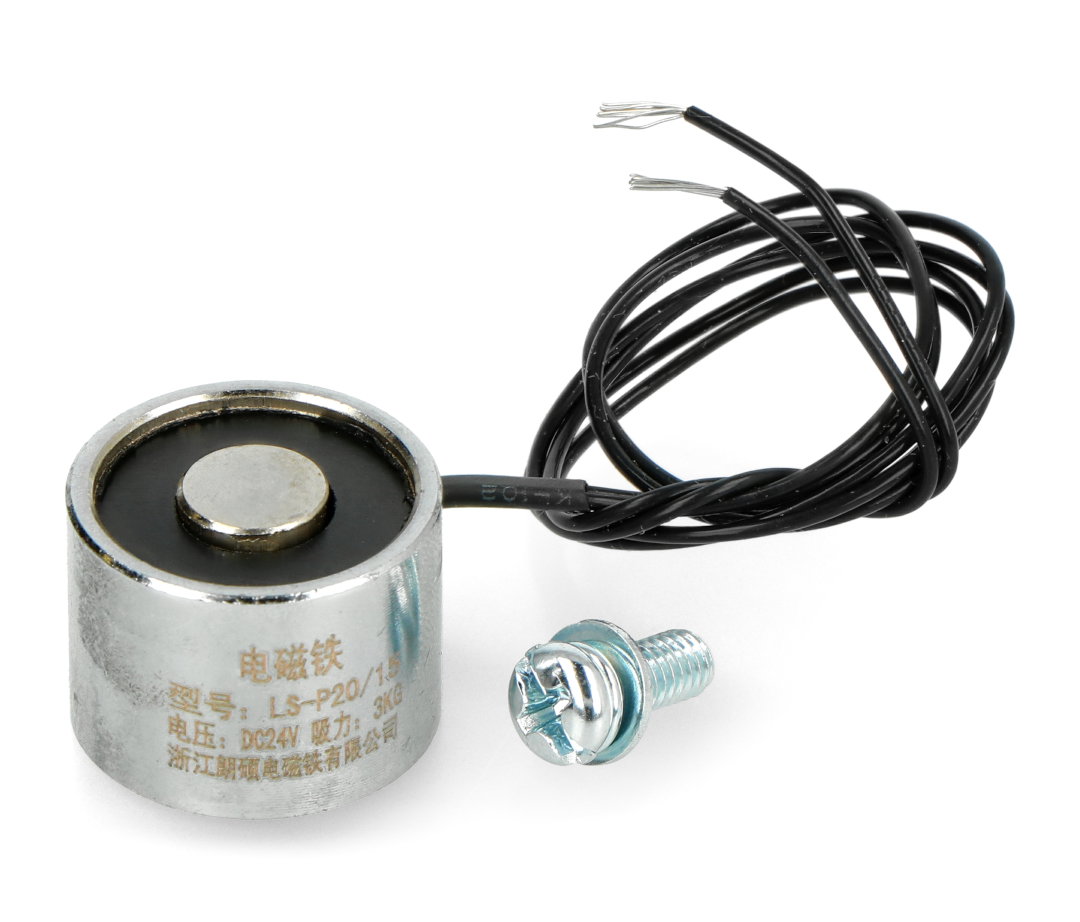

Product Description: Holding electromagnet 24V 2.5W 3 kgf
The holding electromagnet is powered by 24 V with a power of 2.5 W. It holds a mass of 3 kg at a standard acceleration due to gravity of 9.8 m/s 2 . The body diameter is 20 mm and its height is 15 mm, an M4 threaded hole is used for installation.
Magnet specifications
- Supply voltage: 24V
- Power: 2.5 W
- Current consumption: approx. 0.1 A
- Body diameter: 20 mm
- Body height: 15 mm
- Load capacity: 3 kgf (holds a mass of 3 kg for a gravitational acceleration of 9.8 m/s 2 )
- Cables with stripped insulation at the ends, approx. 25 cm long
- Mounting hole with M4 thread (screw included)
- Limit temperature: 130°C
- Weight: 25 g
Electromagnet holding 24V 2.5W 3kgf.
The device can be used as an actuator controlled by any microcontroller , e.g. Arduino . Please note that the electromagnet draws too much power to connect directly to a microcontroller pin. For this purpose, a relay , optocoupler or transistor amplifier can be used.
Attention ! The manufacturer recommends maintaining good heat dissipation from the housing, because as the coil temperature increases, the holding force decreases. |
Useful links
| Name | Value |
|---|---|
| Width | 6 cm |
| Height | 1.5 cm |
| Depth | 3.5 cm |
| Weight | 0.026 kg |
