Product Description: Holding electromagnet 12V 2W 5 kgf
Holding electromagnet with a maximum load capacity of 5 kg (at standard gravitational acceleration of 9.8 m/s 2 ). Powered by 12 V. Current consumption is approximately 170 mA, rated power is 2 W. The device has an installation hole with an M4 thread in the housing, and the set also includes an appropriate mounting screw. The electromagnet has dimensions: 25 x 11 mm. The length of the cables with the insulation removed is approx. 30 cm. If you use the device as an actuator controlled by Arduino , remember not to connect it directly to the microcontroller pins. For proper operation of the system, it is necessary to use a relay , opto-isolator or transistor amplifier .

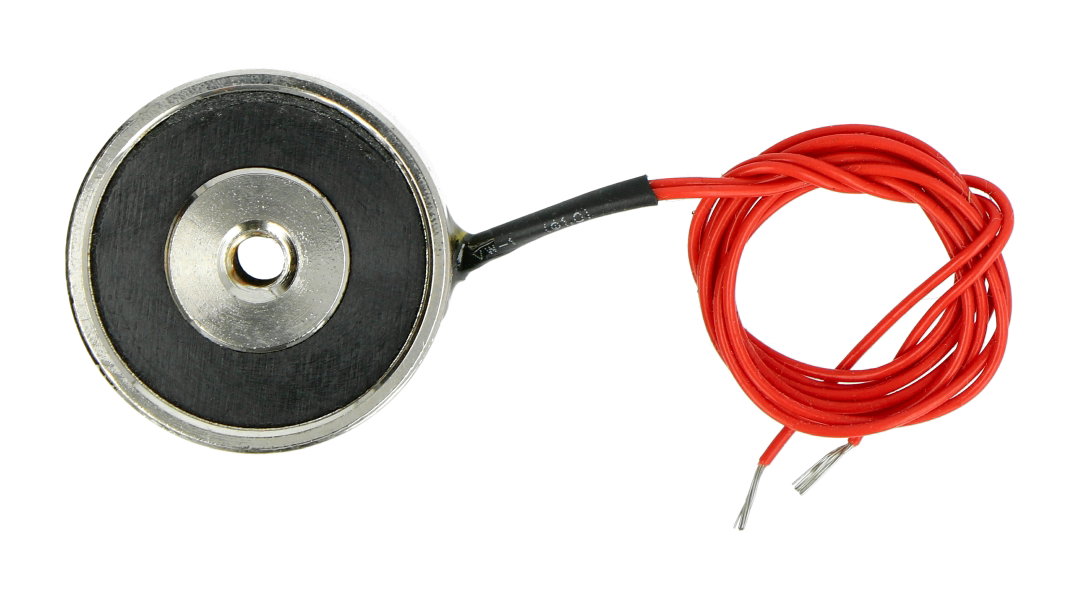

Holding electromagnet 12V 2W 5kgf .
Electromagnet holding a load .
12V Holding Solenoid Specification
- Supply voltage: 12V
- Power: 2W
- Current consumption: approx. 170 mA
- Load capacity: 5 kgf (holds a mass of 5 kg for a gravitational acceleration of 9.8 m/s 2 )
- Cables with stripped insulation at the ends, approx. 30 cm long
- Mounting hole with M4 thread (screw included)
- Dimensions: 25 x 11 mm
- Weight: 28 g
|
Attention ! The manufacturer recommends maintaining good heat dissipation from the housing, because as the coil temperature increases, the holding force decreases. |
