Electromagnet holding 12V 6W 60kgf
Holding electromagnet with a rated power of 6 W. It requires a voltage pulse of 12 V to operate. With a standard acceleration due to gravity of 9.8 m/s 2, the maximum lifting capacity of the electromagnet is approximately 60 kg . The device in the housing has a mounting hole with an M6 thread, and the set also includes an appropriate screw. The dimensions of the product are 50 x 30 mm.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product Description: Holding electromagnet 12V 6W 60 kgf
Holding electromagnet with a rated power of 6 W. It requires a voltage pulse of 12 V to operate. With a standard acceleration due to gravity of 9.8 m/s 2, the maximum lifting capacity of the electromagnet is approximately 60 kg . The device in the housing has a mounting hole with an M6 thread, and the set also includes an appropriate screw. The dimensions of the product are 50 x 30 mm. The electromagnet can be used as an actuator of any microcontroller, including: Arduino . However, it should be taken into account that due to the relatively high power consumed by the magnet, it should not be connected directly to the microcontroller pins. In such a connection, it is necessary to use one of the following electronic elements: relay , optocoupler or transistor amplifier .

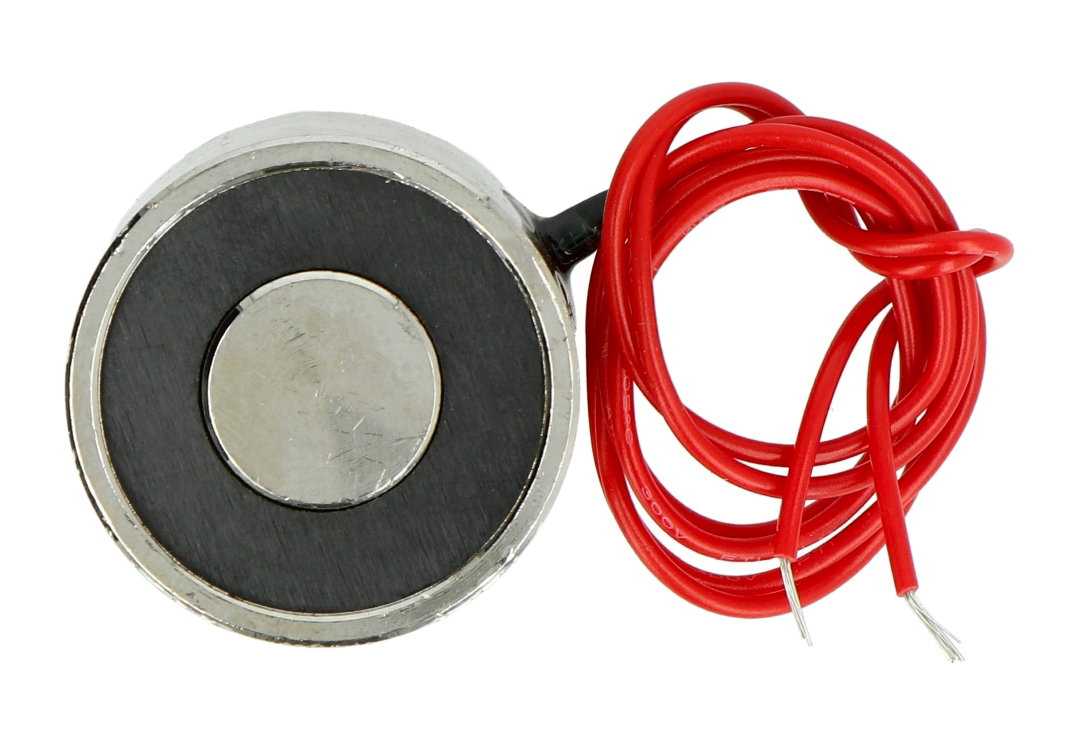

Holding electromagnet 12V 6W 60kgf .
Electromagnet holding a load .
12V Holding Solenoid Specification
- Supply voltage: 12V
- Power: 6W
- Current consumption: approx. 600 mA
- Load capacity: 60 kgf (holds a mass of 60 kg for a gravitational acceleration of 9.8 m/s 2 )
- Cables with stripped insulation at the ends, approx. 30 cm long
- Mounting hole with M6 thread (screw included)
- Dimensions: 50 x 30 mm
- Weight: 325 g
Attention ! The manufacturer recommends maintaining good heat dissipation from the housing, because as the coil temperature increases, the holding force decreases. |
Useful links
| Name | Value |
|---|---|
| Width | 5.3 cm |
| Height | 6 cm |
| Depth | 3.5 cm |
| Weight | 0.36 kg |
