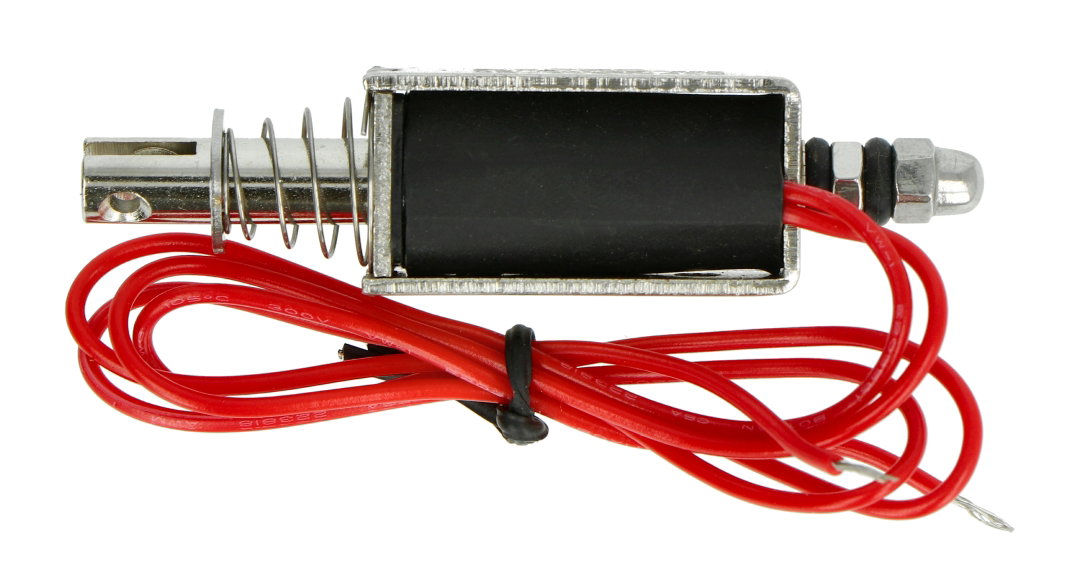

Product description: Tractive electromagnet 12 V 0.6 kg
Electromagnet, which after giving a voltage signal of12 V, allows for linear motion - pulling. The range of the device's pin is10 mmand its maximum load capacity is 0.6 kg. During operation the electromagnet draws about0.6 Acurrent. There are mounting holes in the solenoid housing. The screws and washers are included in the set.
Pulling solenoid 12 V 0.6 kg.
Specifications of the towing electromagnet
- Power supply voltage: 12 V
- Current drawn: 0,6 A
- Maximum power: 7.2 W
- Range of the pin: 10 mm
- Load capacity: 0.6 kg
- Body dimensions: 30 x 13 x 15 mm
- There are mounting holes in the enclosure
- Weight: 29 g
|
Attention! Solenoid consumes a relatively high current, so connecting directly to the microcontroller's outputs will lead to permanent damage to the system. |
