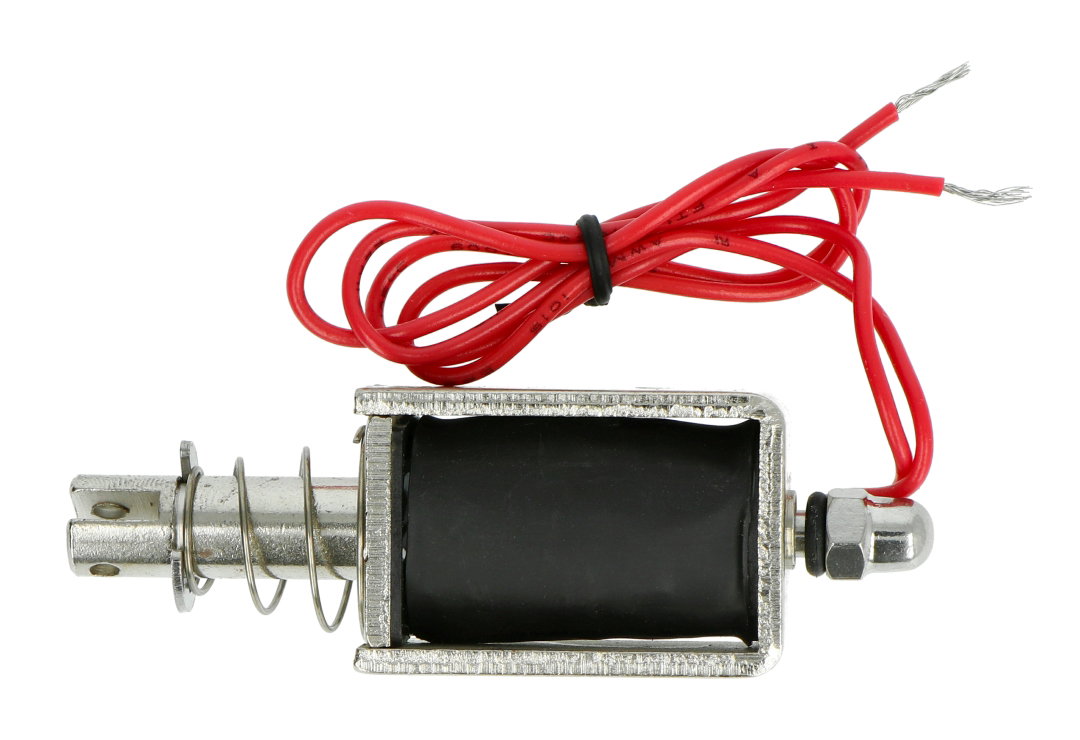

Product description: Tractive electromagnet 12 V 8.4 W 3.5 kg
A device which, under the influence of providing a12-voltvoltage pulse, performs a pulling linear motion. The range of theelectromagnetpin is12 mmand its maximum load capacity is3.5 kg. The value of current drawn during operation is approx.0.7 A. In the metal body of the device there are holes for easy assembly. The set includes screws and washers.
Pulling solenoid 12 V 3,5 kg.
Pulling electromagnet specifications
- Power supply voltage: 12 V
- Current drawn: 0,7 A
- Maximum power: 8.4 W
- Range of the pin: 12 mm
- Load capacity: 3.5 kg
- Body dimensions: 39 x 20 x 26 mm
- There are mounting holes in the enclosure
- Weight: 108 g
|
Attention! Solenoid consumes a relatively high current, so connecting directly to the microcontroller's outputs will lead to permanent damage to the system. |
