Product description: ATTEN ST-8800D Hot Air Soldering Station with Fan in Flask - 800 W
Hot air solderingstation(hotair) with acapacity of 800 W, equipped with an easy to read LED display. The operating temperature of the station can be adjusted from 100°C to 500°C. The device is compact in size and does not take up much space. The station has a built-in fan in the flask driven by a brushless motor. It allows to obtain a uniform stream of air.
Presentation of ATTEN ST-8800D.
Advantages of ATTEN soldering station
- Large, easy to read LCD screen which displays basic operating parameters
- Built-in sensor, which automatically switches to sleep mode (auto sleep) when the hotair flask is put on the holder
- A fan driven by a brushless motor ensures an even stream of air
- Adjustable airflow stages (from 10% to 100%)
- Automatic high air volume cooling function. Allows you to effectively protect against accelerated wear of the heating core and handle
- The device is controlled with a precise knob and keys located on the front panel of the device
- A password protection function and a key lock prevent unauthorized access to the device
- Do not immediately start up the equipment upon delivery.
- The equipment should be left at room temperature for approximately 12 hours before start-up.
- Any fault report caused by premature start-up will be rejected.
ATTEN ST-8800D Hotair Station Specifications
- Supply voltage: 230 V AC / 50 Hz
- Power: 800 W
- Temperature operating range: from 100°C to 500°C
- Temperature accuracy: ± 35°C
- Temperature control method: with a knob and buttons on the housing
- Air flow: 120 litres/minute
- Adjustment range of airflow volume: from 10% to 100%
- Detection of open circuit of the temperature sensor
- Sound alarm
- Three buttons to store three temperature/flow volume values
- Error signaling:
- S-E: sensor failure
- H-E: heater failure
- Weight: 1.5 kg

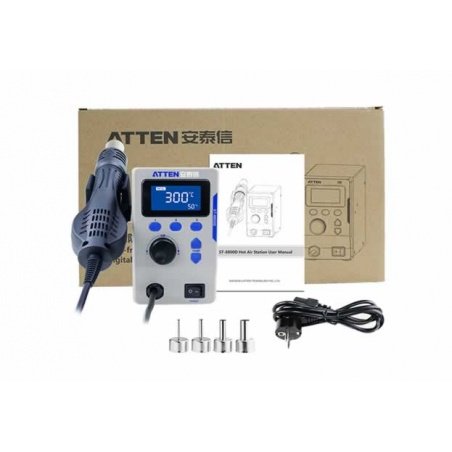

Contents of the kit
- Hotair soldering station ATTEN ST-8800D - 800 W - 1 pc.
- Hotair flask holder - 1 pc.
- Power cord - 1 pc.
- Hotair nozzles - 4 pcs.
