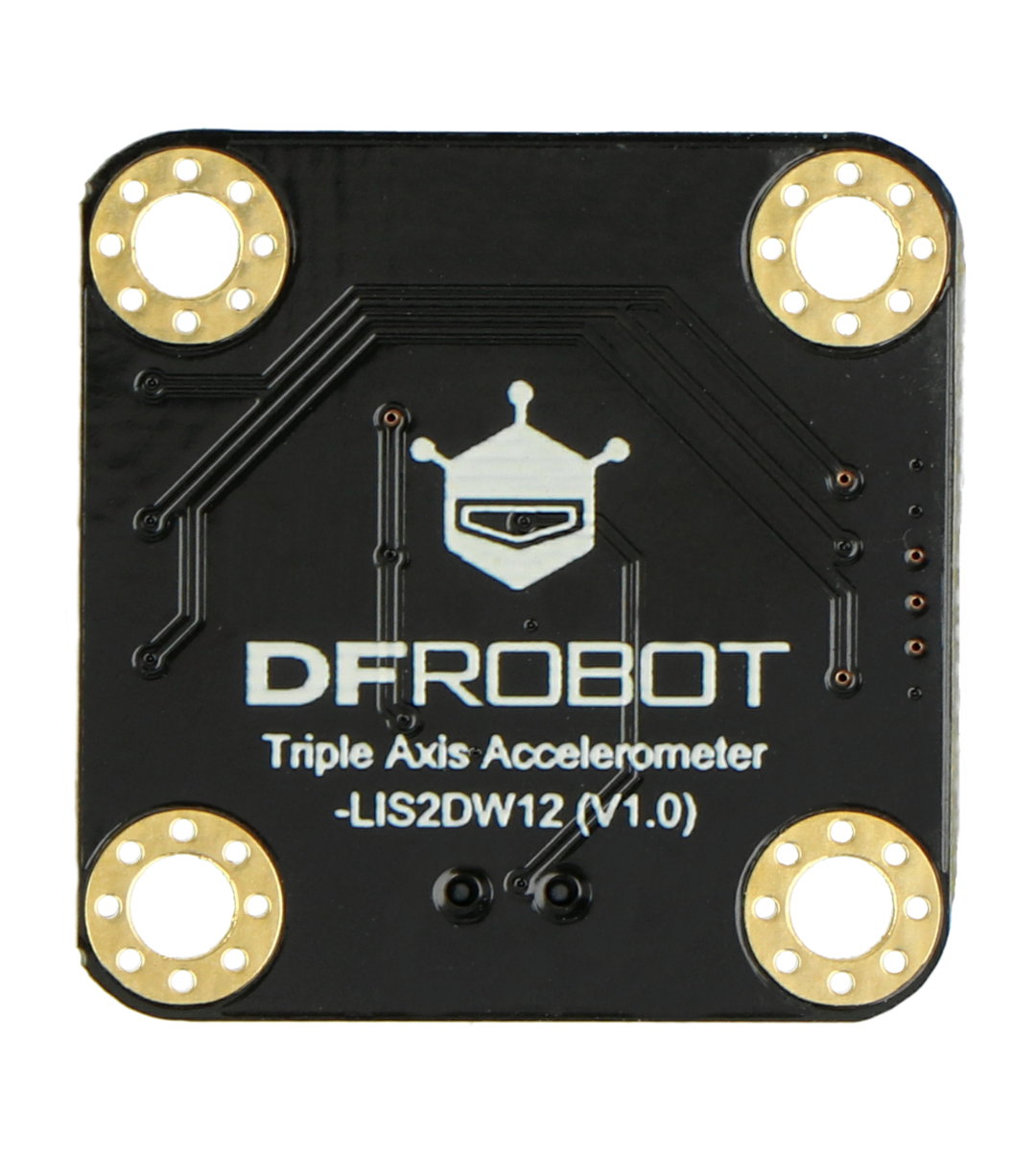

Gravity - LIS2DW12 - 3-axis accelerometer ±2g/±4g/±8g/±16g - I2C - DFRobot SEN0409
Gravity module in a form of 3-axis accelerometer, which allows to measure linear acceleration. It has a built-in LIS2DW12 chip (belonging to the popular LIS series) and is powered by a voltage range of 3.3 V to 5 V. Additionally, the sensor from DFRobot has the ability to measure acceleration in the range of ± 2 g / ± 4 g / ± 8 g / ± 16 g. The measurement frequency ranges from 1.6 Hz to 1600 Hz.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Gravity - LIS2DW12 - 3-axis accelerometer ±2g/±4g/±8g/±16g - I2C - DFRobot SEN0409
Gravity module in a form of 3-axis accelerometer, which allows to measure linear acceleration. It has a built-in LIS2DW12 chip (belonging to the popular LIS series) and is powered by a voltage in the range of 3.3 V to 5 V. Additionally, the sensor from DFRobot has the ability to measure acceleration in the range of ± 2 g / ± 4 g / ± 8 g / ± 16 g. The measurement frequency ranges from 1.6 Hz to 1600 Hz.
Suggested application
- Free fall detection
- Activity detection and recording
- Single/double touch detection
- Self-balancing robot
- Aircraft
- Human Activity Detection
- 6D / 4D orientation detection

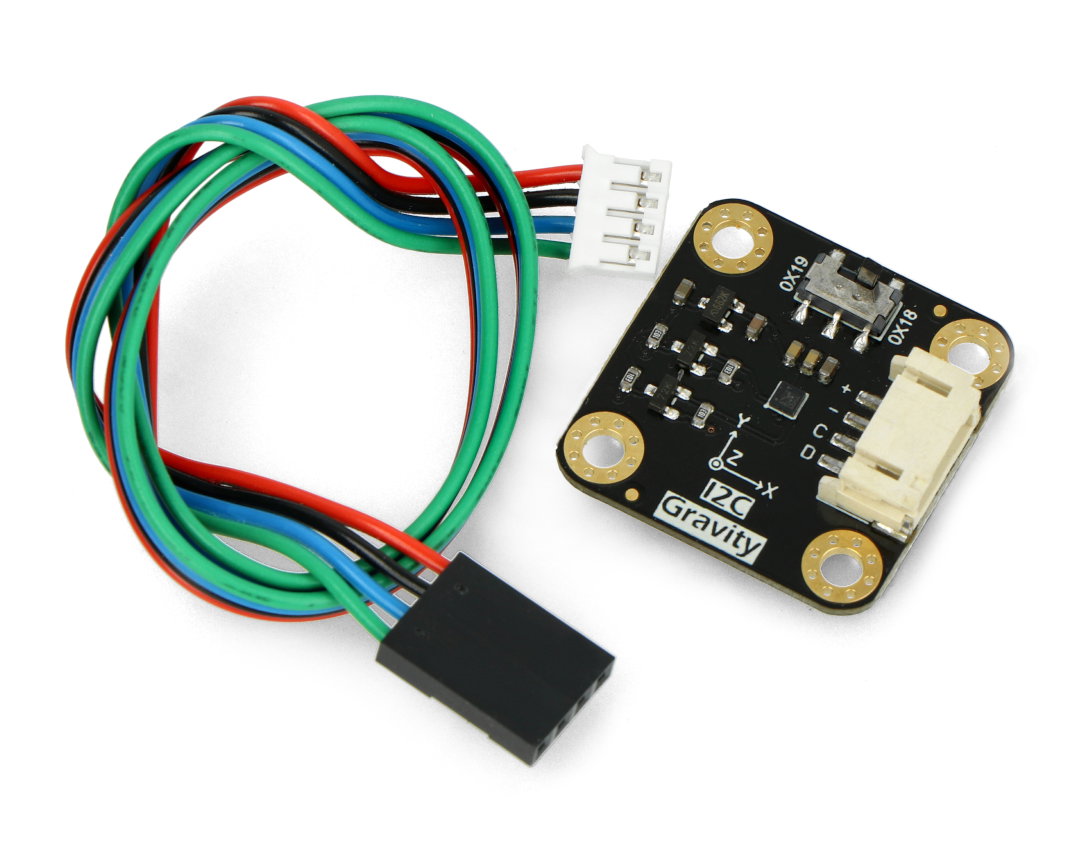

Gravity - LIS2DW12 - 3-axis accelerometer included with dedicated connection cable.
Botland is an official distributor of DFRobot open-source hardware. Every roboticist and practitioner of emerging technology has heard at least once of DFRobot solutions, built above all around Arduino. Our range holds original DFRobot products only.
Connection of accelerometer with Firebeetle-M0 board using Gravity connector.

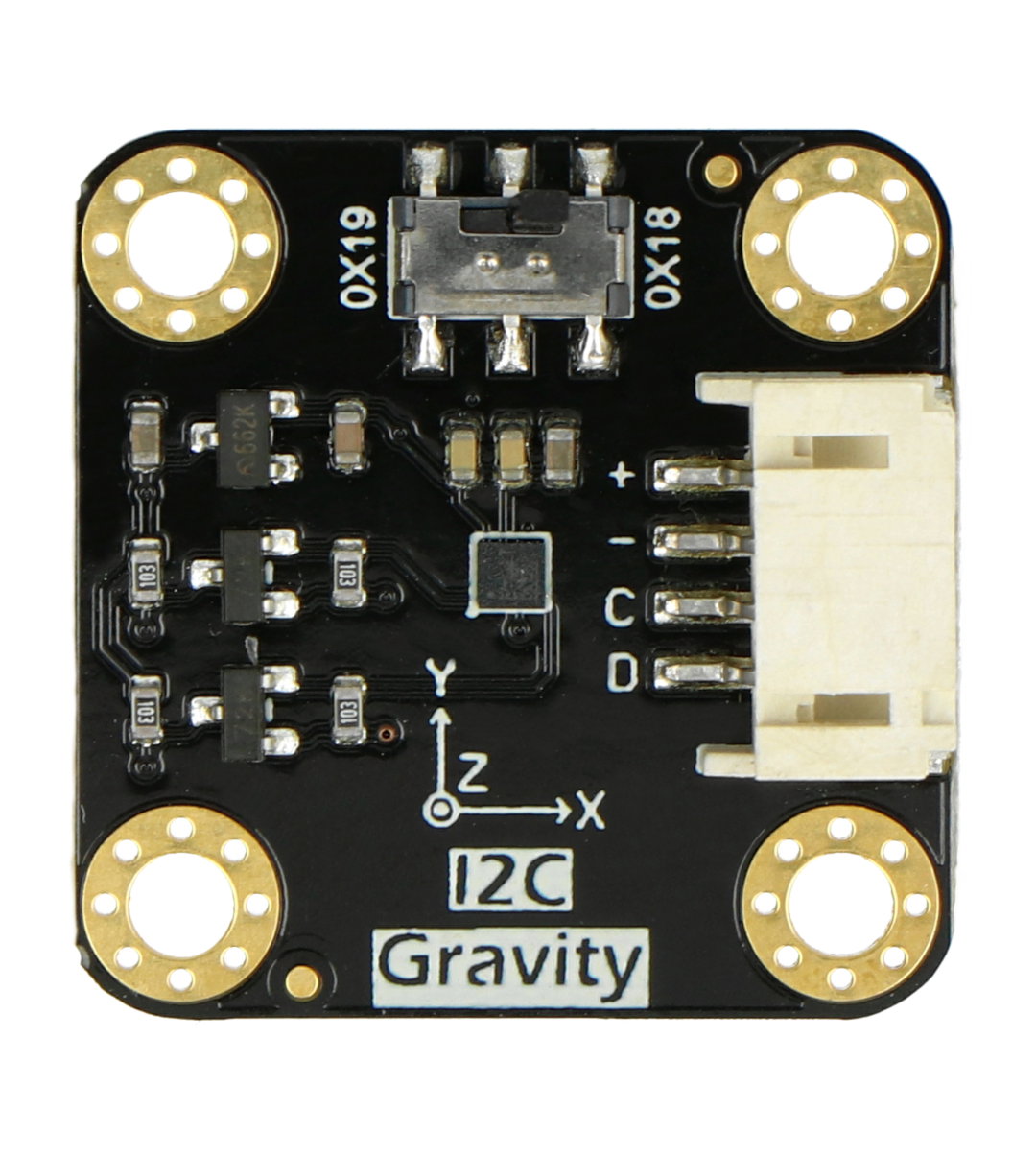

Leads description and connection diagram
The module has a Gravity compliant connector. Thanks to it there is no need to solder additional connectors, and whole connection process is much faster and more comfortable.
- VCC/+ - power pin in 5 V / 3.3 V
- GND/- - chip mask
- SCL/C - I2C communication interface clock line
- SDA/D - I2C communication interface data line
Set contents
- Gravity - H3LIS200DL - 3-axis accelerometer - I2C - from DFRobot
- Gravity 4-pin I2C/UART connection cable - 1 pc.
Product compatible with Adruino, Raspberry and micro:bit from BBC
A detailed user guide is available on the manufacturer's website, which makes getting started with the module much easier. There are also libraries for the various development environments available for download on GitHub.
What is accelerometer? What is it used for?
Accelerometer is a sensor that allows to determine selected body parameters. We're talking about acceleration measurement (in three axes), so the term accelerometer is used interchangeably. Accelerometer is a transducer that measures linear acceleration, that is, it measures its own motion. Not sure where an accelerometer is used? It's easy - you can even find one in your mobile phone.
You can learn more about accelerometer in the article available on our blog - welcome!
What is accelerometer? Answers to this question can be found on Botland blog!
Equipped with Gravity connector.
Technical specification of Gravity sensor from DFRobot
- Module type: accelerometer
- Purpose: to measure linear acceleration
- Embedded chip: LIS2DW12
- Acceleration measurement range: ± 2 g / ± 4 g / ± 8 g / ± 16 g
- Measuring frequency: 1.6 Hz to 1600 Hz
- Supply voltage range: 3.3 V to 5 V
- Operating current:
- 8 µA to 10 µA in low power mode
- approximately 0.12 mA in high performance mode
- Connector standard: Gravity
- Communication interface: I2C bus
- I2C interface address:
- 0x19 (default)
- 0x18 (optional)
- 16-bit data output
- Operating temperature range: -40°C to 85°C
- Shock resistance 10000 g
- Sleep and wake-up function
- Very low noise level: 1.3 mg RMS (low power consumption mode)
- 32-level FIFO
- ECOPACK, RoHS and Green compliant
- Module dimensions: 27 x 27 mm
- Mounting hole size:
- inner diameter: 3.1 mm
- external diameter: 6 mm
Useful links
| Name | Value |
|---|---|
| Voltage to | 3.3 V |
| Voltage from | 5.0 V |
| Sensor - type | accelerometer |
| Width | 5.6 cm |
| Height | 2.5 cm |
| Depth | 6.2 cm |
| Weight | 0.013 kg |
