Step-Down Voltage Regulator D24V25F5 - 5V 2,5A - Pololu 2850

Index: PLL-02753 EAN: 5903351242691

Step-down converter with 5 V output voltage. The maximum current is 2.5 A. The supply voltage is in the wide range from 6 V to 38 V. The module dimensions are 18 x 18 mm.

Step-Down Voltage Regulator D24V25F5 - 5V 2,5A - Pololu 2850
€36.00 -25%
€21.95 tax excl.
Lowest price 30 days: €25.88
Shipping in 24 hours
PayPal payment
D24V25F inverter - voltage:
Manufacturer: Pololu

Product description: Polol D24V25F5 - step-down converter - 5V 2.5A.

A step-down converter (buck) used to supply power to systems operating at 5 V. The advantage of the system is a wide range of input voltages from 6 V to 38 V.

D24V25F5 module allows for current consumption up to 2.5 A. In our offer there is also a step-down system D24V50F5 withmaximumoutput current up to 5 A.

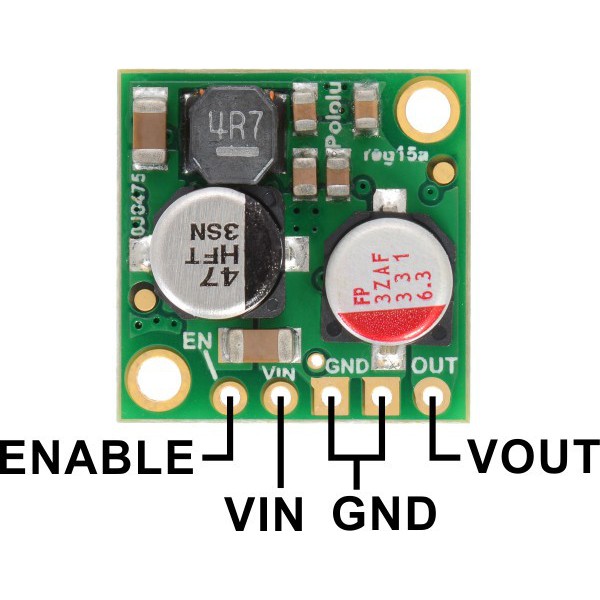

Pin Description
VIN Input voltage from 6.0 V to 38 V.
GND Mass potential.
VOUT Output voltage.
ENABLE If a low voltage of less than 0.6 volts is applied), the system will go into a low power consumption state (approx. 20 μA). The pin is pulled to the supply voltage through a 100 kΩ resistor, which makes the system switched on by default.

Przetwornica impulsowa step-down wyprowadzeniami goldpin

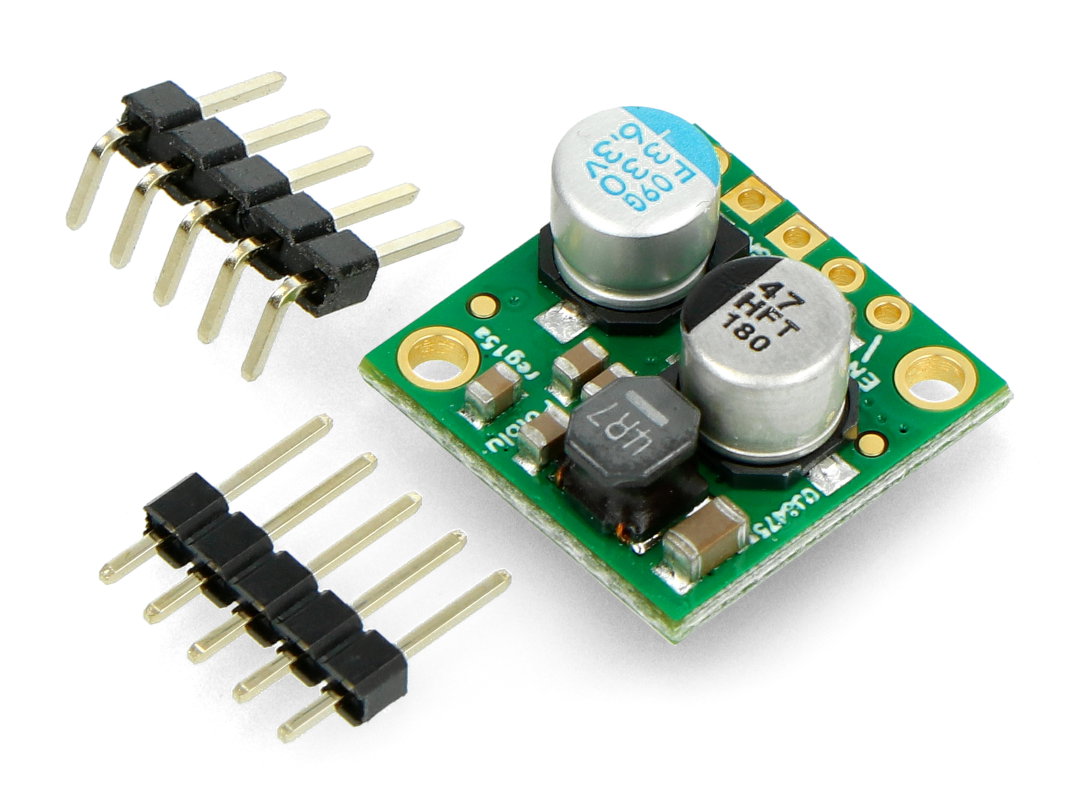

The connectors are properly signed on the board. Outputs are 2.54 mm (popular goldpin connectors). The module can be plugged into acontactboard,connected with wiresor soldered intoa dedicated PCB.

Przetwornica impulsowa step-down wyprowadzeniami goldpin

System efficiency

Efficiency is defined as the ratio of output power to input power (Power out)/(Power in). This is a very important parameter when working with portable energysources(batteries and accumulators), where the time of operation on one charging cycle counts. The efficiency of this pulse system is about 85 % - 95 %.

Voltage drop-out

The parameter referred to in the documentation asvoltag drop-outthennecessary for the proper functioning of the system,minimum difference between input and output voltage.For example, if the drop-out is 1 V and the desired output voltage is 5 V, the supply voltage should be higher than 6 V. The figures below show the drop-out voltage value for D24VxFx inverters.

Specifications of the D24V25F5 Polol step-down converter:

  • Input voltage: 6* V to 38 V
  • Output voltage: 5 V
  • Accuracy of output voltage: 4 %
  • Maximum input current: 2,5 A
  • Efficiency of 85 - 95 %
  • Integrated protection against excessive current, voltage and temperature
  • Two 2.2 mm diameter mounting holes
  • Dimensions: 18 x 18 x 9 mm
  • Weight (without connectors): 3,0 g

* minimum value depending on drop-out voltage

Length 18 mm
Width 18 mm
Height 9 mm
Voltage to 6.0 V
Voltage from 38 V
Voltage output from 5.0 V
Output voltage to 5.0 V
Nominal output voltage 5.0 V
Current 2.5 A
Stabilizer - Type2 switching
Stabilizer - Type step-down
Package width 8 cm
Package height 1 cm
Package depth 5 cm
Package weight 0.004 kg
