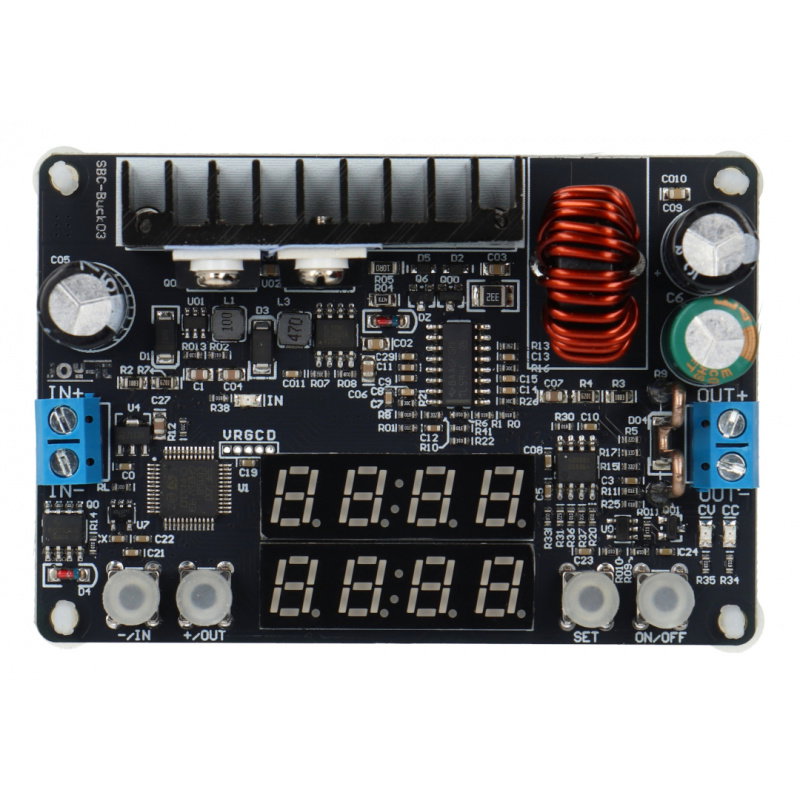

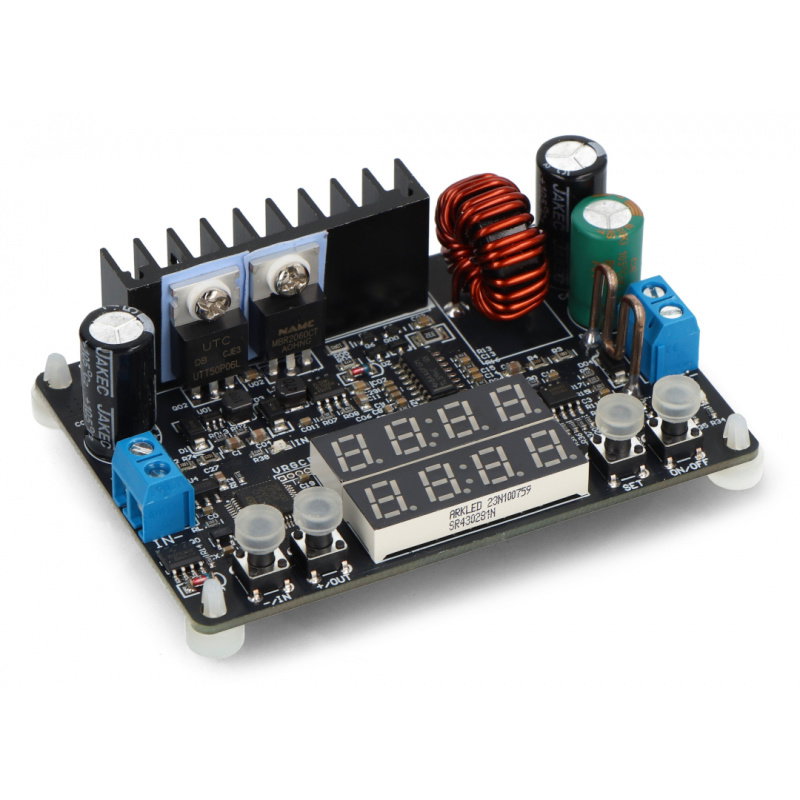

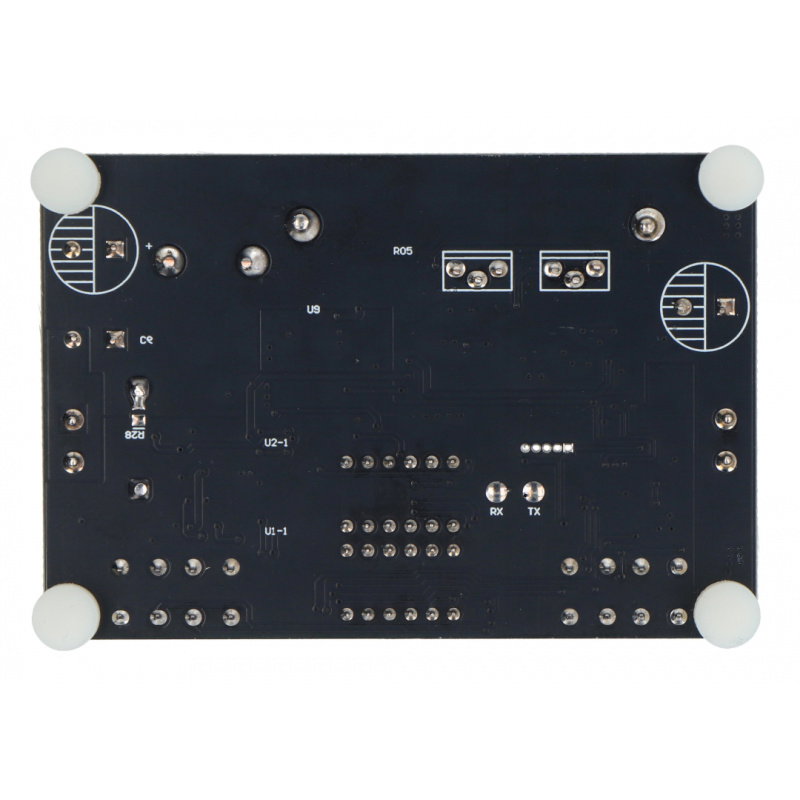

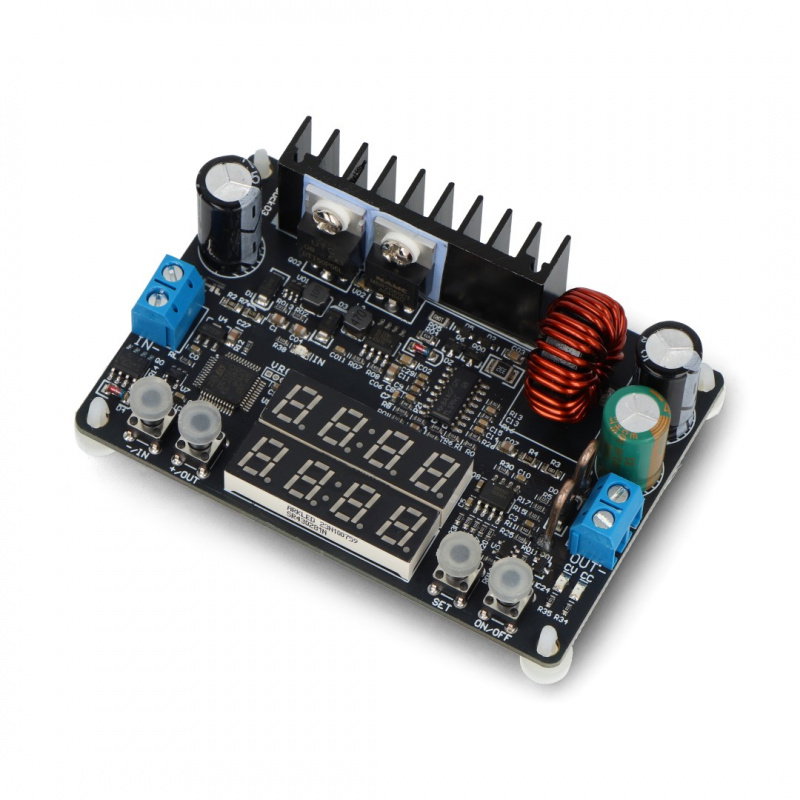

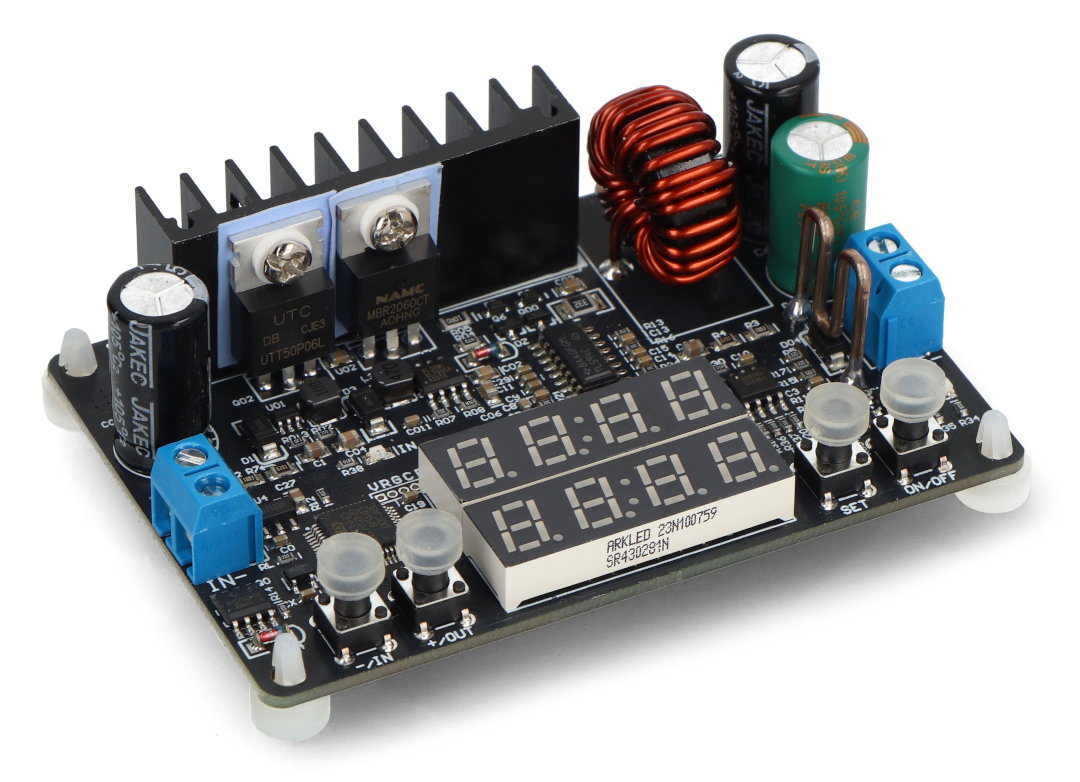

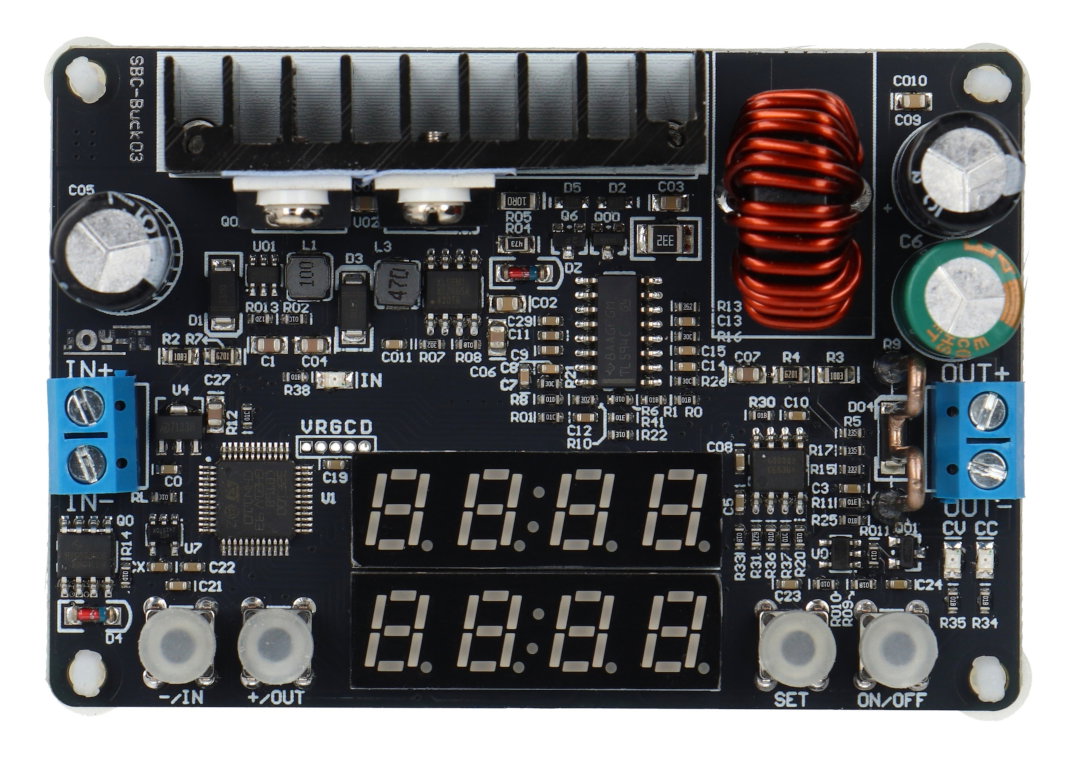

Product description: Step-down converter 6 V - 40 V / 0 V - 32 V - 5 A - 160 W - with LED display
The DC step-down converter is a practical power supply module designed for electronics, workshop, and laboratory projects. It converts an input voltage from 6V to 40V DC to an adjustable output voltage ranging from 0V to 32V DC , allowing it to power a wide range of electronic devices. The module offers a maximum output current of 5A and a maximum output power of 160W , making it suitable for more demanding applications.
The converter is equipped with easy-to-read segmented LED displays that allow for real-time monitoring of input voltage, output voltage, and output current . Supporting constant voltage (CV) and constant current (CC) modes, the module can function as a regulated power source, current limiter, test system, or auxiliary component for battery charging.
Step-down converter 6 V - 40 V / 0 V - 32 V - 5 A - 160 W - with LED display.
The DC step-down voltage converter is a practical power supply module designed for electronics, workshop and laboratory projects.Special features
- Wide input voltage range: Supports voltage from 6V to 40V DC
- Adjustable output voltage: voltage can be set from 0 V to 32 V DC
- Output current up to 5 A: ability to power devices requiring a higher current load
- Up to 160W output power: suitable for workshop, test and laboratory applications
- LED displays: view input voltage, output voltage and output current without additional meters
- CV and CC mode: constant voltage or constant current operation
- Fine adjustment: voltage resolution 0.01 V and current resolution 0.001 A
- Simple connection: 2 x 2-pin screw connectors for easy installation of input and output cables
Technical specifications
- Model: Step-down converter with adjustable output
- Special functions: current and voltage display on the module, constant voltage and constant current operation
- Input voltage: 6V to 40V DC
- Output voltage: 0 V to 32 V DC
- Maximum output current: 5 A
- Maximum output power: 160 W
- Conversion type: step-down
- Operating modes: CV - constant voltage, CC - constant current
- Display: segmented LED
- Read parameters: input voltage, output voltage, output current
- Connector: 2 x 2-pin screw connector
- Output voltage resolution: 0.01 V DC
- Output current resolution: 0.001 A
- Output voltage accuracy: ±(0.5% + 3 digits)
- Output current accuracy: ±(1% + 5 digits)
- Residual Ripple: 100 mVpp at 40 V to 32 V/5 A
- Input to output voltage ratio: x1.1
- Weight: 67 g
- Dimensions: 85 x 58 x 26 mm
The circuit allows the conversion of an input voltage from 6 V to 40 V DC to an adjustable output voltage ranging from 0 V to 32 V DC. Useful links |
