Product description: UPS Armac Home 1000F - 4 x Schuko socket - 230 V
UPS emergencypower supply with a capacity of1000 VA/650 W. Provides stable power supply for electrical equipment. It is used as anemergency power supply systemfor industrial and private use. It hasfour Schuko socketsandtwo RJ45 ports. The maximum transfer time is 10 ms, typically ranges from 2 ms to 6 ms. The device has two built-in12 V / 7 Ahbatteries. The use ofintegrated processor controltechnology allowstoquickly respond to the device, which corrects low or high voltage, spikes, power outages, overvoltage and UPS overloads.
Key features
- Rated capacity 1000 VA
- Line-Interactive (VI) topology
- 4 x 230V Schuko socket, 2x RJ45 (input/output)
- Overload, short circuit and discharge protection
- Self-restart when mains power returns
- Surge protection RJ45
- Built-in automatic voltage regulation (AVR)
- Charging in stand-by mode
Home Uninterruptible Power Supply (UPS).

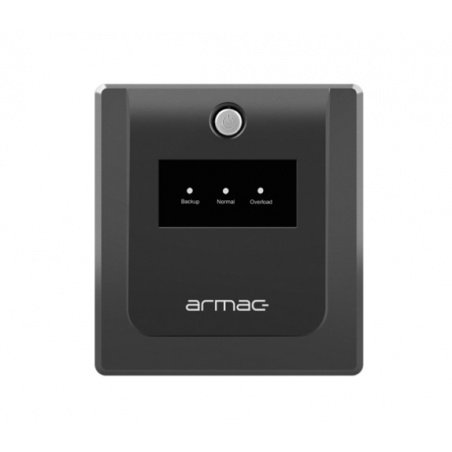

Three LEDs indicate operation.Technical specification of the Armac uninterruptible power supply
- Number of sockets: 4 x Schuko type, 2 x RJ45
- Communication with the computer: USB
- Power (apparent / active): 1000 VA / 650 W
- Output voltage: 230 V
- Output voltage shape: Simulated sine wave
- Transfer time: Typically 2 ms to 6 ms
- Output frequency: 50 Hz / 60 Hz
- Battery classification: 2 x 12 V / 7 Ah
- Battery charge time: 4 to 6 hours to 90% capacity
- Back-up time: 3 to 20 minutes depending on load
- Noise level: < 45 dB
- Monitoring software: PowerManager (recommended)
- Operating environment: Indoor
- Dimensions: 345 x 146 x 162 mm
- Weight: 8.5 kg
Software
The recommendedPowerManagersoftware is not included, but can be downloaded from themanufacturer's website. It allows monitoring of the UPS power status and its environment. A number of advantages include:
- Automatic email and SMS notification when the unit alarms
- Automatic AC mains failure detection
- Maintenance of the UPS event log and its analysis
- Setting of the operating time of the power supply
- UPS diagnostics

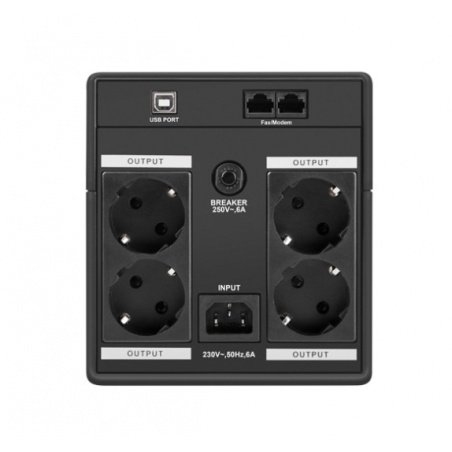

The UPS has four Schuko sockets.
