Product description: E-paper display - 3.52'' 360 x 240 px - black/white - SPI - Waveshare 22698

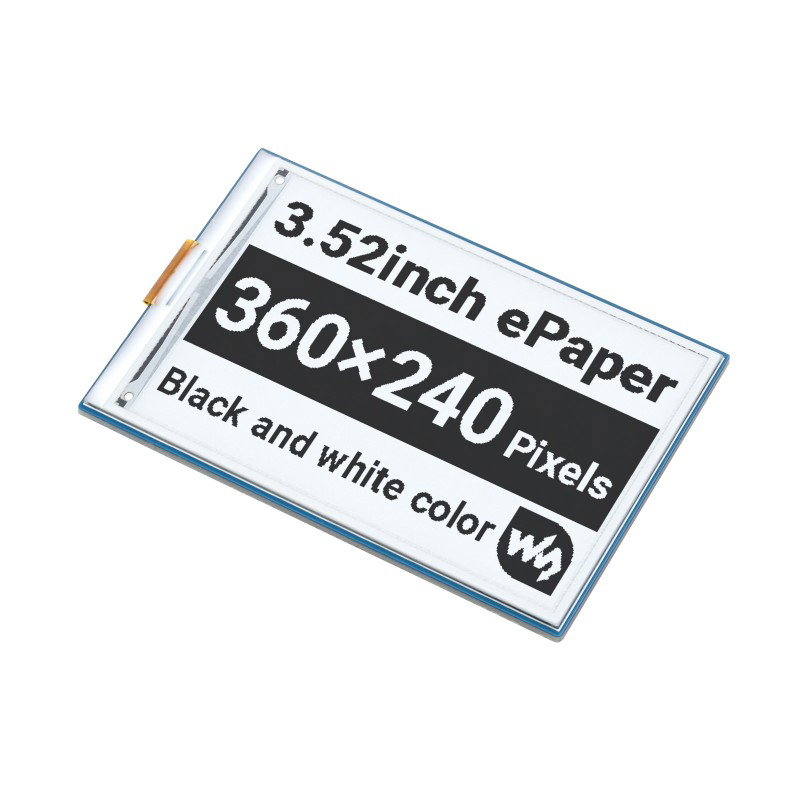

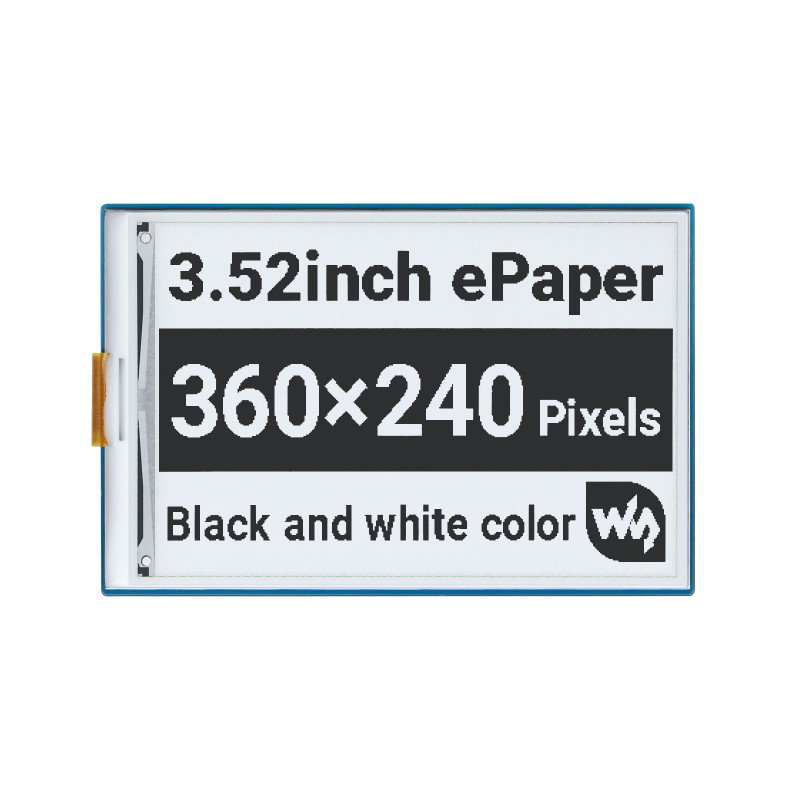

Two-colore-paper display from Waveshare . It is used in e-book readers and electronic magazines. The diagonal of the screen is 3.52 " , and the resolution is 360 x 240 px . The display uses the SPI interface for communication purposes and works with boards such as Raspberry Pi, Jetson Nano, Arduino, STM32, etc.
Product compatible with Raspberry Pi and Arduino!
The manufacturer provides a product wiki page that makes it easy to get started with the display - check it out!
E-paper display - 3.52'' 360 x 240 px - black/white - SPI - Waveshare 22698.
e-paper technology.
What is the "e ink e paper" display?
E-Paper displays use microcapsule electrophoretic technology for display: charged particles suspended in a clear liquid will move to the sides of the microcapsule when an electric field is applied, making the microcapsule visible by reflecting ambient light, just like traditional printed paper. The E-Paper Display clearly displays images/texts under lamp or natural light, no backlight required, and a viewing angle of nearly 170°. This type of display is typically used in e-book readers due to its paper-like effect.
Main features of the e-paper screen
- No backlight, it displays the last content for a long time, even when the power is disconnected
- Very low power consumption, power only required to refresh the image
- SPI interface, compatible with Arduino , Raspberry Pi , STM32 , Jetson Nano etc.
- Built-in voltage regulator compatible with 3.3V/5V boards
Suggested use
E-paper displays are characterized by very low power consumption, making them ideal for:
- Display labels and prices in supermarkets
- Presenting user data at conferences
- Representing disease descriptions and patient charts in hospitals
E-paper screens are characterized by very low energy consumption.

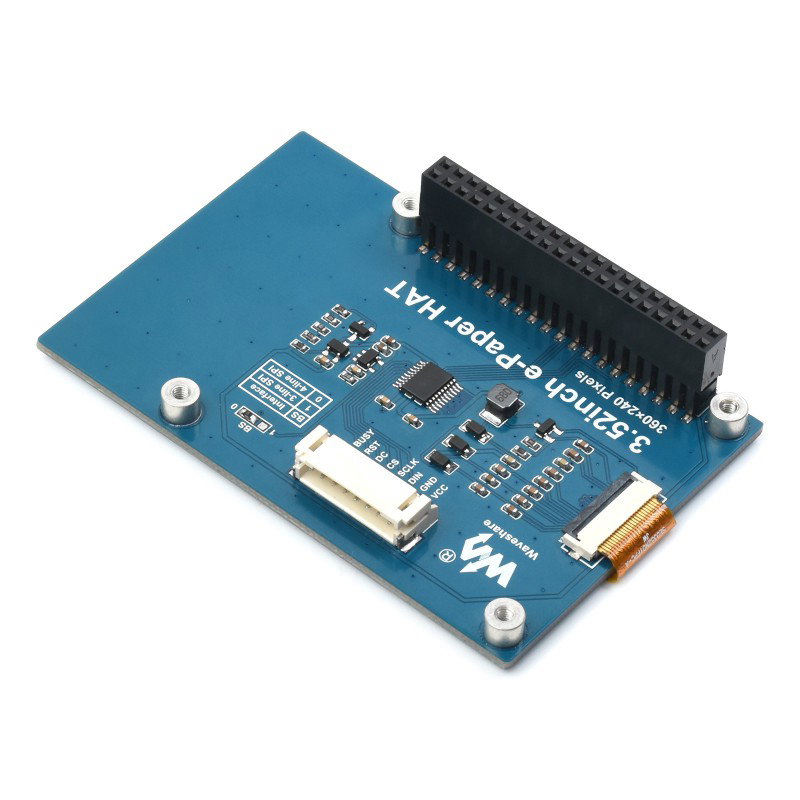

Shield leads.

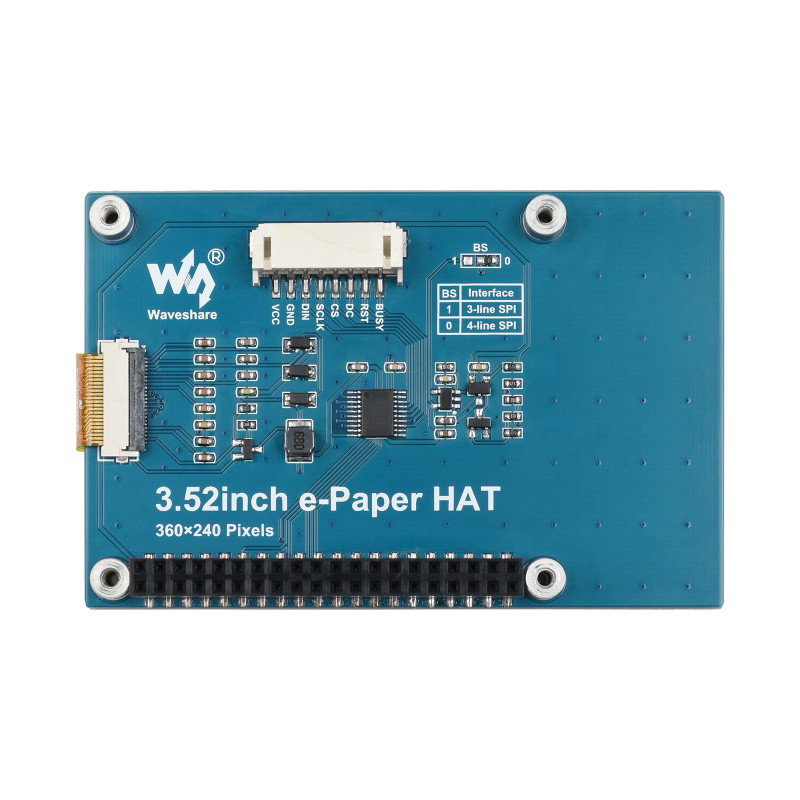

Pin description
- VCC - supply voltage 3.3 V / 5 V
- GND - system ground
- DIN - MOSI line of the SPI bus
- CLK - SCK line of the SPI bus
- CS - SPI chip selection (activated by low state)
- DC - data / command selection pin (high state for data, low state for commands)
- RST - reset, activated by low state
- BUSY - output pin of busy state, activated by high state
e-paper display specification
- Type: e-paper, passively reflective
- Supply voltage: 3.3 V or 5 V
- Interface: SPI
- Display color: black and white
- Diagonal: 3.52''
- Resolution: 360 x 240 px
- Grayscale: 2
- Full refresh time: 1.5 sec
- Refresh power consumption: less than 25mW
- Standby current consumption: less than 0.01 uA
- Viewing angle: over 170°
- Pixel dimensions: 0.207 x 0.207 mm
- Module dimensions: 86.5 x 57 mm
- Display dimensions: 74.51 x 49.67 mm
Kit contents
- E-paper display - 3.52'' 360 x 240 px - black/white - SPI
- 8-pin connection cable, 20 cm long
