Description: Gravity - I2C converter - 2x UART - DFRobot DFR0627.
A module that allows to derive twoUART interfaces fromthe I2C interface. The maximum transmission speed is 1 Mb/s,each UART interface has an independent FIFO buffer256 B fordata transmission and reception. A maximum of four modules can be connected to one microcontroller, leading out 8 hardware UART ports. Module compatible withArduino,Raspberry Pi,micro:bit.

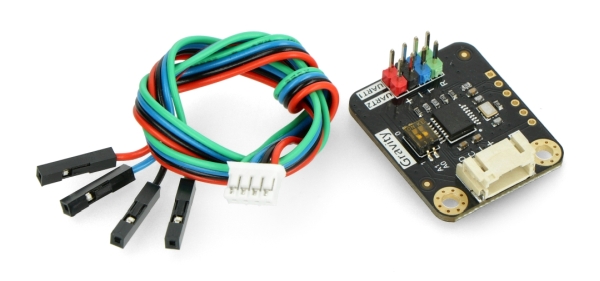

The set includes I2C - 2x UART converter module and Gravity cable.
|
Product compatible with Arduino The manufacturer provided auser guidewith a sample code for Arduino. |

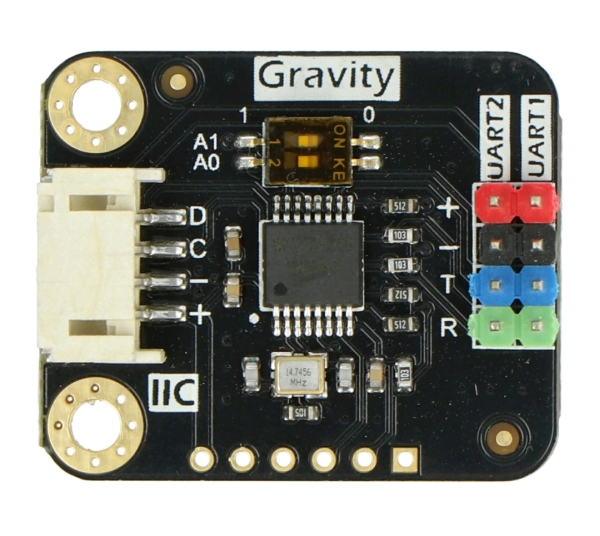

Connecting the converter
The device converts the I2C interface to two UART serial interfaces. There is a Gravity connector on the board for easy connection of the module with microcontroller.
| Pin | Description |
|---|---|
| + | Supply voltage from 3.3 V to 5.5 V |
| - | The weight of the system. |
| T | Pin for sending UART interface data. |
| R | Pin for receiving UART interface data. |
| D | I2C interface data line. |
| C | Clock line of the I2C interface. |
| + | Supply voltage from 3.3 V to 5.5 V |
| - | The weight of the system. |
Main features of the converter
- I2C - 2x UART
- Communication speed up to 2 Mb/s
- Expandable to up to 8 UART interfaces
- Independent sending / receiving of data for each UART interface
- Independent communication speed and sentence length settings for each UART interface
Converter specification
- Supply voltage: 3.3 V to 5.5 V
- Operating current: up to 3 mA
- Communication port: Gravity 4-pin I2C
- Expanded ports: 2x UART
- Operating temperature: -40°C to 85°C
- Dimensions: 32.5 x 27 mm
The set includes
- I2C converter module - 2x UARt
- Gravity 4-pin cable
