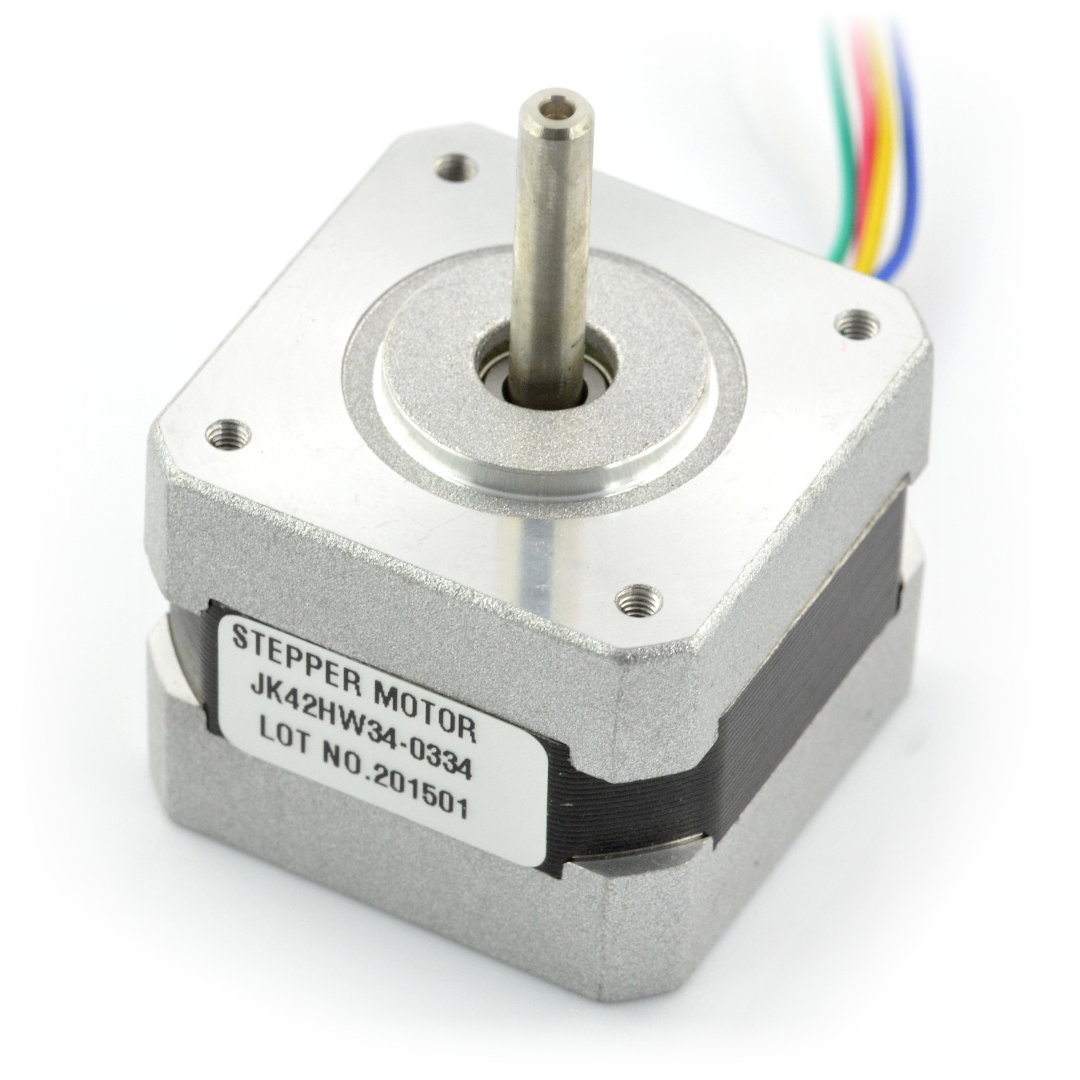

Stepper Motor JK42HW34-0334 200 steps 12V/0,33A/0,22Nm

Index: MOT-03616 EAN: 5904422332044

Bipolar stepper motor, four-wire. Has a resolution of 200 steps per revolution (1.8 degrees). Powered by 12 V, draws 330 mA per coil. Torque is 2.3 kg*cm (0.22 Nm). Dimensions are 42 x 42 x 34 mm (NEMA 17).

Stepper Motor JK42HW34-0334 200 steps 12V/0,33A/0,22Nm
€14.90
€12.11 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: OEM

Product description: Stepper motor JK42HW34-0334 200 steps/rev 12 V / 0.33 A / 0.22 Nm

Bipolar stepper motor, four-wire. Has a resolution of 200 steps per revolution (1.8 degrees). Powered by 12 V, draws 330 mA per coil. Torque is2.3 kg*cm(0.22 Nm). Dimensions are 42 x 42 x 34 mm (NEMA 17).

Stepper motor specification JK42HW34-0334 200

  • Resolution: 200 steps/rev (1.8°)
  • Rated voltage: 12 V
  • Current consumption per coil: 0,33 A
  • Coil resistance 34 Ω
  • Winding inductance: 46 mH
  • Holding torque 2.3 kg*cm (0.22 Nm)
  • Outputs: bipolar (four wires)
  • Shaft diameter: 5 mm
  • Weight: 200 g
  • Standard: NEMA 17
  • Dimensions: 42 x 42 x 34 mm (without shaft)

Technical drawing and detailed data are available in thedocumentation.

Silnik krokowy JK42HW34-0334 200 kroków/obr 12V / 0,33A / 0,22Nm

Stepper motor JK42HW34-0334 200 steps/rev 12 V / 0.33 A / 0.22 Nm.

Accessories

Our shop also offers accessories to make stepper motors easier to use:

Sterowniki silników krokowych

Use of stepper motors:

  • printers
  • CNC equipment
  • 3D printers
  • lasers
  • manipulators

Length 42 mm
Width 42 mm
Height 34 mm
Voltage to 12.0 V
Voltage from 12.0 V
Torque 2,25 kg*cm
Mass 200 g
Motor - shaft 5.0 mm
Voltage nominal 12 V
Stepper - current: 0.33 A
Stepper - coil resist. 34 Ω
Stepper - resolution 200 steps
Stepper - induct. 46 mH
Stepper - fixing NEMA17
Stepper - type bipolar
Test 3
Package width 4 cm
Package height 7 cm
Package depth 5 cm
Package weight 0.222 kg
