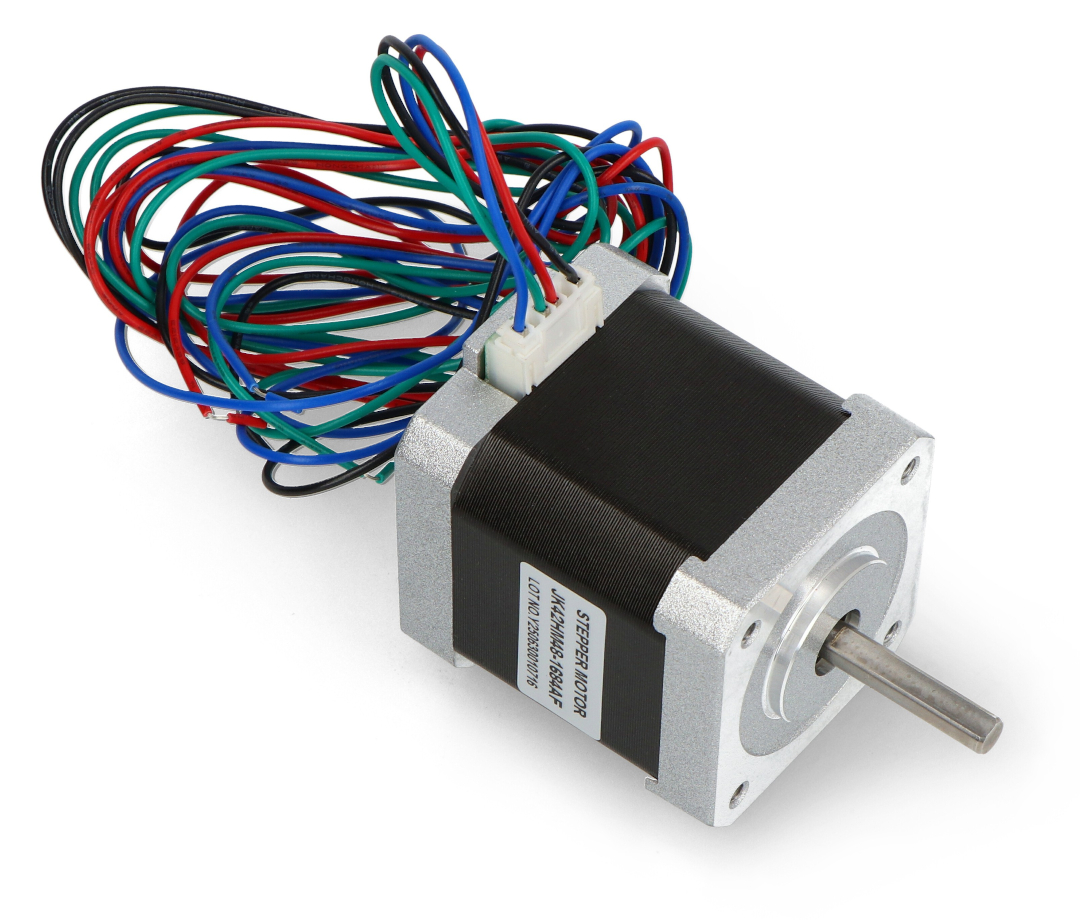

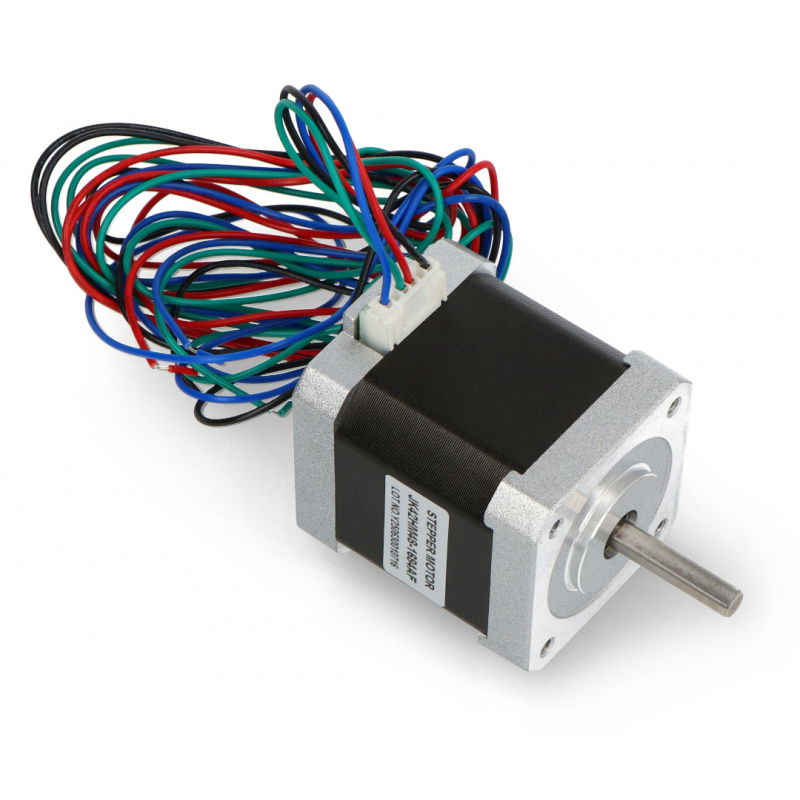

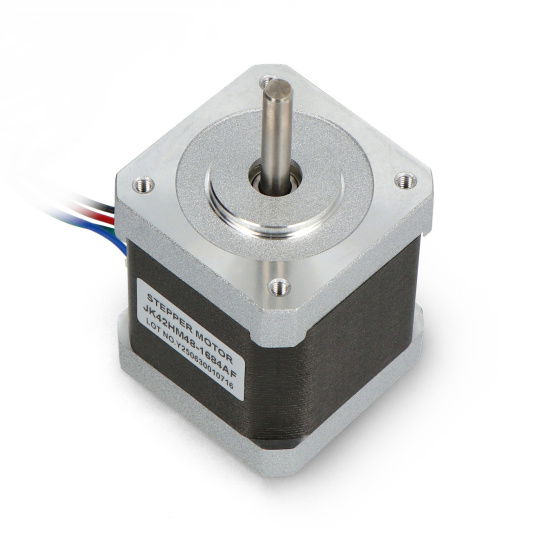

Stepper Motor JK42HM48-1684 400 steps 3,0V/1,68A/0,43Nm
This four-wire, bipolar stepper motor has a resolution of 400 steps per revolution (0.9 degrees). It operates at 3.0 V and draws 1680 mA per coil. It has a torque of 4.4 kgf-cm (0.43 Nm). Dimensions are 42 x 42 x 48 mm (NEMA 17).
We could not load the price.
The promotional price does not combine with quantity discounts.

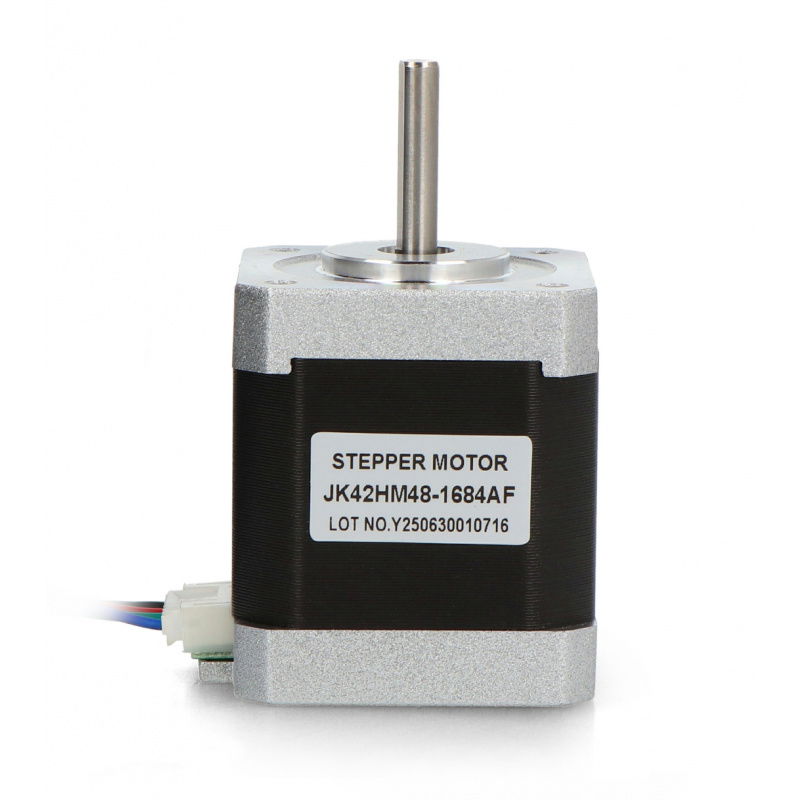

Product description: Stepper motor JK42HM48-1684AF 400 steps/rev 3.0 V / 1.68 A / 0.43 Nm
This bipolar, four-wire stepper motor has a resolution of 400 steps per revolution (0.9 degrees). It operates at 3.0 V and draws 1680 mA per coil. Its torque is 4.4 kgf cm (0.43 Nm). Dimensions are 42 x 42 x 48 mm.
Accessories
Our store also offers accessories that facilitate the operation of stepper motors:
- 5mm mounting hub - allows you to mount mechanical components on the motor shaft
- Stepper motor controller – easy-to-use, compact modules that allow you to control direction, speed, and resolution. We've also prepared instructions for connecting various types of stepper motors.
Stepper motor JK42HM48-1684AF 400 steps/rev 3.0 V / 1.68 A / 0.43 Nm.
JK42HM48-1684AF stepper motor specifications
- Resolution: 400 steps/rev (0.9°)
- Nominal voltage: 3.0 V
- Current consumption per coil: 1.68 A
- Coil resistance 1.65 Ω
- Winding inductance: 4.1 mH
- Holding moment 4.4 kg*cm (0.43 Nm)
- Pinout: bipolar (four wires)
- Shaft diameter: 5 mm (D shaft)
- Weight: 350 g
- Standard: NEMA 17
- Dimensions: 42 x 42 x 48 mm (without shaft)
- Technical drawing and detailed data are available in the documentation .
Application of stepper motors:
- Printers
- CNC devices
- 3D printers
- Laser devices
- Manipulators
| Name | Value |
|---|---|
| Length | 42 mm |
| Width | 42 mm |
| Height | 48 mm |
| Voltage to | 3.0 V |
| Voltage from | 3.0 V |
| Torque | 4,4 kg*cm |
| Mass | 350 g |
| Motor - shaft | 5.0 mm |
| Voltage nominal | 3.0 V |
| Stepper - current: | 1.68 A |
| Stepper - coil resist. | 1.65 Ω |
| Stepper - resolution | 400 steps |
| Stepper - induct. | 4.1 mH |
| Stepper - fixing | NEMA17 |
| Stepper - type | bipolar |
| Width | 8.5 cm |
| Height | 5.5 cm |
| Depth | 8.5 cm |
| Weight | 0.372 kg |
