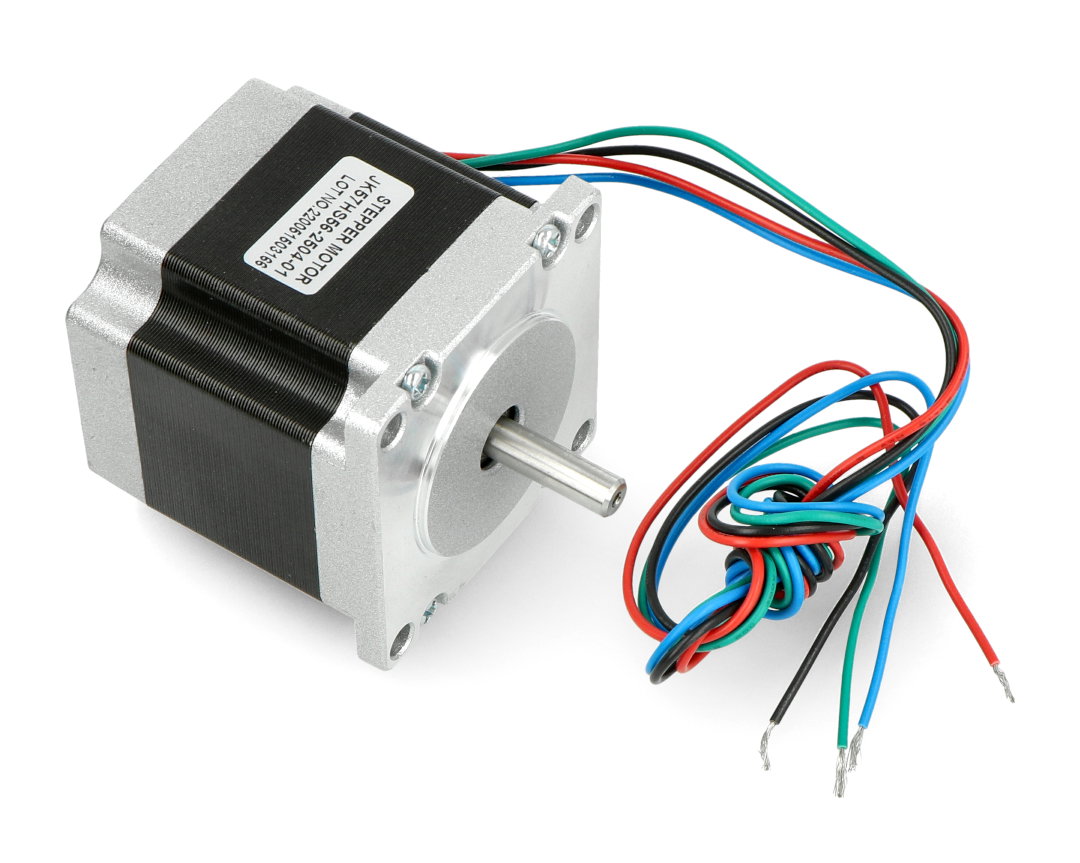

Stepper Motor JK57HS56-2504 200 steps 3,25V/2,5A/1,1Nm

Index: MOT-03651 EAN: 5904422356613

Bipolar stepper motor, four-wire. Has a resolution of 200 steps per revolution (1.8 degrees). Powered by 3.25 V, draws 2500 mA per coil. Torque is 11.2 kg*cm (1.1 Nm). Dimensions are 56 x 56 x 56 mm (NEMA 23).

Stepper Motor JK57HS56-2504 200 steps 3,25V/2,5A/1,1Nm
€22.79
€18.52 tax excl.
Available
Check quantity
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: OEM

Description: Stepper motor JK57HS56-2504 200 steps/rev 3.25 V / 2.5 A / 1.1 Nm

Bipolar stepper motor, four-wire. Has a resolution of 200 steps per revolution (1.8 degrees). Powered by 3.25 V, draws 2500 mA per coil. Torque is11.2 kg*cm(1.1 Nm). Dimensions are 56 x 56 x 56 mm (NEMA 23).

Stepper motor specification JK57HS56-2504

  • Resolution: 200 steps/rev (1.8°)
  • Rated voltage: 3,25 V
  • Current consumption per coil: 2,5 A
  • Coil resistance 1.3 Ω
  • Winding inductance: 4.2 mH
  • Holding torque 11.2 kg*cm (1.1 Nm)
  • Outputs: bipolar (four wires)
  • Shaft diameter: 6.35 mm
  • Weight: 680 g
  • Standard: NEMA 23
  • Dimensions: 56.4 x 56.4 x 56 mm (without shaft)

Technical drawing and detailed data are available in thedocumentation.

Silnik krokowy JK57HS56-2504 200 kroków/obr 3,25V / 2,5A / 1,1Nm

Stepper motor JK57HS56-2504 200 steps/rev.

Stepper motors are shipped randomly with or without a shaft bore.

Accessories

Our shop also offers accessories to make stepper motors easier to use:

Sterowniki silników krokowych

Application of stepper motors:

  • printers
  • CNC equipment
  • 3D printers
  • lasers
  • manipulators

Voltage to 3.25 V
Voltage from 3.25 V
Torque 11.2 kg*cm
Mass 680 g
Motor - shaft 6.35 mm
Voltage nominal 3.25 V
Stepper - current: 2.5 A
Stepper - coil resist. 1.3 Ω
Stepper - resolution 200 steps
Stepper - induct. 4.2 mH
Stepper - fixing NEMA23
Stepper - type bipolar
