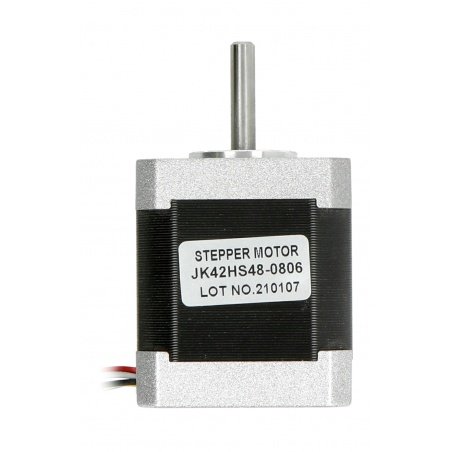

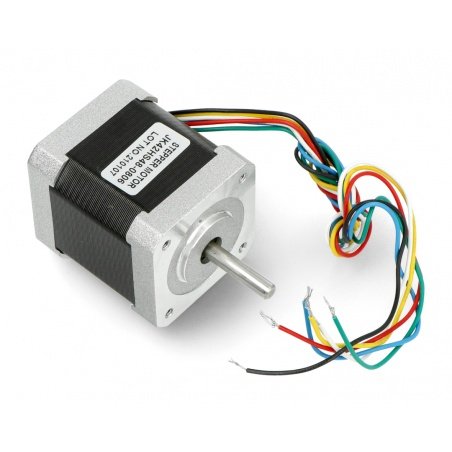

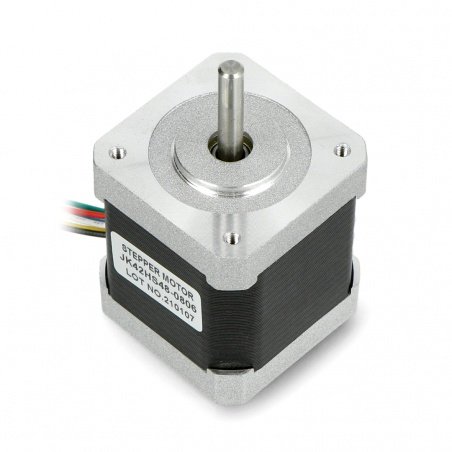

Stepper Motor JK42HS48-0806

Index: MOT-06426 EAN: 5904422359751

Unipolar stepper motor, six wire. It has a resolution of 200 steps per revolution (1.8 degrees). It is powered by 6 V and draws 800 mA current per coil. The torque is 3.17 kg*cm (0.31 Nm). Dimensions are 42 x 42 x 48 mm (NEMA 17).

Stepper Motor JK42HS48-0806
€18.50
€15.04 tax excl.
Delivery 5 pcs scheduled for 2024-06-10
Waiting for delivery
PayPal payment
Manufacturer: OEM

Product description: JK42HS48-0806 stepper motor 200 steps/rev 6,0 V / 0,8 A / 0,31 Nm

Unipolar stepper motor with six leads. It has a resolution of 200 steps per revolution (1.8 degrees). It is powered by 6 V and draws 800 mA current per coil. The torque is 3.17 kg*cm (0.31 Nm). Dimensions are 42 x 42 x 48 mm (NEMA 17).

Sterowniki silników krokowych

Accessories for the motor

There are also accessories available in our shop to make stepper motors easier to use:

  • 5 mm mounting hub - allows you to mount mechanical elements on the motor shaft
  • Stepper motordriver - simple to use, small modules allowing to control direction, speed and resolution. We have also prepared instructions for connecting different types of stepper motors.

Applications of stepper motors:

  • printers
  • CNC devices
  • 3D printers
  • laser devices
  • manipulators

Stepper motor specification JK42HS48-0806

  • Resolution: 200 steps/rev (1.8 °)
  • Rated voltage: 6 V
  • Current consumption per coil: 0,8 A
  • Coil resistance 7.5 Ω
  • Winding inductance: 6.3 mH
  • Holding torque 3.17 kg*cm (0.31 Nm)
  • Leads: unipolar (six wires)
  • Shaft diameter: 5 mm
  • Weight: 350 g
  • Standard: NEMA 17
  • Dimensions: 42 x 42 x 48 mm (without shaft)

Details in the technical documentation.

Stepper motor JK42HS48-0806 200 steps/rev 6.0 V / 0.8 A / 0.31 Nm.

Length 42 mm
Width 42 mm
Height 48 mm
Voltage to 6.0 V
Voltage from 6.0 V
Torque 3.17 kg*cm
Mass 350 g
Motor - shaft 5.0 mm
Voltage nominal 6.0 V
Stepper - current: 0.8 A
Stepper - coil resist. 7.5 Ω
Stepper - resolution 200 steps
Stepper - induct. 6.3 mH
Stepper - fixing NEMA17
Stepper - type unipolar
Package width 10 cm
Package height 6.3 cm
Package depth 7.3 cm
Package weight 0.373 kg
