Description: Gravity - IoT starter kit for micro:bit - DFRobot KIT0138.
Starting set for themicro:bitminicomputer. Allows you to createsimple IoT projects bynoviceusers. The kit includes such elements as: BBC board micro:bit,extension board micro:mate, WiFi Obloq module, soil moisture sensor, temperature sensor, motion sensor, relay, speaker, sound sensor andservo.
Starter kit content for micro:bit.
The kit comes with a micro:bit minicomputer, WiFi module and 7 sensors/elements that can be used to create IoT applications. In the MakeCode editor you can easily configure the internet connection and program micro:bit to work together with other sensors.
For even easier creation of IoT projects a free educational platform EasyIoT was created.The kit is compatible with hundreds ofGravity seriesdevices, giving your IoT applications infinite possibilities.
| L.p. | Photo | Name |
|---|---|---|
| 1 |  |

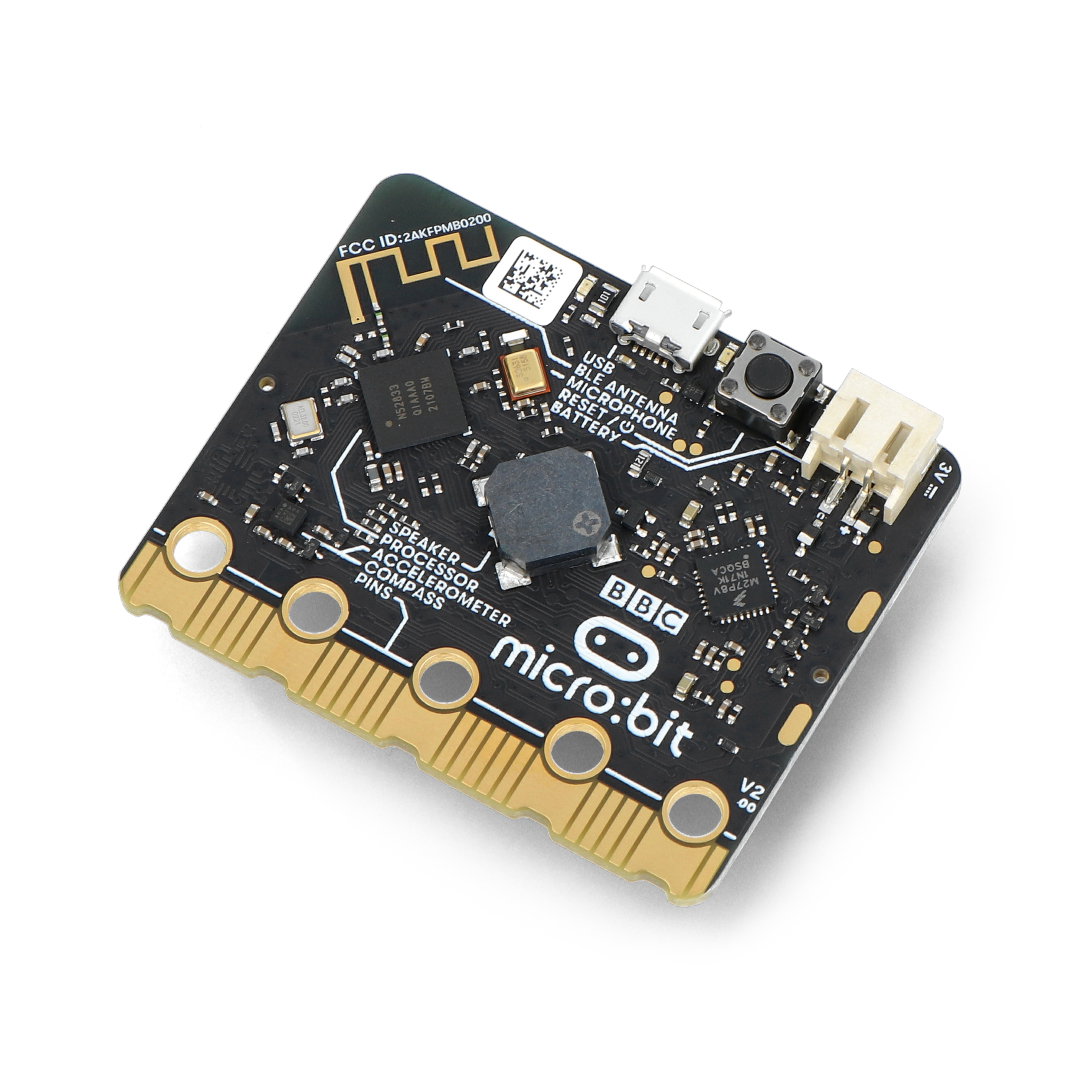

BBC micro:bit v2- a minicomputer designed to learn programming for the youngest. |
| 2 |  |

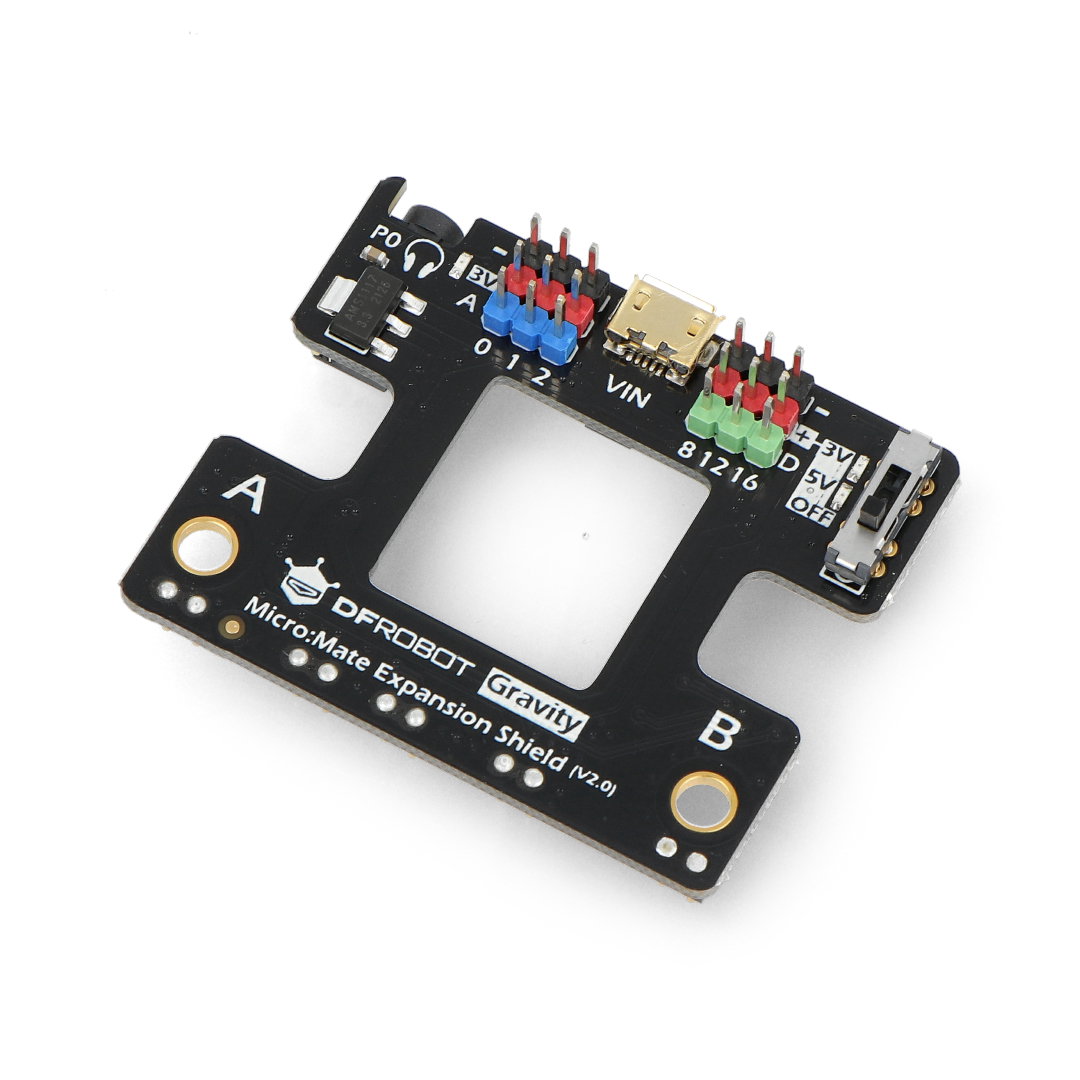

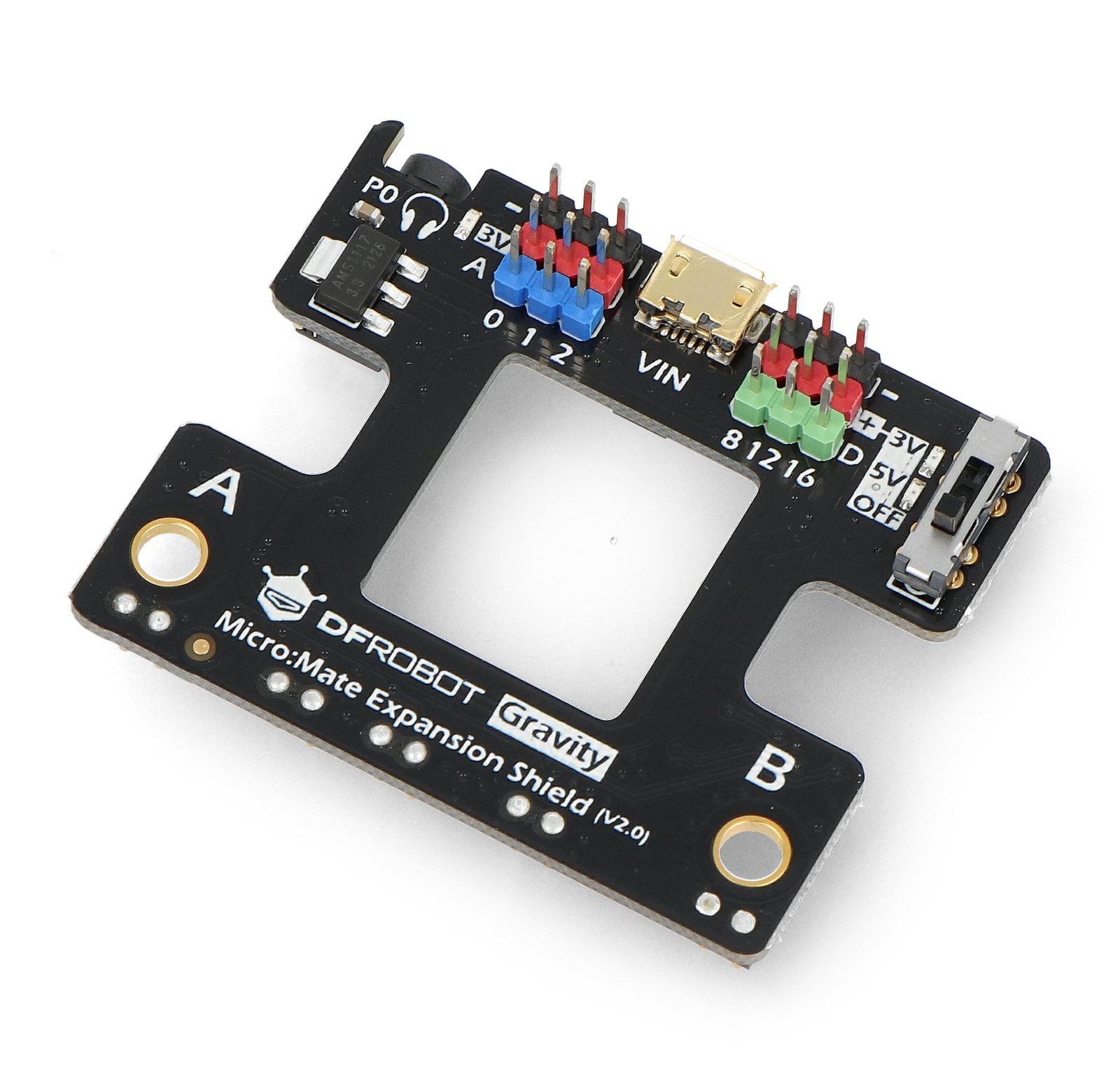

Micro:Mate- expansion board -I/O expansion board for micro:bit to learn electronics and build projects. |
| 3 |  |

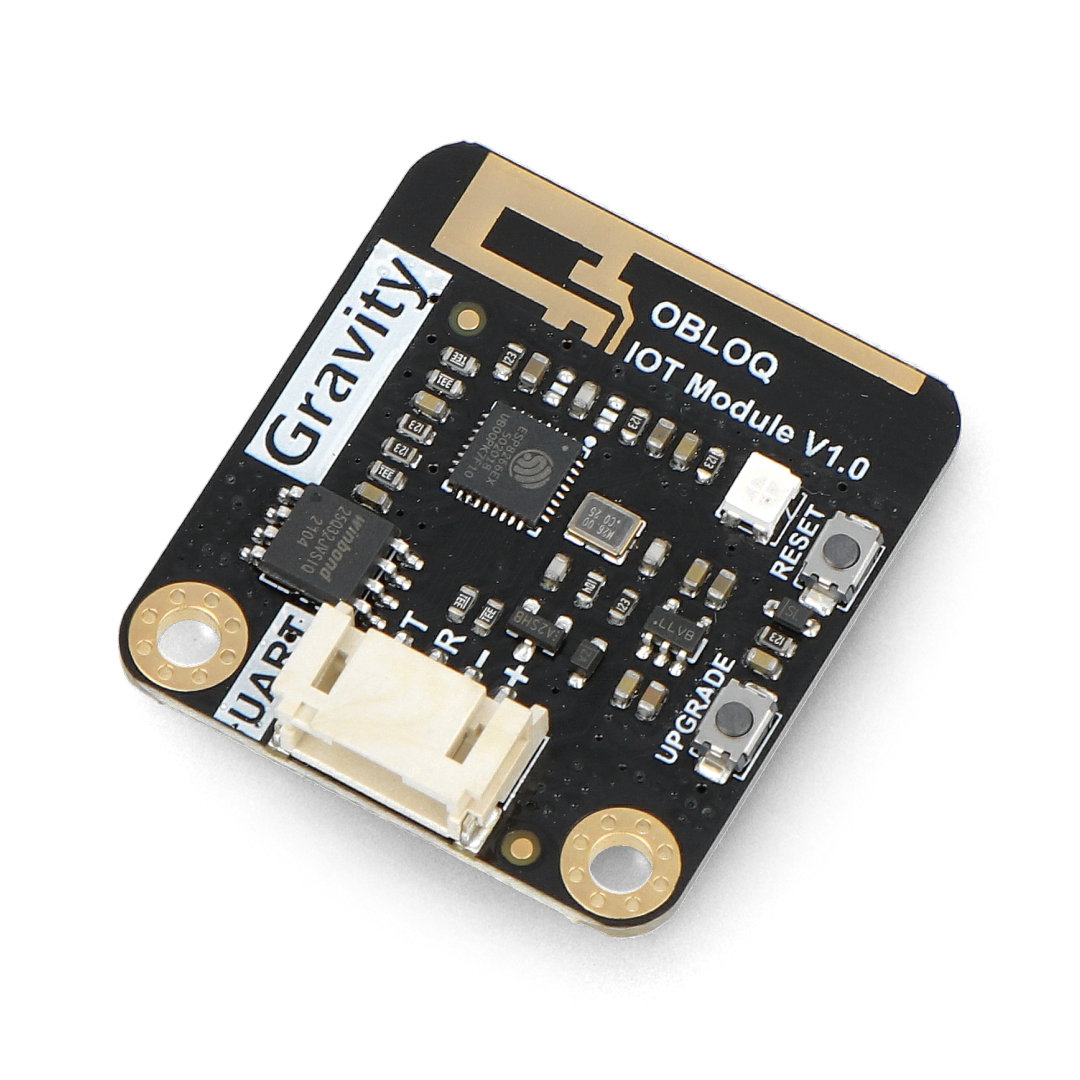

Obloq UART IoT module- theintroductionmoduleto the world of IoT (Internet of Things). It integrates mobile and network technology systems together to create an intelligent system. |
| 4 |  |

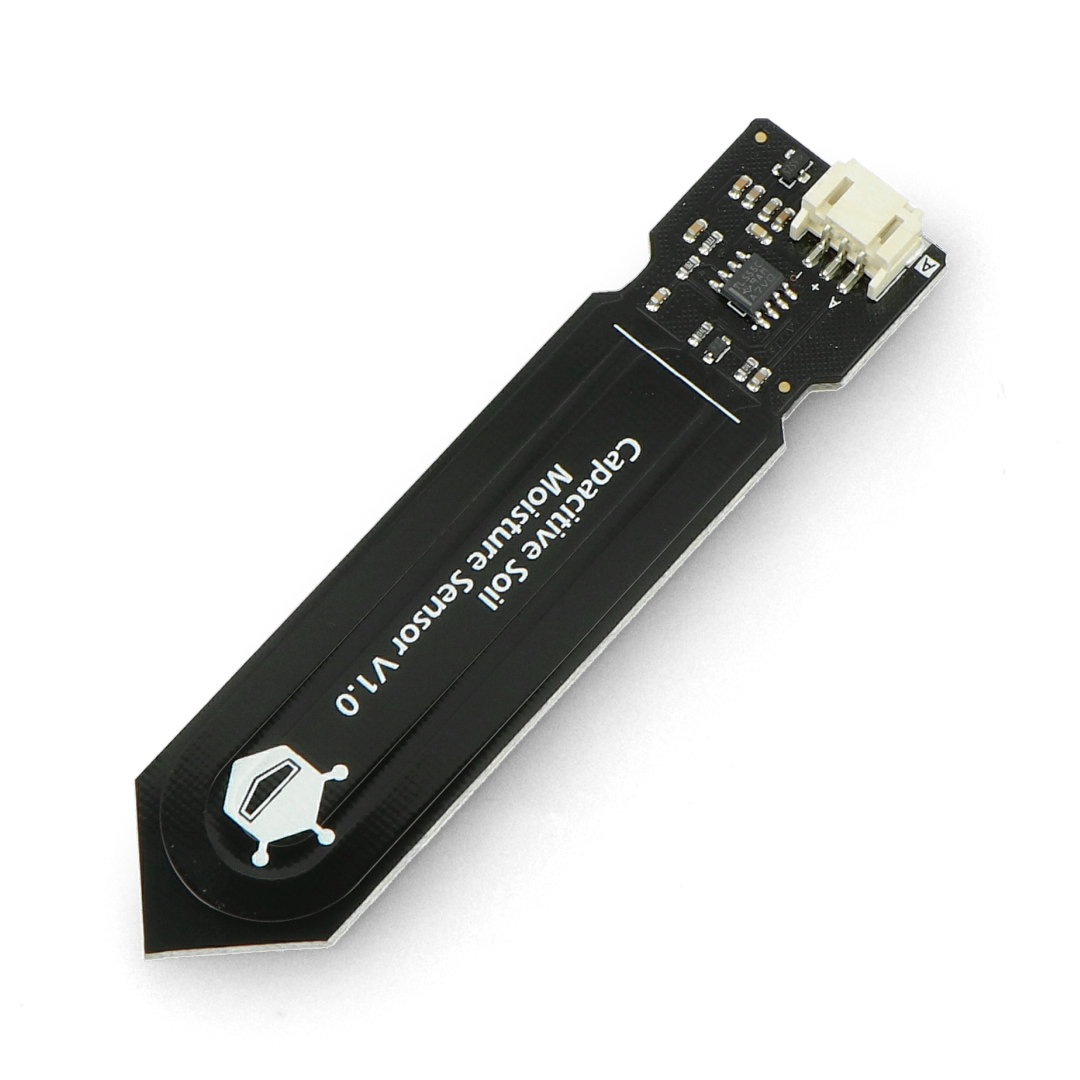

Analogue soil moisture sensor-the device is used to measure soil moisture through capacitive detection. |
| 5 |  |

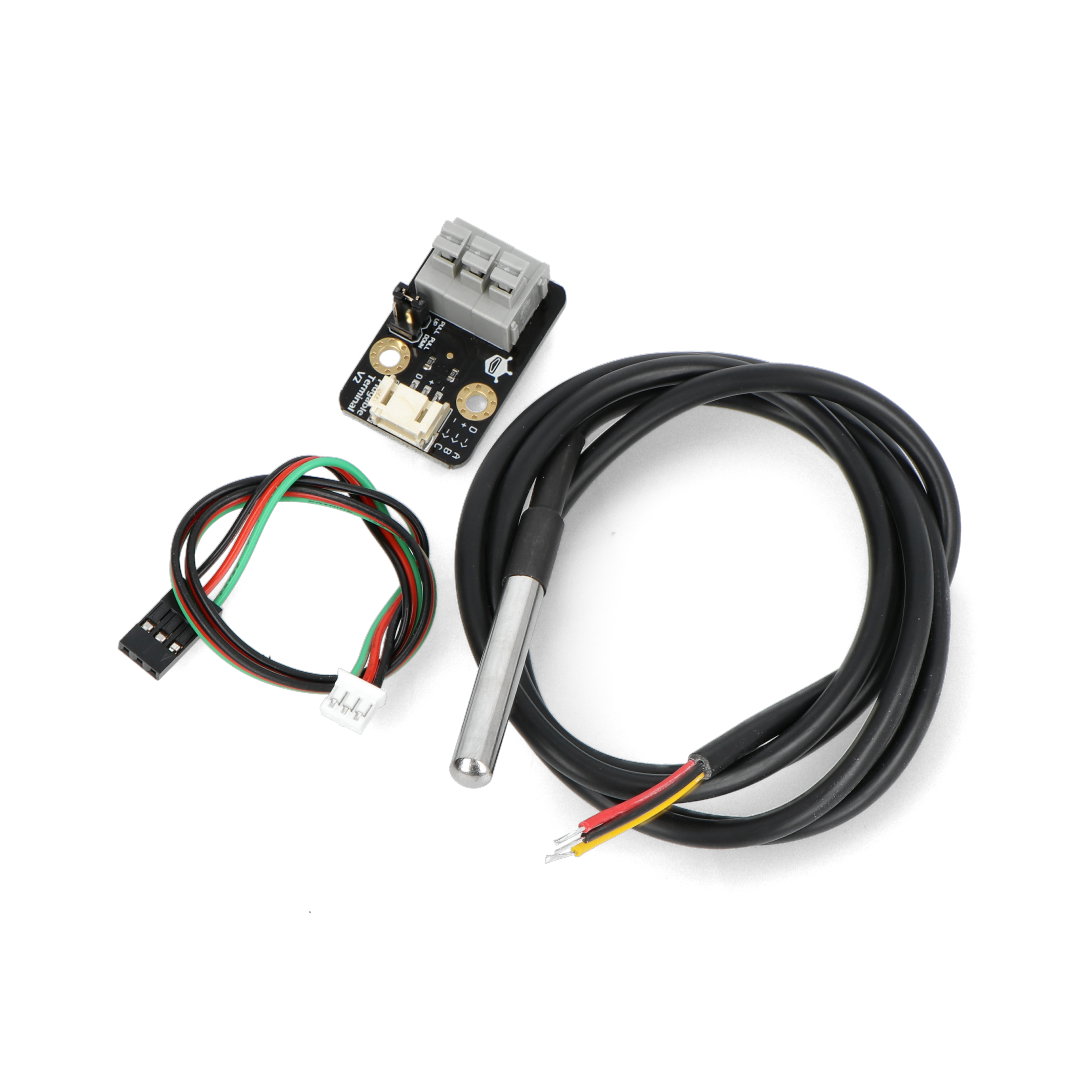

DS18B20 waterproof temperature sensor- waterproofprobe equipped with DS18B20 digital thermometer |
| 6 |  |

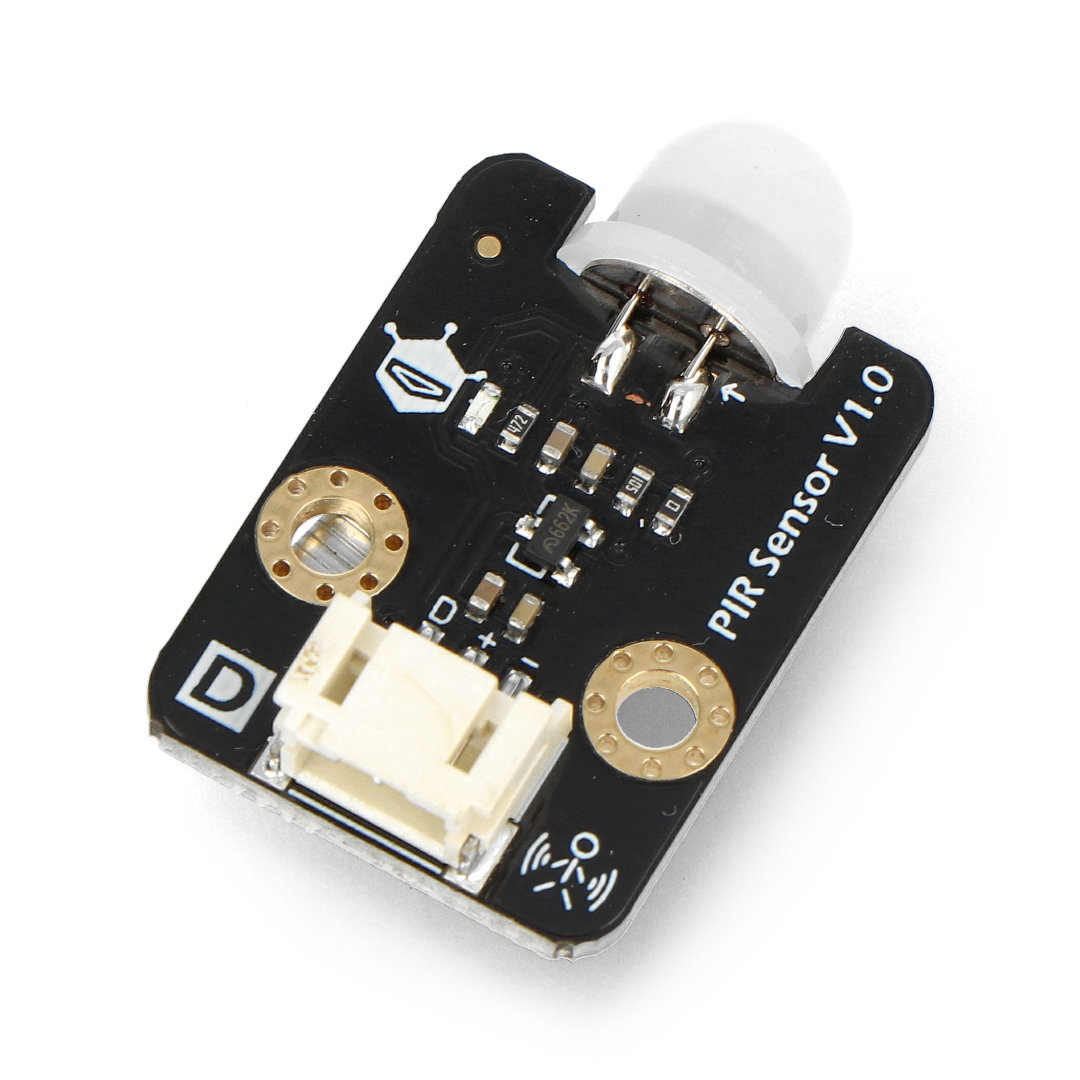

Digital motion detector PIR- the moduleallows to detect movement within its operating range, up to 7 m. |
| 7 |  |

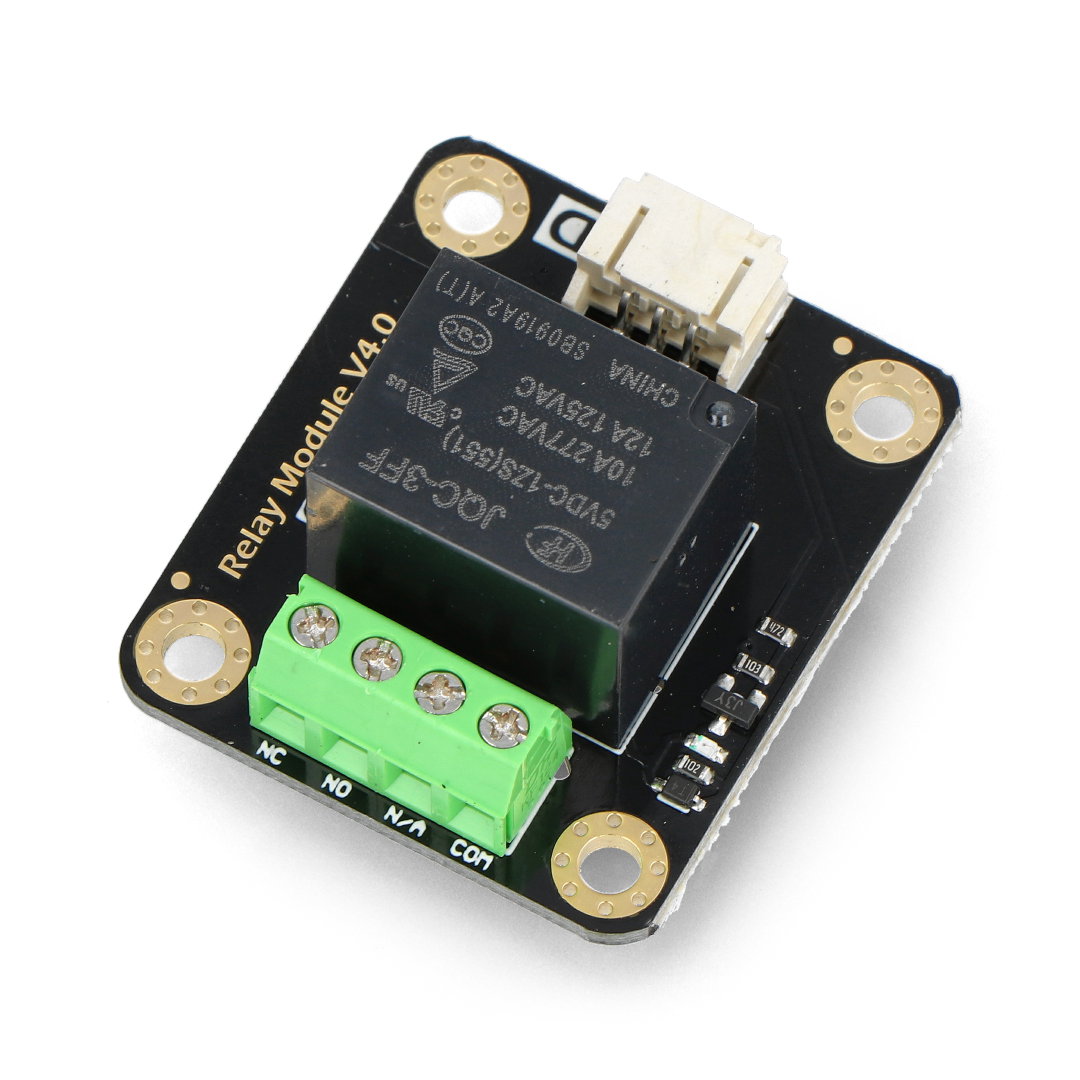

Relay module- a modulewith a relay to control actuators consuming up to 12 A for 125 V or 10 A for 277 V using the microcontroller ports. |
| 8 |  |

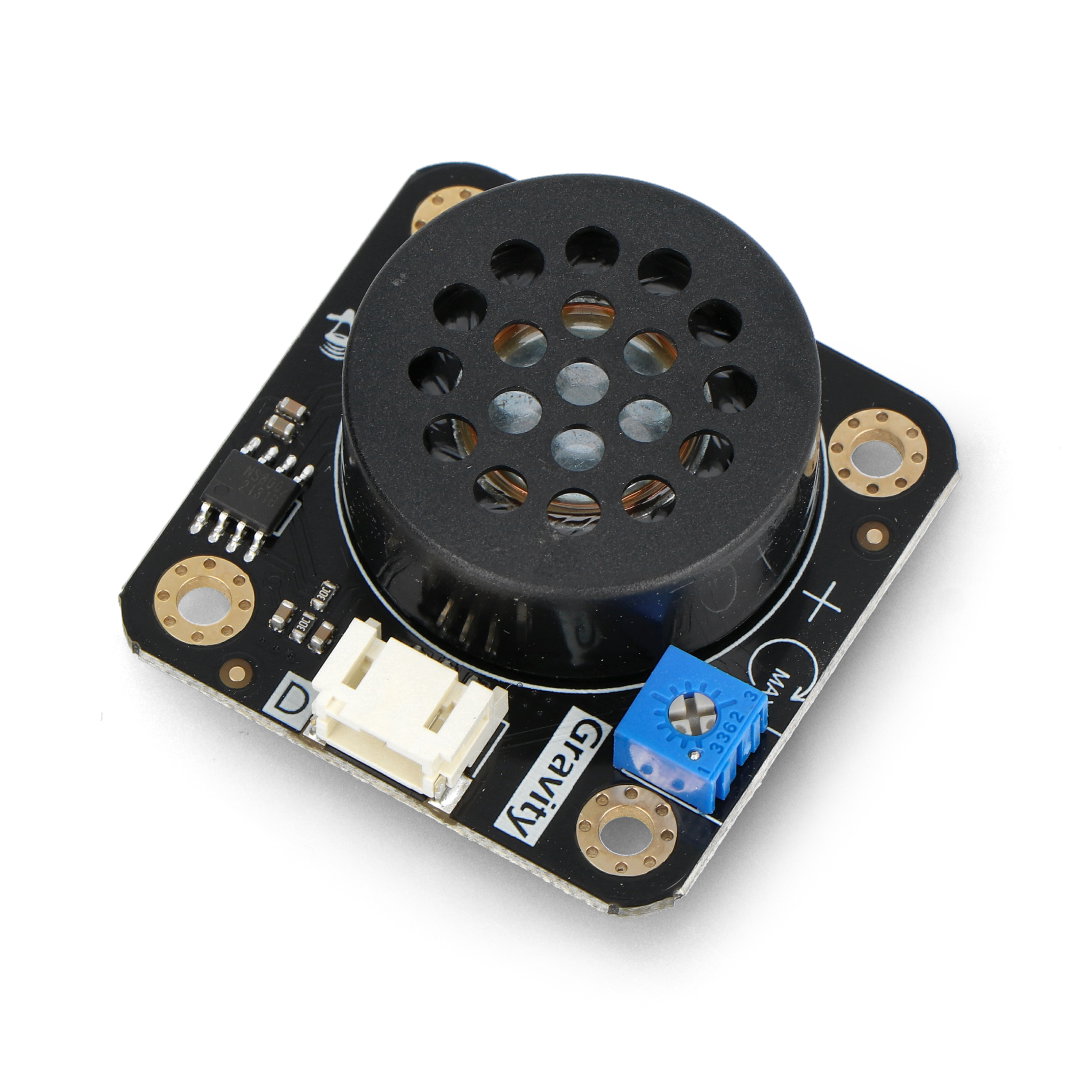

Digital loudspeaker module- a module based on the8002 amplifier with a single-wire digital interface. |
| 9 |  |

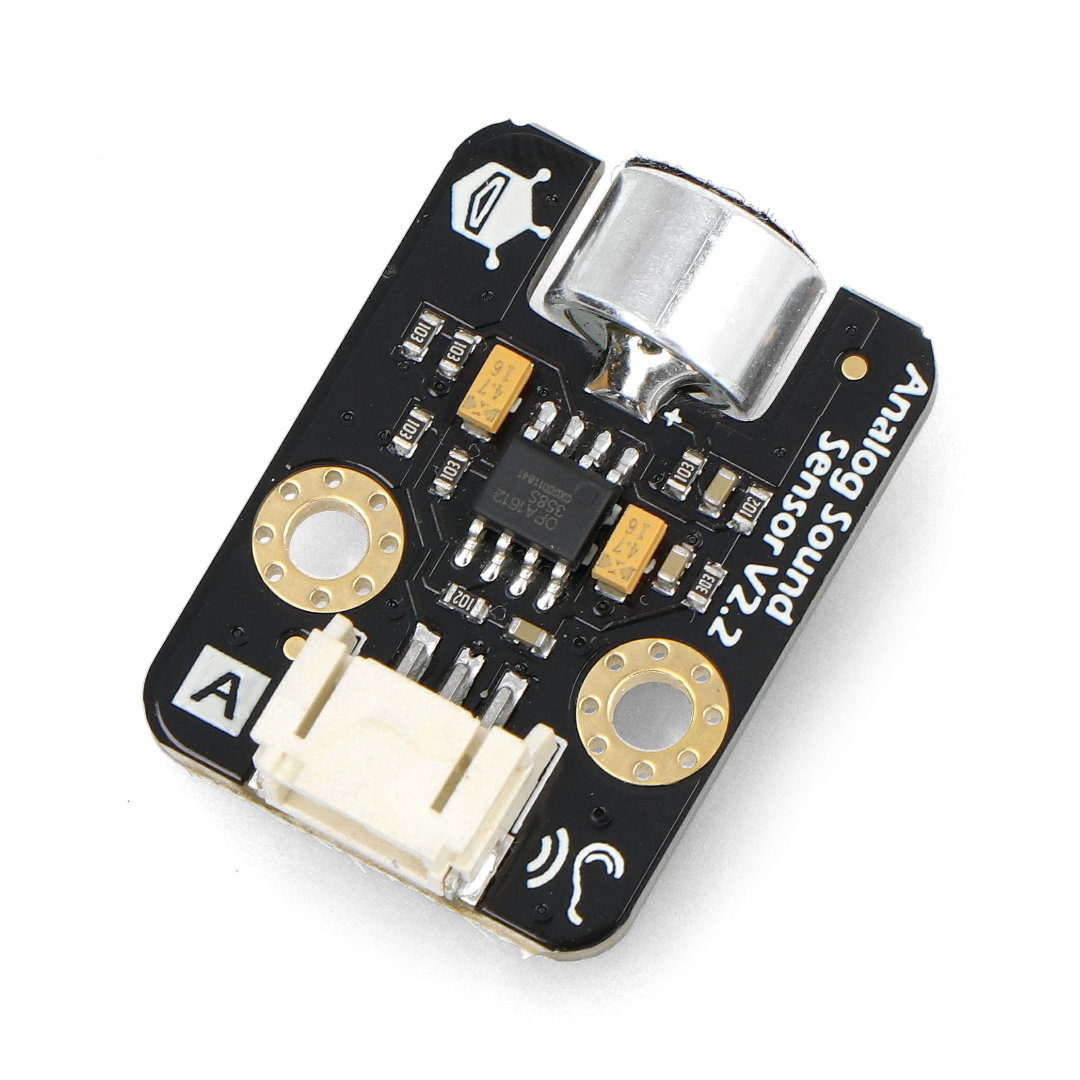

Analogue sound sensor- a modulewith a sound sensor equipped with an analogue output. |
| 10 |  |

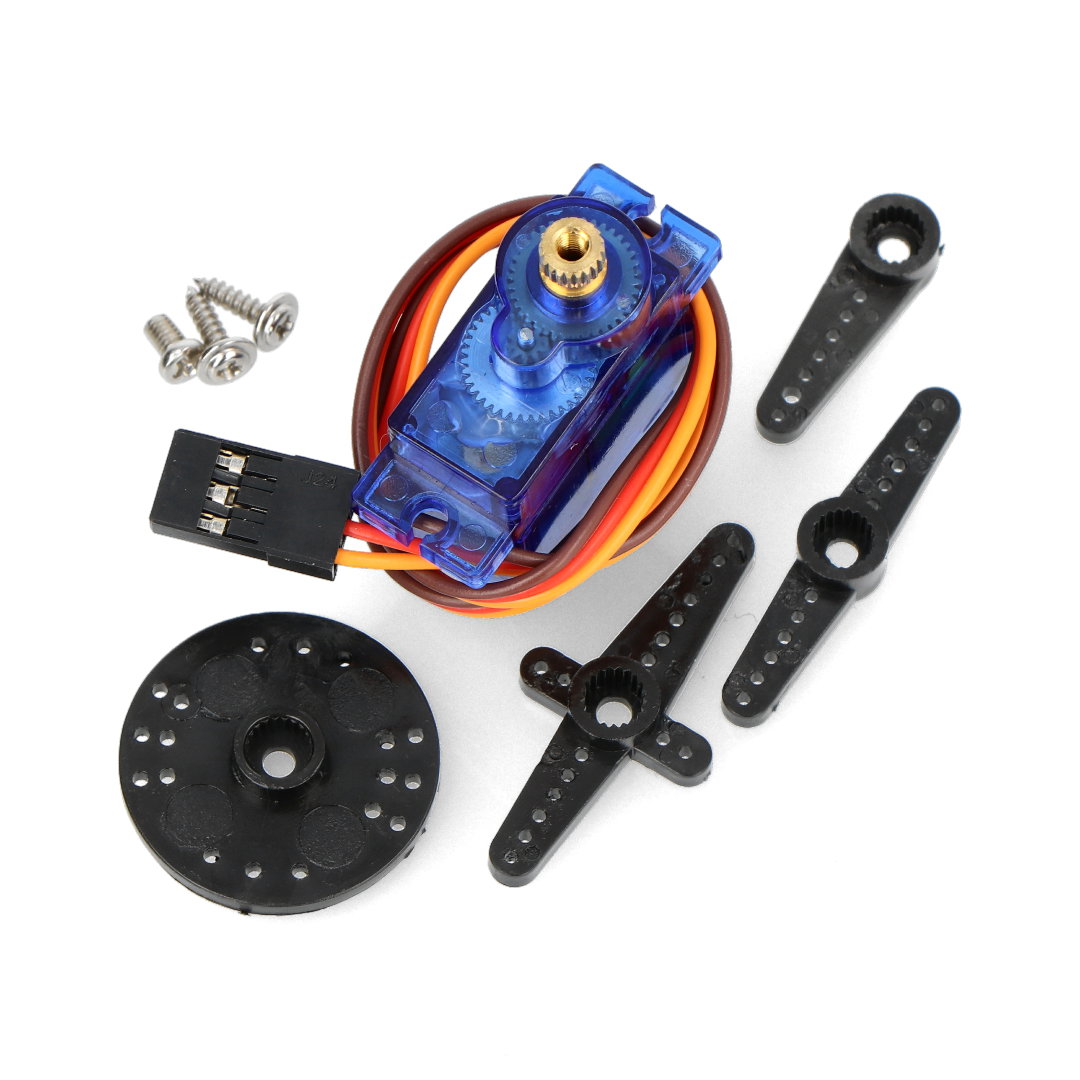

9gservo motor- micro motor with metal gearbox and 180° rotation angle. |
