Environmental Control Board - environmental control board for BBC micro: bit - Kitronik 5697

Index: KTR-18885 EAN: 5903351244947
BOTLAND B. DERKACZ SPÓŁKA JAWNA Opinie z ekomi-pl.com
The Environmental Control Board from Kitronik is compatible with BBC micro:bit versions V1 and V2. It provides outputs for connecting a wide range of sensors that determine environmental parameters. We also offer a kit with Environmental Control Board, which allows you to create an automated home greenhouse. It has, among others, a built-in humidity, temperature and pressure sensor, LED diodes and a buzzer. It is programmable using the MakeCode graphical editor. It can be powered by 3 x AA batteries or through an external power source.
PLN85.37
PLN85.37 tax excl.
On request. Waiting time 4-6 weeks.
Waiting for delivery
30-day returns
PayPal payment
Manufacturer: Kitronik
Compatibility: Micro:bit

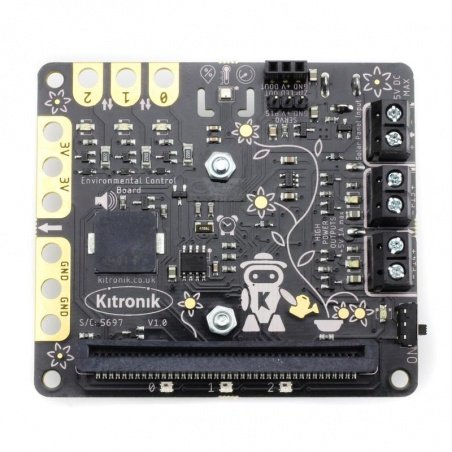

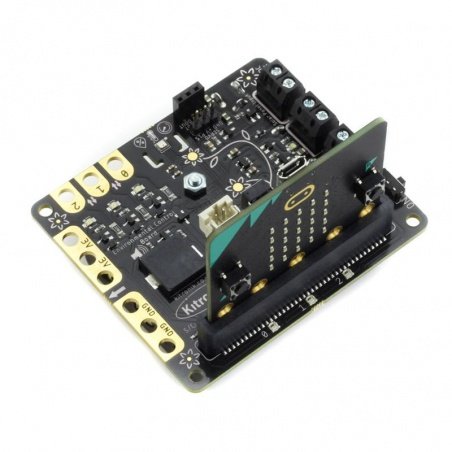

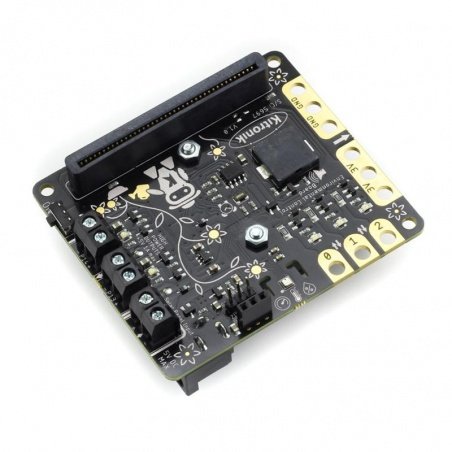

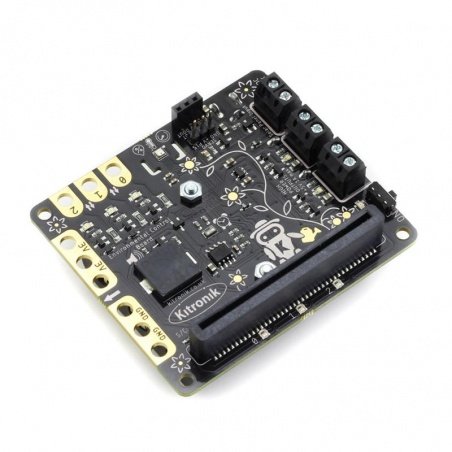

Product description: Environmental Control Board for BBC micro:bit - Kitronik 5697

The Environmental Control Board from Kitronik is compatible with BBC micro:bit versions V1 and V2. It provides outputs for connecting a wide range of sensors that determine environmental parameters. We also offer a kit with the Environmental Control Board to create an automated home greenhouse. It has, among others, a built-in humidity, temperature and pressure sensor, LED diodes and a buzzer. It is programmable using the MakeCode graphical editor. It can be powered by 3 x AA batteries or through an external power source.

Do poprawnej pracy płytki wymagany jest micro:bit w wersji V1 lub V2, który nie jest zawartością tego zestawu.For proper operation the board requires micro:bit version V1 or V2, which is not included in this kit.

Functions

  • Enables the implementation of automated systems to test environmental conditions
  • Compatible with micro:bit V1 and V2 versions
  • Built-in BME280 sensor - humidity, temperature and pressure - buzzer and real-time clock RTC
  • Equipped with three ZIP status LEDs, ZIP LED expansion connector and servo output.
  • It has three pins which can be used to connect with crocodile connectors
  • Powered by 3 x AA batteries or via a 5.5 / 2.1 mm DC plug

Online tutorials for the MakeCode editor

The Environmental Control Board can be used to create automated projects. The manufacturer provides 7 useful scenarios, implemented using the MakeCode editor.

Kontrolna płytka środowiskowa może być użyta w realizacji projektu zautomatyzowanej szklarni domowej.

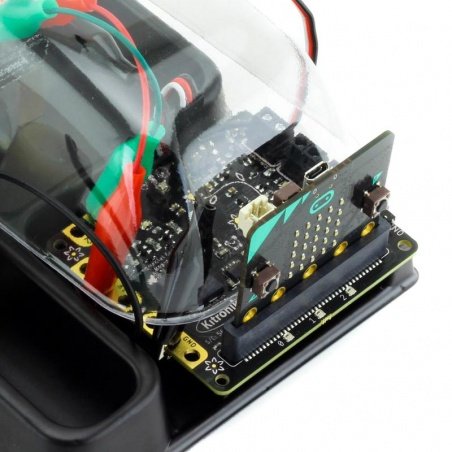

The Control Environment Board can be used in the implementation of an automated home greenhouse project.

Płytka posiada koszyk na trzy baterie AA.The board has a basket for three AA batteries.

Technical specifications

  • Compatible with: micro:bit version V1 and V2 (required for proper board operation)
  • Power supply:
    • 3 x AA batteries
    • external source via DC 5.5 / 2.1 mm connector
  • Development environment: MakeCode graphic editor
  • Built-in elements: buzzer, three LEDs, BME280 sensor (temperature, humidity and pressure sensor), real time clock RTC
  • Dimensions: 74.5 x 66 x 29 mm
