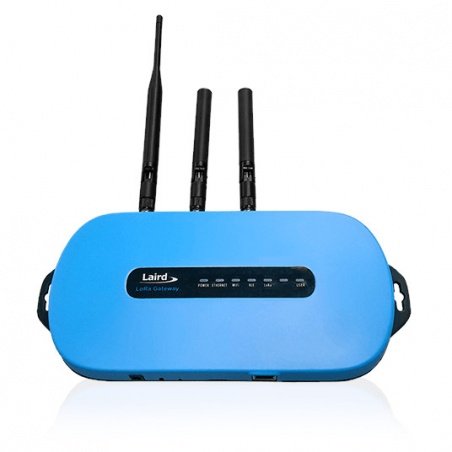

RG186 IoT gateway LoRaWAN 868MHz - Ethernet, WiFi - Laird Connectivity 455-00028

Index: MOU-18525 EAN: 5903351244213
BOTLAND B. DERKACZ SPÓŁKA JAWNA Opinie z ekomi-pl.com
RG186 network gateway with LoRaWAN support is the best solution for secure, scalable and reliable LoRaWAN solutions. It allows you to collect data from 15 km away over LoRaWAN and send it to the cloud over WiFi / Ethernet. The gateway provides full network control, adding multi-protocol connectivity to sensors and devices to create a practical IoT network. The device's housing is IP67 rated, making it resistant to outdoor conditions.
PLN1,299.00
PLN1,056.10 tax excl.
On request. Waiting time approx. 15-30 days
Waiting for delivery
30-day returns
PayPal payment
Manufacturer: Laird

Product Description: IoT Network Gateway RG186 LoRaWAN 868MHz - Ethernet, WiFi - Laird Connectivity 455-00028

The RG186 LoRaWAN-enabled network gateway is the ultimate solution for secure, scalable and reliable LoRaWAN solutions. It allows you to collect data from a distance of 15 km over LoRaWAN and transmit it to the cloud via WiFi / Ethernet. The gateway provides full network control, adding multi-protocol connectivity to sensors and devices to create a practical IoT network. The device's housing is IP67 rated, making it resistant to outdoor conditions.

Bramka sieciowa LoRaWAN WiFiLoRaWAN network gateway - WiFi / Ethernet.

Main features of the RG186 IoT gateway

  • IP67-rated housing
  • Linux operating system installed, configured through the web interface
  • Supports TR-069 remote management
  • Operates at 868 MHz
  • Added support for the Semtech Basisc Station forwarder in addition to updated ChirpStack and Senet packet forwarding services
  • Transmits data wirelessly over WiFi or wired over Ethernet
  • Equipped with 3 external antennas
  • Communication within 10 miles (approx. 15 km)
RG186 IoT gateway specifications
Power supply 12 V / 1 A (power supply included)
Chip Semtech SX1301 / 1257 (LoRa)
CSR8811 A08, QCA6004 (WiFi)
Wireless network LoRaWAN
802.11a/b/g/m
WiFi frequency 2.4 GHz / 5 GHz
Number of channels 8
Supported operating system Linux kernel 4.x installed
Packet forwarding

IoT network with Semtech base station or UDP forwarder,
Semtech base station or ChirpStack with UDP forwarder service,

Senet via legacy Semtech UDP or proprietary Senet forwarder

Range Up to 10 miles (approx. 15 km)
Security WEP, WPA, WPA2
Transmission power +27 dBm
Antennas 3x standard external antennas
Degree of protection IP67
Operating temperature from-30°C to 70°C
Dimensions 133 x 275 x 30 mm
