Product description: Raspberry Pi ribbon - display 22 wires, 0.5 mm pitch - 15 wires, 1 mm pitch - 50 cm
The 50 cm long Raspberry Pi cable allows you to connect displays with a 15-pin connector with a 1 mm pitch to the Raspberry Pi 5 minicomputer, which has 22-pin connectors with a 0.5 mm pitch . Raspberry Pi 5 includes two 4-line MIPI CSI/DSI connectors that are used to connect both screens and cameras . These connectors, using a 22-line "mini" format and a 0.5 mm pitch, are compatible with the Raspberry Pi Compute Module CM4IO expansion module. The fifth version of Raspberry Pi allows you to connect two cameras or two displays to the MIPI CSI / DSI connectors. For full compatibility with commercially available displays and cameras, it is recommended to use a dedicated adapter for a 15-line connector with a 1 mm pitch.
FPC tapes for Raspberry Pi 5.

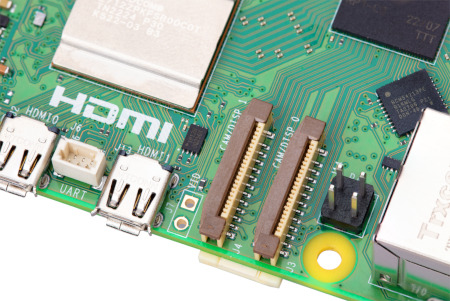

Raspberry Pi 5 is equipped with two four-line MIPI CSI / DSI connectors.
