Ultrasonic distance sensor RCWL-9600 - Unit expansion module for M5Stack development modules

Index: MSS-19114 EAN: 5904422363635
Unit series expansion module in the form of an ultrasonic distance sensor. Manufactured by M5Stack, it is compatible with the M5Stack Core, M5Atom and M5Stick development modules. Equipped with RCWL-9600 chip, which provides accurate distance measurement and obstacle detection from 20 mm to 1500 mm, and the measurement is determined with 1 mm accuracy.
€6.09
€4.95 tax excl.
Waiting for confirmation of delivery date
Product unavailable
30-day returns
PayPal payment
Manufacturer: M5Stack
Compatibility: M5Stack Core M5Atom M5Stick

Product description: RCWL-9600 ultrasonic distance sensor - expansion module Unit for M5Stack development modules

Unitseries expansion module in the form ofan ultrasonic distance sensor. Manufactured byM5Stack, it is compatible with M5Stack Core, M5Atom and M5Stick development modules. It features theRCWL-9600chip, which provides accurate distance measurement and obstacle detectionfrom 20 mm to 1500 mm, and the measurement is determined to 1 mm accuracy. The device communicates with the development module using anI2Cinterface.Grovetype cables are used to connect the extension to the main modules. A dedicated connection cable is included.

Special features

  • Allows precise distance measurement from 20 mm to 1500 mm with an accuracy of 1 mm
  • Has a wide angle of view ± 20°, so that also detects objects that are not in front of the sensor
  • Uses I2C bus to communicate with development modules
  • Finds application in projects performing a mission involving distance measurement, obstacle avoidance and object detection
Ultradźwiękowy czujnik odległości RCWL-9600 w postaci rozszerzenia typu Unit.

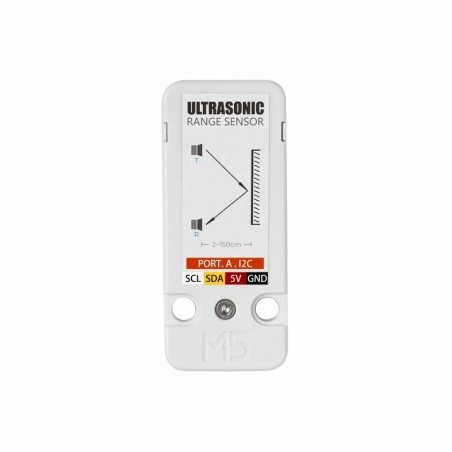

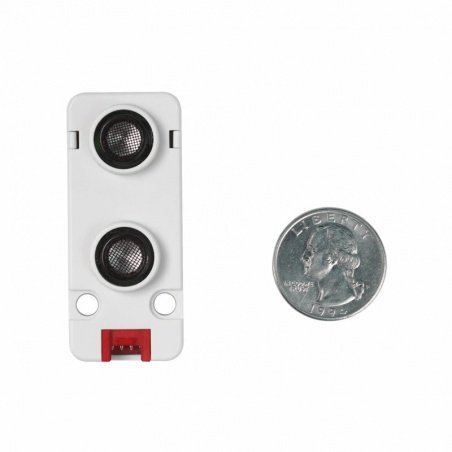

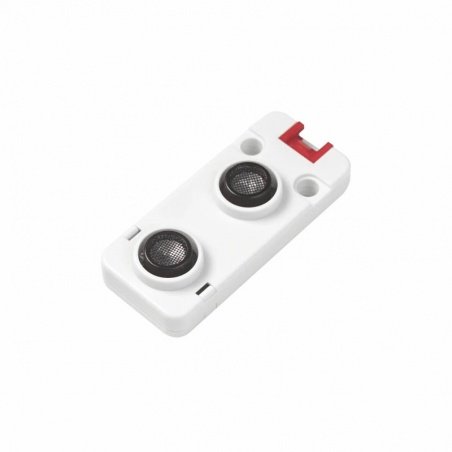

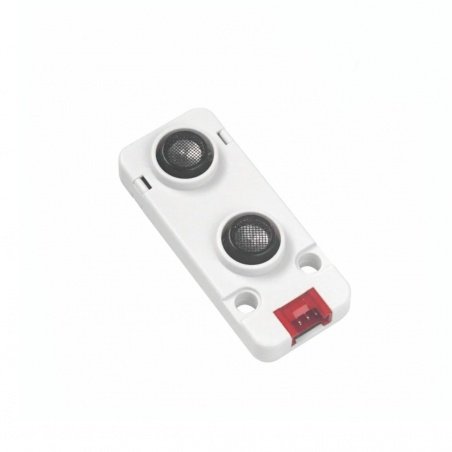

The RCWL-9600 ultrasonic distance sensor in the form of Unit type extension.

Zestaw umieszczony jest w wygodnym opakowaniu, które ułatwia przechowywanie elementów.

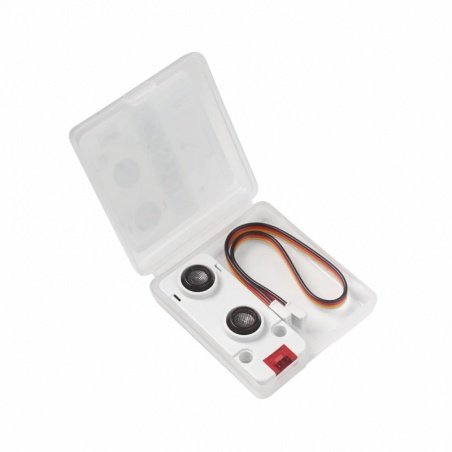

The set is placed in a convenient package for easy storage of components.

Technical specifications of the sensor

  • Compatible with development modules: M5Stack Core, A5Atom, M5Stick
  • Built-in chip: RCWL-9600
  • Communication interface: I2C
  • Interface address: 0x57
  • Blank range: 0 mm to 20 mm
  • Distance measuring range: from 20 mm to 1500 mm
  • Measurement accuracy: up to 1 mm
  • Operating frequency: 40 kHz
  • Sensor sensitivity: -68 dB
  • Viewing angle: ± 20°
  • Supported programming platforms: Arduino, UlFlow (Blockly, Python)
  • LEGO compatible module
  • Module dimensions: 56 x 24 x 12 mm
  • Weight: 9 g

Contents of the kit

  • Ultrasonic distance sensor module - Unit type extension
  • Connection cable with Grove connector - length 20 cm
Sensor - type distance
Sensor - distance to 150 cm
Sensor - distance from 2.0 cm
