Grove - module with passive buzzer - Seeedstudio 107020109

Index: SEE-17268 EAN: 5903351246859

A module with a passive buzzerthat allows you to change the sound tones by adjusting the PWM frequency. The buzzer can be used as an alarm siren, its maximum volume is 80 dB. The module is powered from 3 V to 5 V. A Grove connector is provided on the board to easily connect the module to the base unit.

Grove - module with passive buzzer - Seeedstudio 107020109
€3.90
€3.17 tax excl.
Waiting time: 4-6 weeks
Temporarily unavailable
30-day returns
PayPal payment
Manufacturer: Seeedstudio
Compatibility: Arduino Raspberry Pi

Product description: Grove - module with passive buzzer - Seeedstudio 107020109.

A module with a passivebuzzerthat allows you to change the sound tones by adjusting thePWM frequency.The buzzer can be used as an alarm siren, its maximum volume is 80 dB.The module is powered from 3V to 5 V.AGroveconnector is provided on the board to easily connect the module to the base unit.

Arduinoand RaspberryPi compatible product

The manufacturer providesa user guideshowing its connection and programming.

Connection of the module

The module for communication with the microcontroller uses a digital signal. Additional Grove port facilitates connection with base pads for Arduino or Raspberry Pi.

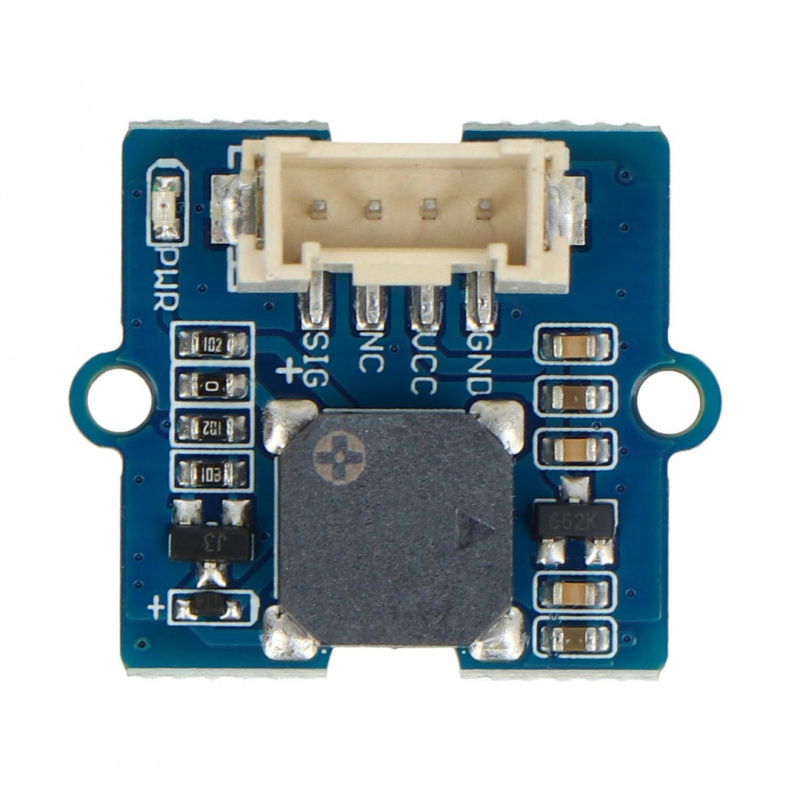

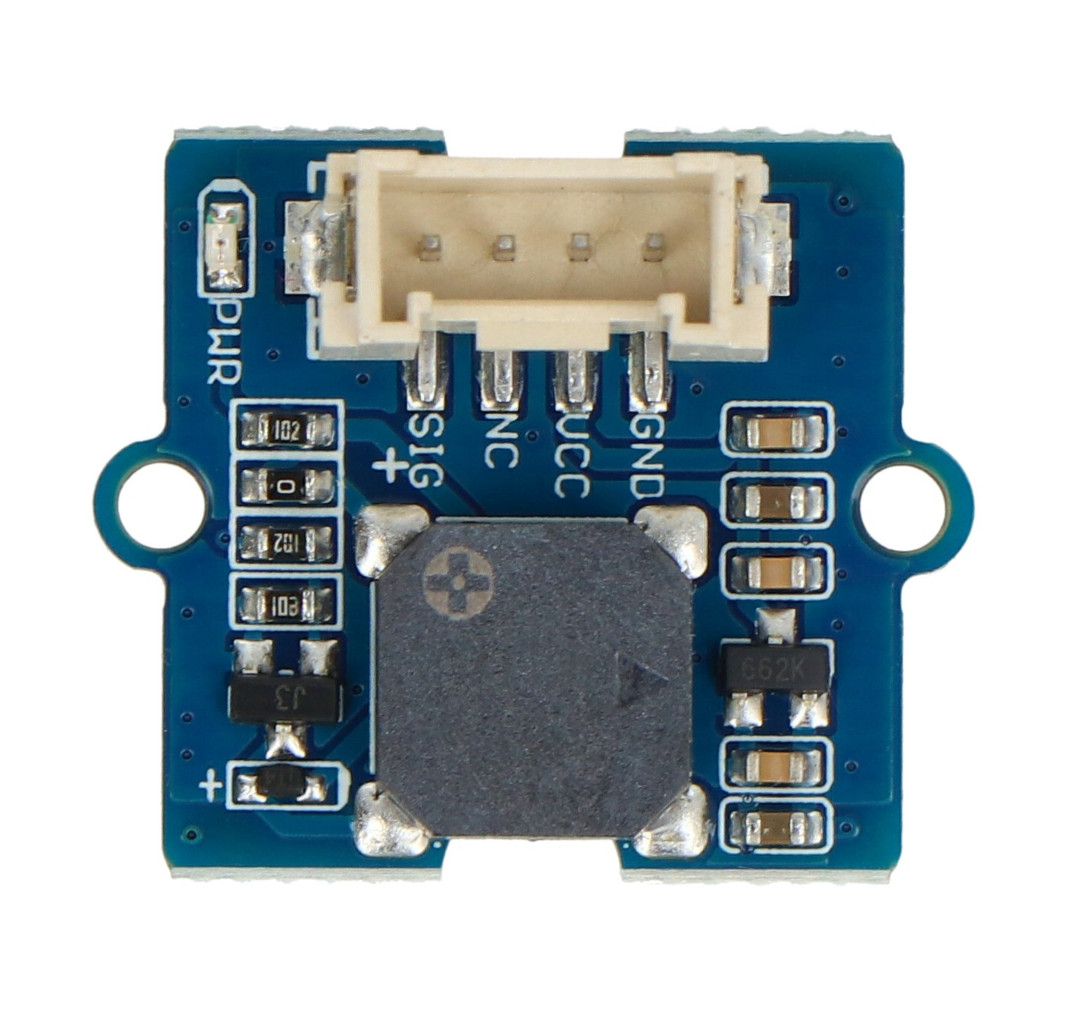

Wyprowadzenia modułu

Pin Description
GND The weight of the system.
VCC Supply voltage from 3 V to 5 V.
NC Not connected.
SIG A digital signal.

Specification of the buzzer module

  • Supply voltage: 3 V to 5 V
  • Frequency: 2700 Hz
  • Volume: up to 80 dB
  • Operating temperature: -20°C to 70°C
  • Dimensions: 20 x 20 x 10 mm
  • Weight: 3 g

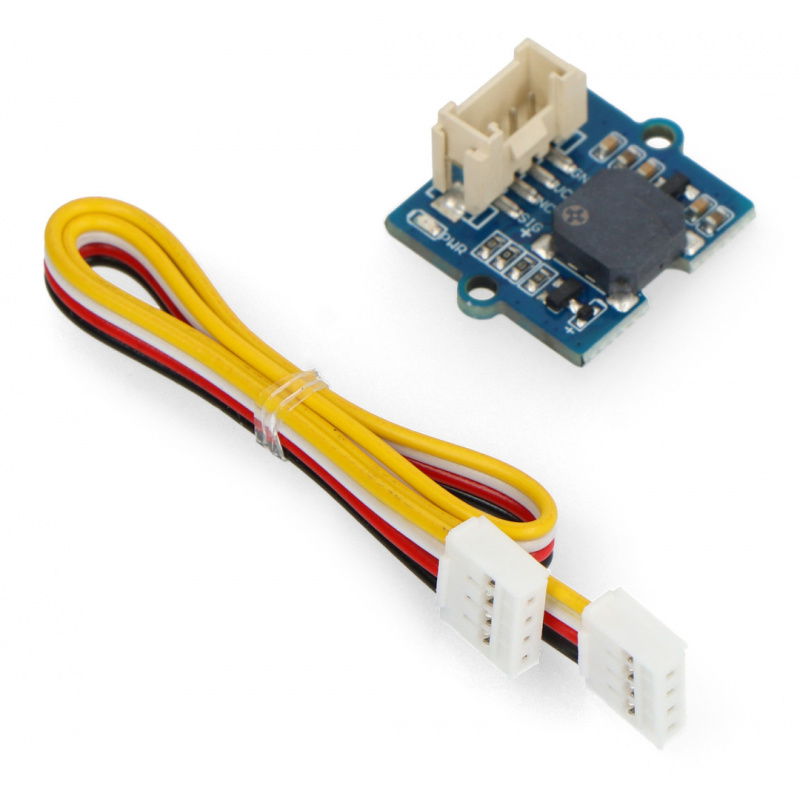

The set includes

  • Passive buzzer module
  • Grove cable

Sensor - type buzzer
Package width 4.5 cm
Package height 1.5 cm
Package depth 7 cm
Package weight 0.008 kg
