Product description: Li-Pol / Li-HV /Li-Ion /Li-Fe / Ni-Cd / Ni-MH charger with SkyRC IMAX B6AC v2 USB balancer with built-in power supply
SkyRC IMAX B6AC v2 is a simple and universal charger that works with most cells used in robotics and modeling. A large, legible display with an intuitive user interface allow you to select the appropriate parameters and constantly monitor the battery status during charging. A set of adapters ensures trouble-free charging of LiPo, LiHV, LiIon, LiFe cells as well as NiCd, NiMH and Pb packages.
The built-in balancer guarantees proper and even charging of all cells in the packages. The charger also has the ability to connect to a computer via the microUSB socket to control the parameters. The v2 version has a LiPol battery meter, internal resistance meter, terminal voltage control, PC control with available firmware updates and the ability to control via WiFi using an additional module.
The charger has a built-in 230 V mains adapter.
SkyRC IMAX B6AC v2 charger specification:
- 2 charger power options:
- AC: 100 V to 240 V (built-in power supply)
- DC: 11V to 18V
- Output power:
- charging power 50W
- discharge power 5 W
- Charging current: 0.1 A to 6.0 A
- Discharging current: from 0.1 A to 2.0 A
- Number of supported NiCD/NiMH cells: from 1 to 15 cells
- Number of supported Li-Po/Fe/Ion/HV cells: from 1 to 6 cells
- Supported Pb/Gel batteries: 2 V to 20 V
- Supported latest Lithium cells: LiHV
- Can be connected and controlled via a computer
- Software update possible
- LiPo battery meters
- Internal resistance meter
- Possibility to update the firmware
- Can be operated via WiFi with an additional module (not included)
- 4 programming buttons
- Weight (without cables): 632 g
- Dimensions: 144 x 135 x 36mm

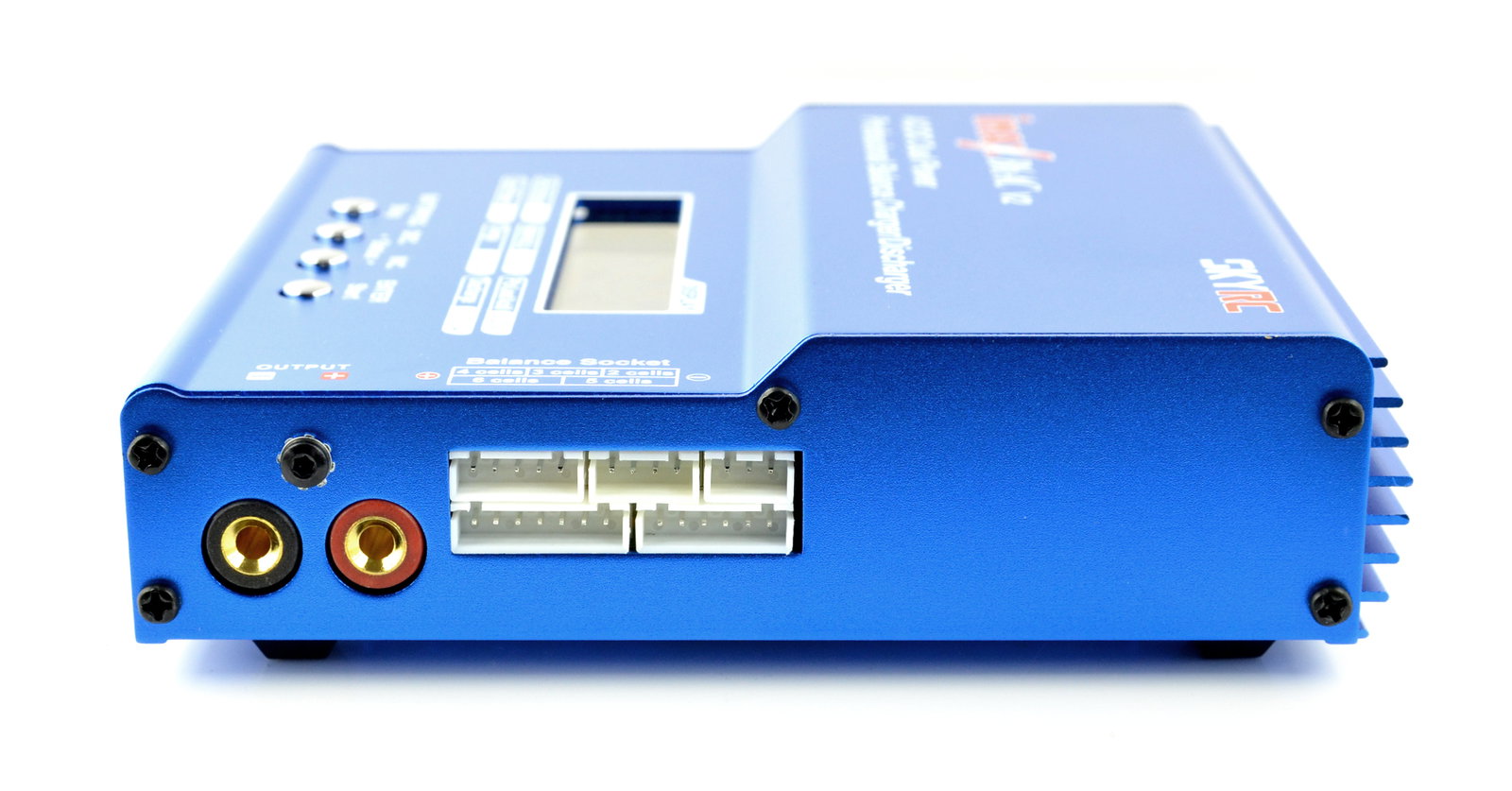

- Built-in sockets:
- sockets for balancer adapter + 2-6S adapter
- sockets for DEAN plug for charging (suitable grommets are included)
- Jack socket (12V DC power supply)
- figure-of-eight socket (mains cable included)
- socket for an optional temperature sensor
- microUSB socket
Kit contents
- SkyRC IMAX B6AC v2 charger
- Banana adapter -> DEANS male (adapter for connecting other adapters)
- DEANS adapter -> crocodile clips
- DEANS adapter -> servo socket
- Adapter DEANS -> XT60
- Adapter DEANS -> 2-pin raster 2.0 mm to Li-Pol 3.7 V
- Crocodile clip adapter -> Jack (to power the charger from a 12 V battery)
- English user manual
