Product description: Pulling solenoid 12 V 7,8 W 0,8 kg
Theelectromagnetis equipped with a10 mmlong bolt, which after receiving a12 Vvoltage signal carries out a linear pulling motion. The device consumes approx.0.65 Acurrent during operation. The maximum load capacity is approx. 0.8 kg. There are mounting holes in the casing of the electromagnet. The set includes screws and washers. The net weight of the product is 45 g.
A wide range ofelectromagnetsis available in our shop- checkit out.

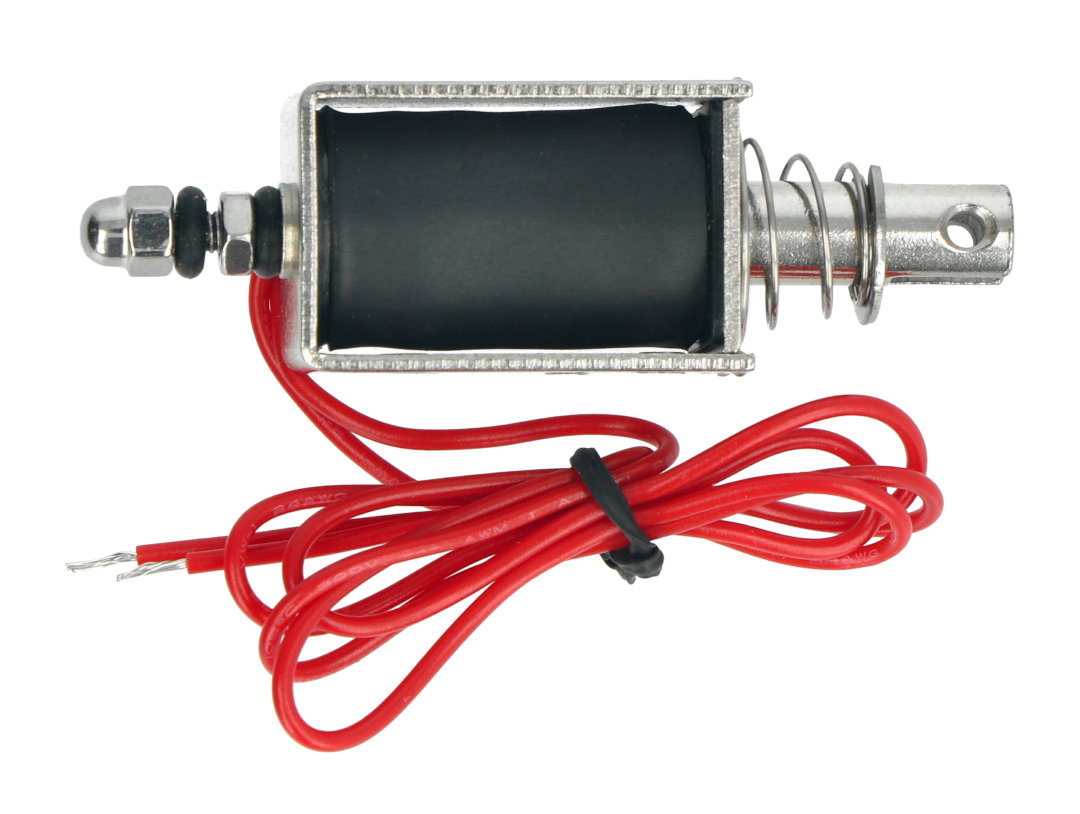

Pulling electromagnet 12 V 7,8 W 0,8 kg.
Electromagnet with assembly elements.
Specifications of the pulling electromagnet
- Model: KK-0630B
- Design: pull version
- Supply voltage: 12 V
- Current consumption: 0.65 A
- Maximum power: 7.8 W
- Locking range 10 mm
- Pulling force: 0.8 kgf (attracts a mass of 0.8 kg for an acceleration of 9.8 m/s2)
- Housing dimensions: 62 x 16 x 19 mm
- The housing has mounting holes with a diameter of 2 mm
- Power cord length: 0.25 m
- Weight: 45 g
Contents of the set
- Pulling electromagnet
- 4 x mounting screws
Attention!
Solenoid draws relatively high current, so connecting it directly to the microcontroller leads will cause permanent damage to the circuit.
