Product description: Gravity - set of I2C / UART connection cables - female-female - 30 cm - 5 pcs - DFRobot FIT0916-FF
The set includes 5 pieces of 30 cm long connection cables from DFRobot . The cable consists of four wires corresponding to the power, ground and signal lines for I2C and UART . They are terminated on both sides with a female connector . Each of them is signed, which makes it easy to distinguish them. Thanks to this, creating projects will consume much less time. The cables are made of high-quality materials and are characterized by high durability.

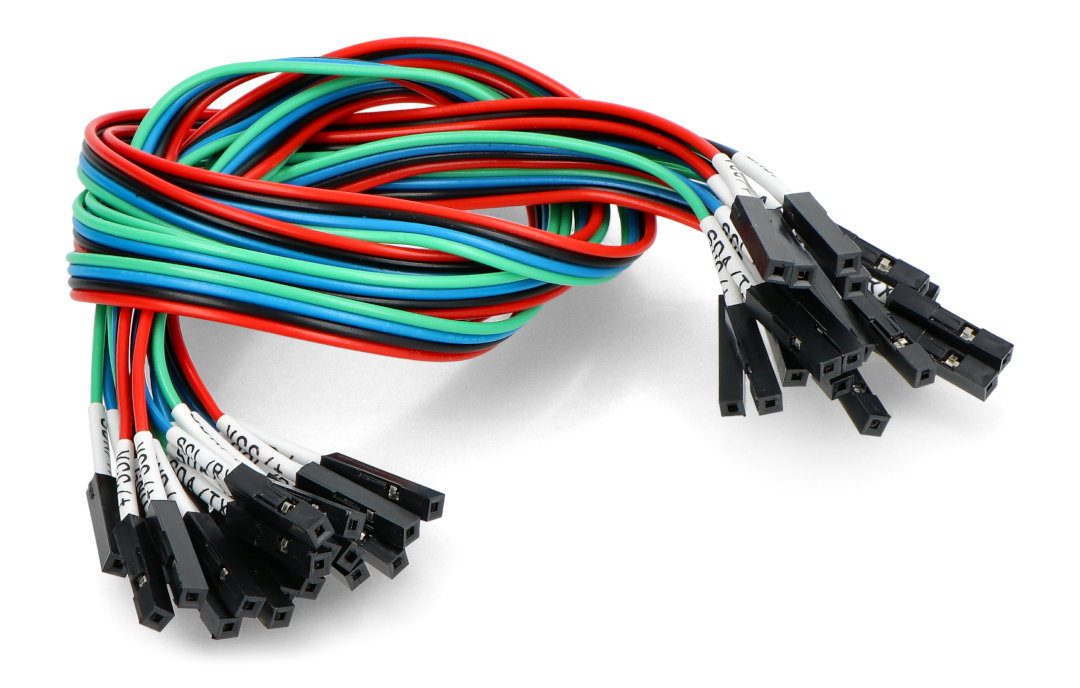

Gravity - set of I2C / UART connecting cables - female-female.

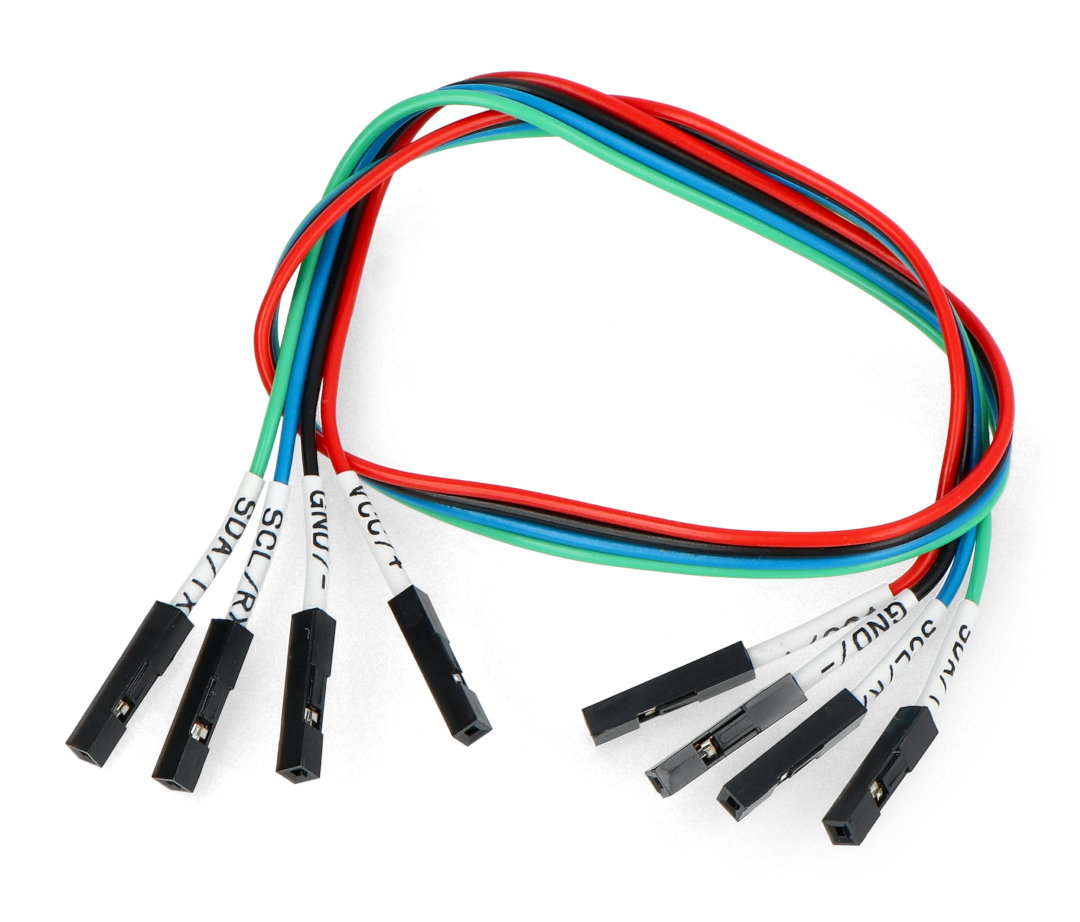

Each strand has a label indicating its function.
Pin description
- I2C:
- Red - VCC (power)
- Black - GND (ground)
- Blue - SCL (clock line)
- Green - SDA (data line)
- UART
- Red - VCC (power)
- Black - GND (ground)
- Blue - TX (transmitter)
- Green - RX (receiver)
Technical specification of I2C/UART connection cables
- Maximum voltage: < 50V
- Maximum current: < 1000 mA
- Number of pins: 4
- Type: female-female
- Pitch: 2.54mm
- Cord length: 30 cm
- Number of pieces in the set: 5 pcs.
The cables are made of high-quality materials.
