Grove - L298N - two-channel motor controller 15V / 1A

Index: SEE-11320 EAN: 5904422340018

Grove series module equipped with a two-channel H-bridge L298N, controlled by ATmege 8L. The circuit allows to regulate the direction of rotation of motors with maximum current consumption up to 1 A and supply voltage up to 15 V. Included is a cable adapted for Seeedstudio Base Shield v2.0 overlay.

Grove - L298N - two-channel motor controller 15V / 1A
€15.17
€12.33 tax excl.
Waiting for confirmation of delivery date
Temporarily unavailable
30-day returns
PayPal payment
Manufacturer: Seeedstudio
Compatibility: Arduino Raspberry Pi

Product description: Grove - L298N - 15V/1A dual channel motor controller

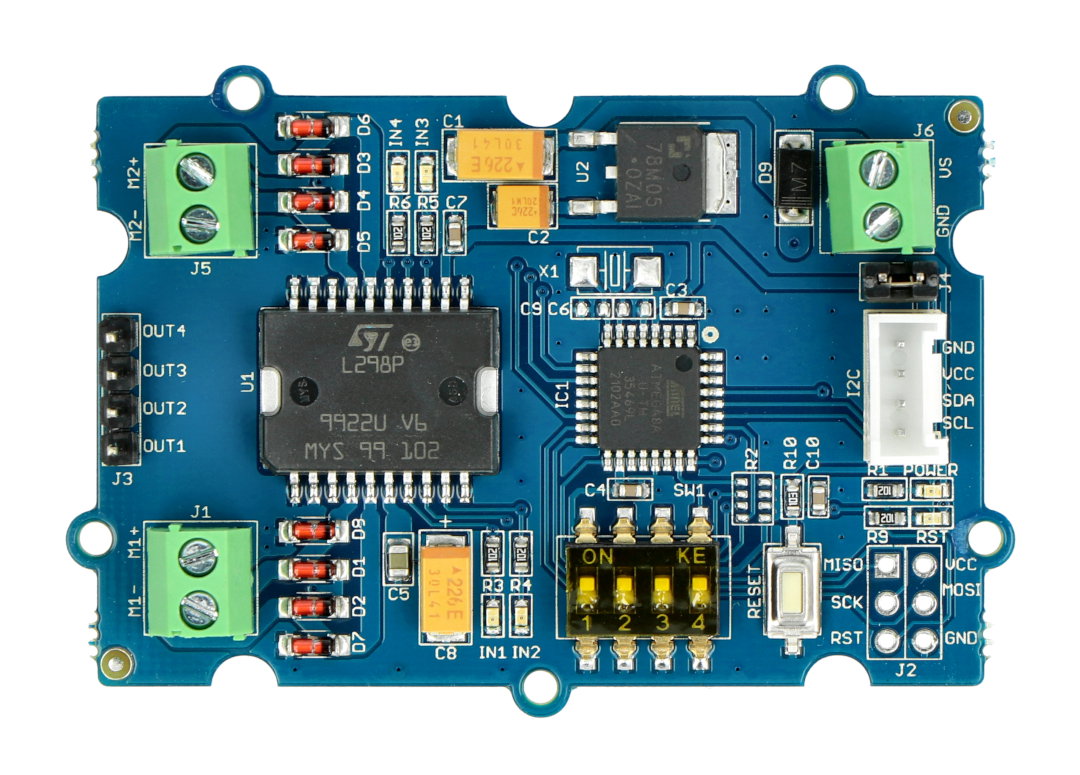

Grove series module equipped with two-channel H-bridge L298N, controlled by ATmege 8L, which communicates via I2C bus with Arduino for example. The circuit allows to regulate the direction of rotation of motors with maximum current consumption up to 1 A and supply voltage up to 15 V. The module gives the possibility to control two DC motors or one stepper motor at a time. It has a digital output, making it compatible with most startup modules, including Raspberry Pi and Arduino.

Connection

The module comes with a Grove interface making it easy to connect it to an Arduino along with the Base Shield v2.0 overlay or Raspberry using the GrovePi+ Hat.

sterownik silników 15V/1A

Pin Description
VCC Supply voltage: from 3.3 V to 5 V.
GND System ground.
SCL I2C interface clock line.
SDA . I2C interface data line.

User Manual

The manufacturer has prepared a user guide and a library on Github for Arduino.

Specification

  • Operating voltage: from 6V to 15V
  • Maximum output current: 1A
  • Input / output voltage on I2C bus: 5 V
  • Communication: I2C interface
  • Cable for connection to Base Shield v2.0is included
  • Dimensions: 60 x 40 x 10 mm
  • Weight: 22 g
