Product description: Inkplate 5 with housing - e-paper display 5.2'' 960 x 540 px - ESP32 - Arduino compatible - Soldered 333256
Soldered Inkplate 5 is an advanced module with a 5.2'' e-paper display and a resolution of 960 x 540 px , which combines energy efficiency with high performance. Thanks to e-ink technology, it provides excellent readability in all conditions, even in full sunlight. Equipped with ESP32 , it offers WiFi and Bluetooth connectivity, ideal for IoT applications. The module consumes minimal energy - in deep sleep mode it consumes only 18 µA , which allows for months of work on a single battery charge. It supports microSD cards , so you can store and display images directly from external memory. Additional GPIOs and compatibility with the easyC system allow for simple integration with other modules and sensors. The version with a housing made in 3D printing technology ensures protection and durability of the module.

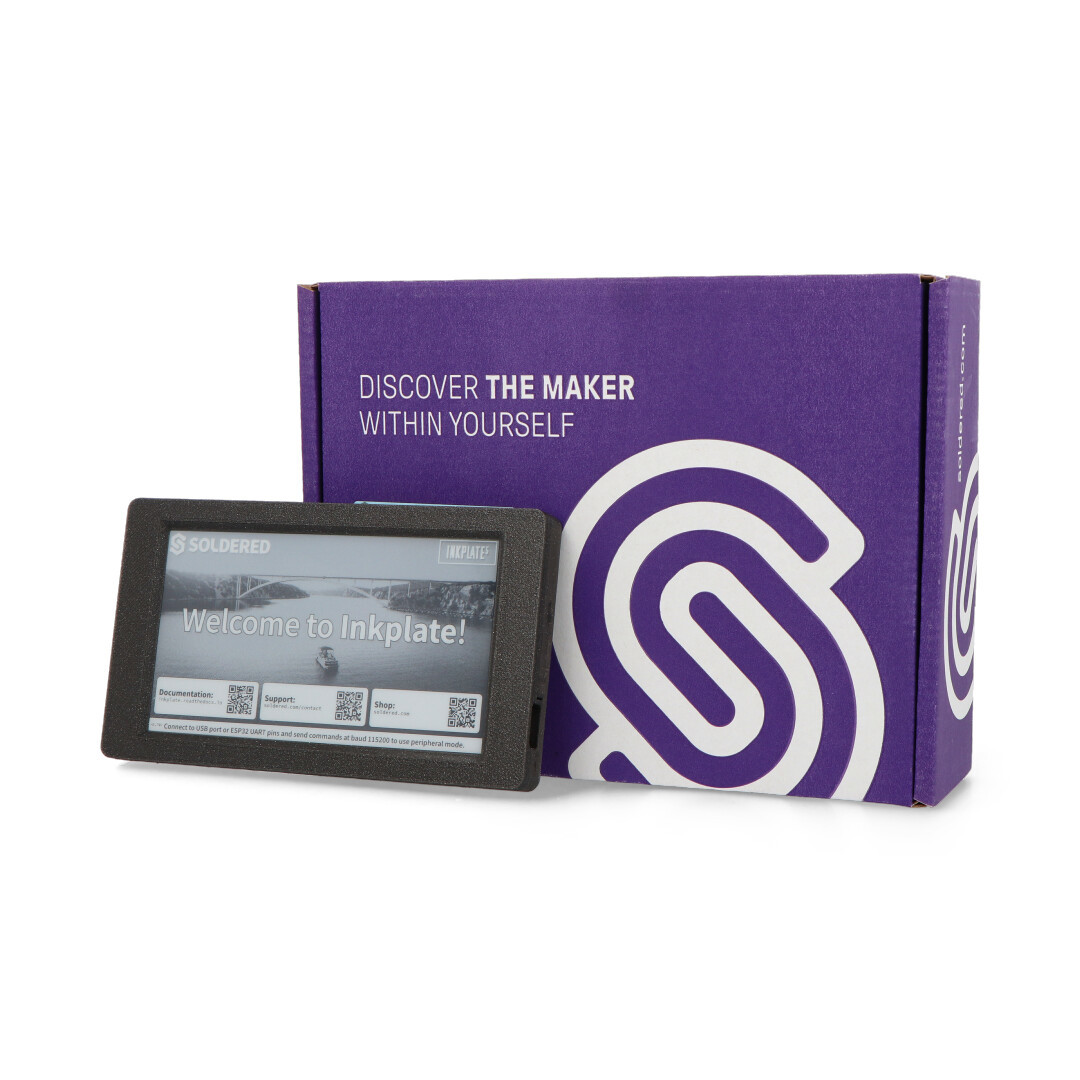

Inkplate 5 with housing - 5.2'' e-paper display 960 x 540 px - ESP32 - Arduino compatible - Soldered 333256.
The screen resolution is 960 x 540 px.
Key Features of Inkplate 5
- 5.2'' e-paper screen : 960 x 540 px resolution, 6 shades of gray, no power consumption between updates
- Fast refresh : full in 1.02 s and partial in 0.19 s (up to 5 fps)
- ESP32 on board : built-in WiFi and Bluetooth 4.0 (BLE) module
- Minimal power consumption : only 18 µA in deep sleep mode, built-in Li-Ion battery charger
- microSD slot : allows you to store and quickly display images
- Support for I2C and SPI protocols : compatibility with a wide range of sensors and accessories
- Interface support : I2C, SPI, additional GPIO lines, easyC / Qwiic compatibility
- Extensive programming options : Arduino (100% compatible with Adafruit GFX) and Micropython
- Optional battery : can be adjusted to individual needs
Inkplate 5 programming
Inkplate 5 is a module designed for easy programming for both beginners and advanced users. It supports two popular environments - Arduino and Micropython , which provides a wide range of applications. Thanks to the ready-made Arduino library (compatible with Adafruit GFX), you can easily display texts, images and geometric shapes. MicroPython users can use a dedicated module that makes it easy to integrate and control the display. Detailed instructions on how to get started with both platforms can be found in the Inkplate documentation.

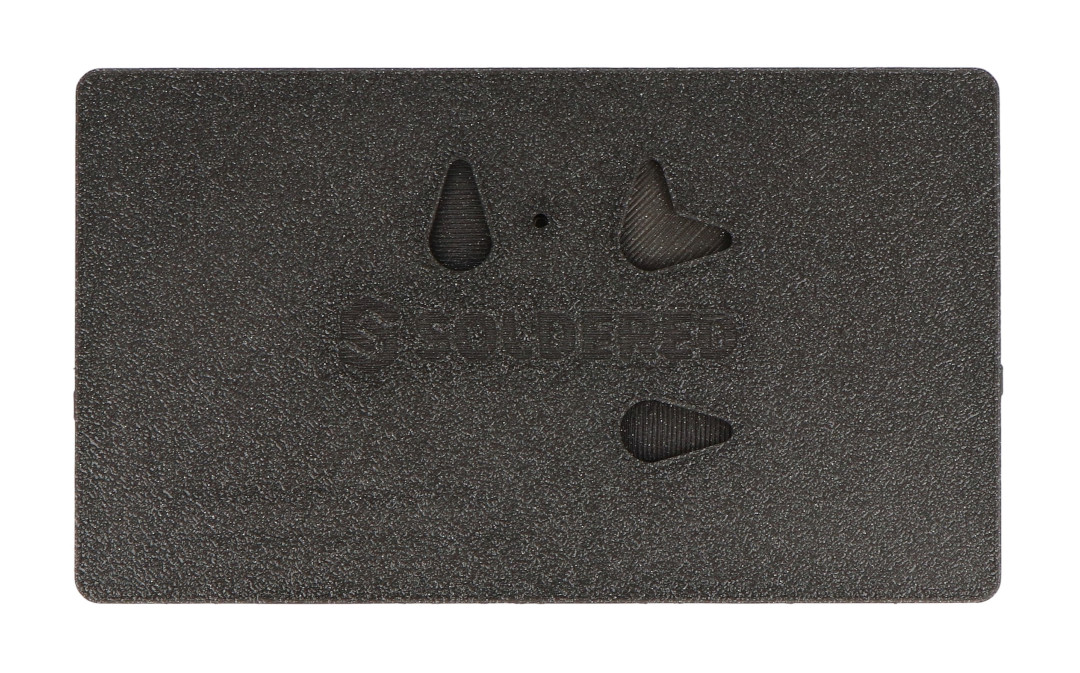

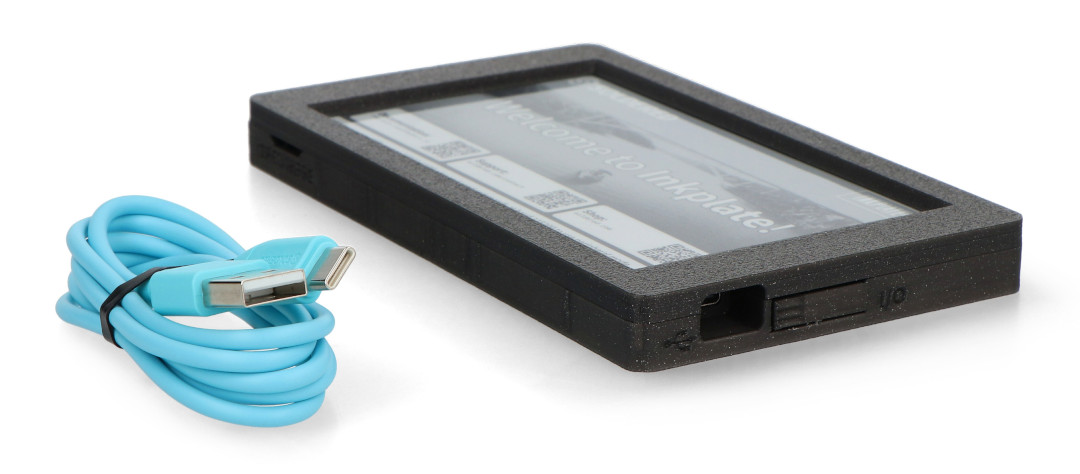

Inkplate 5 has a housing made using 3D printing technology.
easyC system in Soldered Inkplate 5
Inkplate 5 supports the easyC system, which simplifies the connection of sensors and peripheral modules . This is a solution based on I2C communication, allowing for quick and error-free connection of elements using dedicated cables. With easyC, you can expand your projects with additional functions without the need for soldering or complicated wiring.
Examples of display applications
E-book reader : With its e-paper display, the Inkplate 5 is perfect for creating your own e-book reader
- Information display : can be used as an information panel displaying current news, weather forecast or calendar
- Controlling Smart Home Devices : Thanks to built-in WiFi and Bluetooth, Inkplate 5 can act as an interface for managing smart devices
- IoT projects : ideal for creating IoT devices with low power consumption and a clear display
Our offer also includes the Inkplate 5 version without casing .

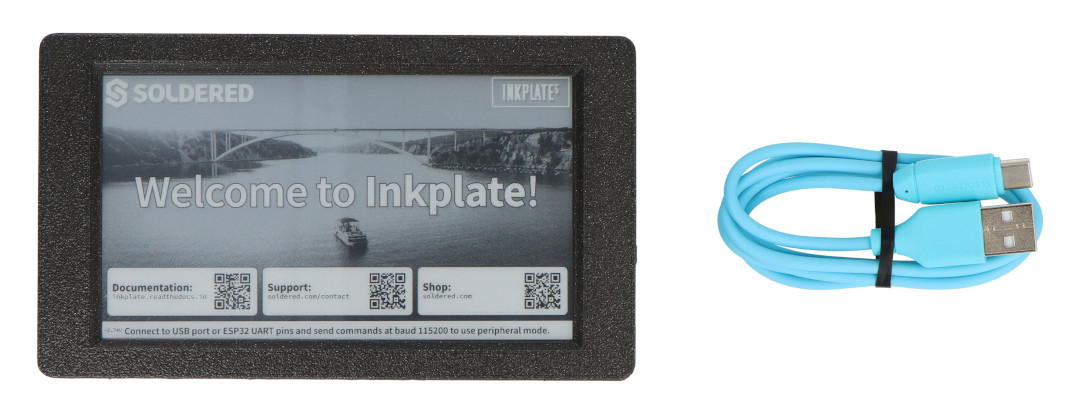

Items included in the set.
Technical specification of the module
- Display diagonal: 5.2"
- Display resolution: 960 x 540 px
- Display colors: black, white, 6 grayscale modes
- Microcontroller: ESP32
- Connectivity: WiFi, Bluetooth 4.0 (BLE)
- Refresh Rate: 1.02s for full refresh and 0.19s for partial refresh
- Power consumption: 18 µA in deep sleep mode
- Built-in microSD card reader: yes
- Connectors: USB Type-C, easyC, GPIO, battery connector
- Communication: USB, I2C, SPI
- USB to UART Converter : CH340C
- Power supply: built-in MCP73831 charging circuit for Li-Ion batteries
- Buttons: Power button, Reset button
- Programming: Arduino and MicroPython compatible
- Dimensions: 145.2 x 84.2 x 13.5 mm
Kit Contents
- 1x Inkplate 5 with housing - e-paper display 5.2'' 960x540px - ESP32 - Arduino compatible - Soldered 333256
- 1x USB cable
