BME680 multi-functional 4in1 environmental sensor - SPI / I2C - DFRobot SEN0375

Index: DFR-19199
A 4-in-1 MEMSmultifunctional environmental sensor manufactured by DFRobot. It features an embedded BME680 chip. The module is a combination of a volatile organic compound(VOC) sensor , a temperature sensor, a humidity sensor and a barometer. The measuring range for temperature is from -40°C to 85°C with an accuracy of +/- 1°C; for humidity from 0% to 100% RH with an accuracy of +/- 3% RH; for atmospheric pressure from 300 hPa to 1100 hPa with a measurement accuracy of +/- 0.6 hPa.
€19.12
€15.54 tax excl.

Available
(Check quantity)
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: DFRobot
Compatibility: Arduino

Product description: BME680 Multifunctional Environmental Sensor 4in1 - SPI / I2C - DFRobot SEN0375

MultifunctionalMEMS4in1environmental sensor manufactured by DFRobot. It has an embeddedBME680chip. The module is a combination of volatile organic compounds(VOC) sensor,temperaturesensor,humiditysensor andbarometer. It is used as a component forair qualitymonitoring, and is widely used in environmental monitoring, home automation and control, orGPS improvements. The use of MEMS technology and BME680 chip makes the sensor small in size andlow in power consumption. The measuring range for temperature is-40°C to 85°Cwith an accuracy of +/- 1°C; for humidity -0% to 100% RHwith an accuracy of +/- 3% RH; for atmospheric pressure -300 hPa to 1100 hPa with a measurement accuracy of +/- 0.6 hPa.

Product is compatible with Arduino
. Producer prepared detaileduser guideandlibraryfor Arduino IDE environment.

BME680 wielofunkcyjny czujnik środowiskowy 4w1 - SPI / I2C

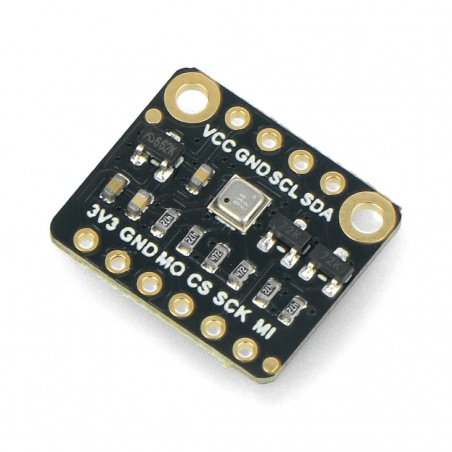

BME680 4in1 multifunctional environmental sensor - SPI / I2C.

Przykładowy schemat połączenia czujnika z wykorzystaniem płytki DFRduino, odpowiednika Arduino.


Example of sensor connection usingDFRduinoboard, Arduino equivalent. The board is not a part of kit, you can buy it separately in our shop.

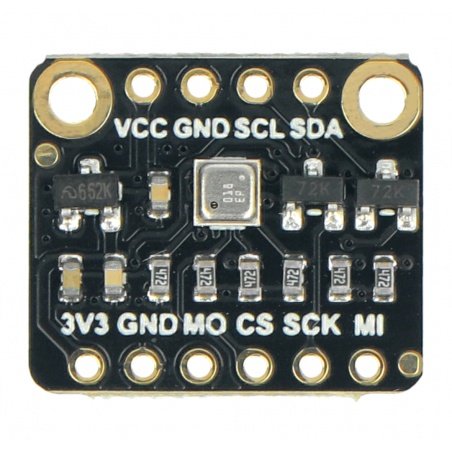

Leads description and example connection diagram

The module hasleadsin the form of solderfields, to which you should solder includedgoldpin connectors. Connect thesensorto the microcontroller module according to the following description:

  • VCC- power supply pin within the range from 3.3 V to 5.5 V
  • GND- system ground
  • SCL- I2C interface clock line
  • SDA- I2C interface data line
  • 3V3- power supply pin 3,3 V
  • CS- Chip Select; selection pi: data / command

Technical specification of BME680 environmental sensor

  • Module: Volatile organic compound (VOC), temperature, humidity and barometer sensor
  • Embedded chip: BME680
  • Technology: MEMS
  • Input voltage range: 3.3 V to 5.5 V
  • Current consumption: 5 mA (25 mA for VOC measurement)
  • Communication interface: I2C bus / SPI
    • I2C bus: 3.3 V / 5 V support
    • SPI bus: 3.3 V support only
  • I2C interface address: 0x76
  • Temperature measurement range: from -40°C to 85°C
  • Accuracy of measurement: +/- 1°C (from 0°C to 65°C)
  • Humidity measurement range: 0% to 100% RH
  • Measuring accuracy: +/- 3% RH (ranges from 20% to 80% RH at 25°C)
  • Measuring range for atmospheric pressure: 300 hPa to 1100 hPa
  • Measuring accuracy: +/- 0.6 hPa (over the range from 300 hPa to 1100 hPa at temperature from 0°C to 65°C)
  • IAQ (indoor air quality) range: 0 to 500 ( the higher the score the worse the air quality)
  • Module dimensions: 18 x 15.6 mm

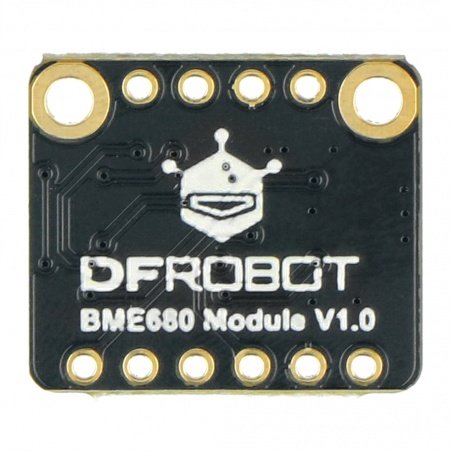

Czujnik z wbudowanym układem BME680.Sensor with integrated BME680 chip.
Zestaw zawiera dedykowane złącza goldpin przeznaczone do samodzielnego przylutowania.

Kit contains dedicated goldpin connectors for self-soldering.

Kit contents

  • BME680 4in1 environmental sensor
  • Goldpin socket strip 1x4 - 2,54 mm pitch
  • Goldpin strip 1x6 - 2,54 mm pitch

In our assortment you will also find otherenvironmental sensors. We invite you to familiarize with the offer.

Interface SPI / I2C
Sensor - type temperature, humidity, pressure
Sensor - type air quality
Sensor - Temperature to 85 °C
Sensor - Temperature accuracy +/- 1 °C
Sensor - Temperature from -40 °C - 120 °C
